GV150 A2 (GV150) - Honda Engine, Made in Japan (SN: GV150-2000001 - GV150-2041727) FUEL TANK (3) Parts Diagram

Engine, Made in Japan

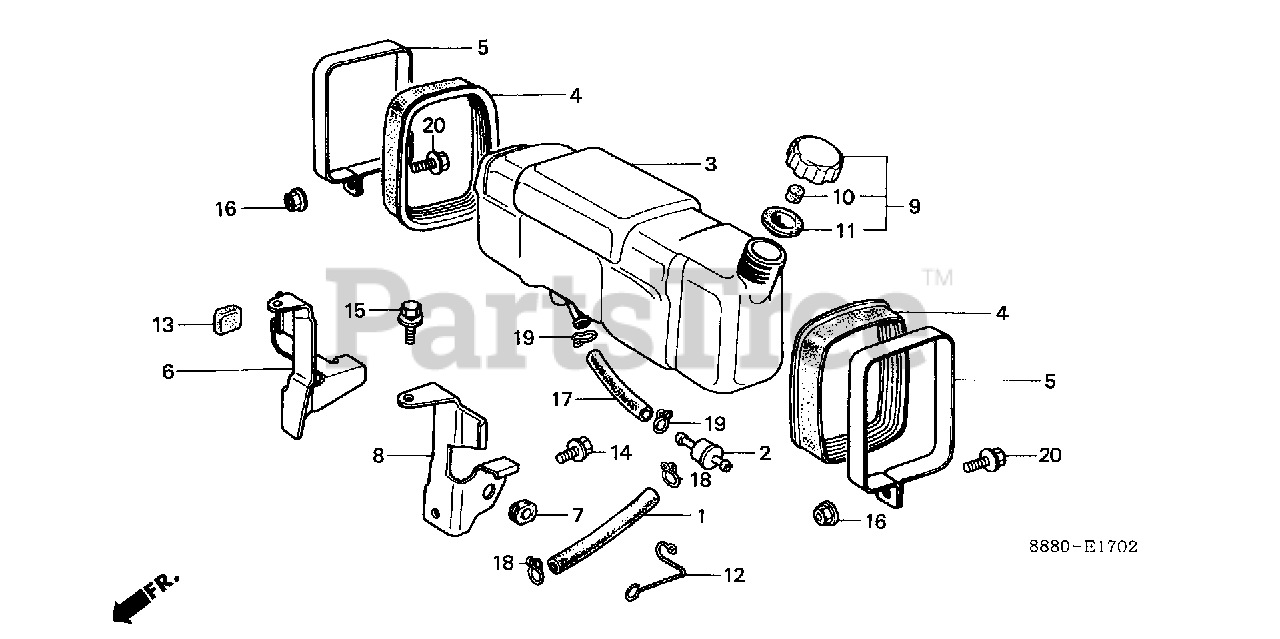

FUEL TANK (3) Parts Diagram

  • Title

1

Honda 16222-888-670

TUBE, FUEL (4.5X120) (NOT AVAILABLE)

Note: Use up to Engine SN 2043167.

$

$

Currently unavailable

1

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X120)

Note: Use from Engine SN 2043168.

$86.99

$

In Stock, only 1 left!

0

2

Honda 16952-952-003

FILTER, FUEL

Note: Use from Engine SN 2003504.

$18.99

$

Usually ships in 3-6 days

0

3

Honda 17500-879-670ZA

SEE PART DETAILS - PRI; TANK, FUEL

$

$

Not available

4

Honda 17515-879-670

RUBBER, TANK SEAT

$

$

Not available

5

Honda 17518-879-670

BAND, FUEL TANK

$27.99

$

Usually ships in 3-6 days

0

6

Honda 17521-888-670

STAY A, TANK

$33.99

$

Usually ships in 3-6 days

0

7

Honda 17523-888-670

GROMMET, FUEL TUBE

$

$

Not available

8

Honda 17525-888-671

STAY B, TANK

$33.99

$

Usually ships in 3-6 days

0

9

Honda 17620-888-000

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-888-020)

$

$

Not available

9

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$

$

Not available

10

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

11

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$

$

Not available

12

Honda 30564-883-630

CLAMP, IGNITION WIRE

$

$

Not available

13

Honda 36058-657-003

RUBBER, CUSHION (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

15

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

$2.49

$

In Stock, Qty 5

0

15

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10)
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X95)

Note: Use up to Engine SN 2043167.

$73.99

$

Usually ships in 3-6 days

0

17

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X110)

Note: Use from Engine SN 2043168.

$73.99

$

Usually ships in 3-6 days

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 2043167.

$2.49

$

In Stock, Qty 20+

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 2043168.

$2.49

$

In Stock, Qty 20+

0

19

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 2043167.

$2.99

$

In Stock, Qty 17

0

19

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 2043168.

$2.99

$

In Stock, Qty 17

0

20

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

20

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 9

0
