GV150 A2 (GV150) - Honda Engine, Made in Japan (SN: GV150-2000001 - GV150-2041727) CYLINDER + OIL PAN Parts Diagram

Engine, Made in Japan

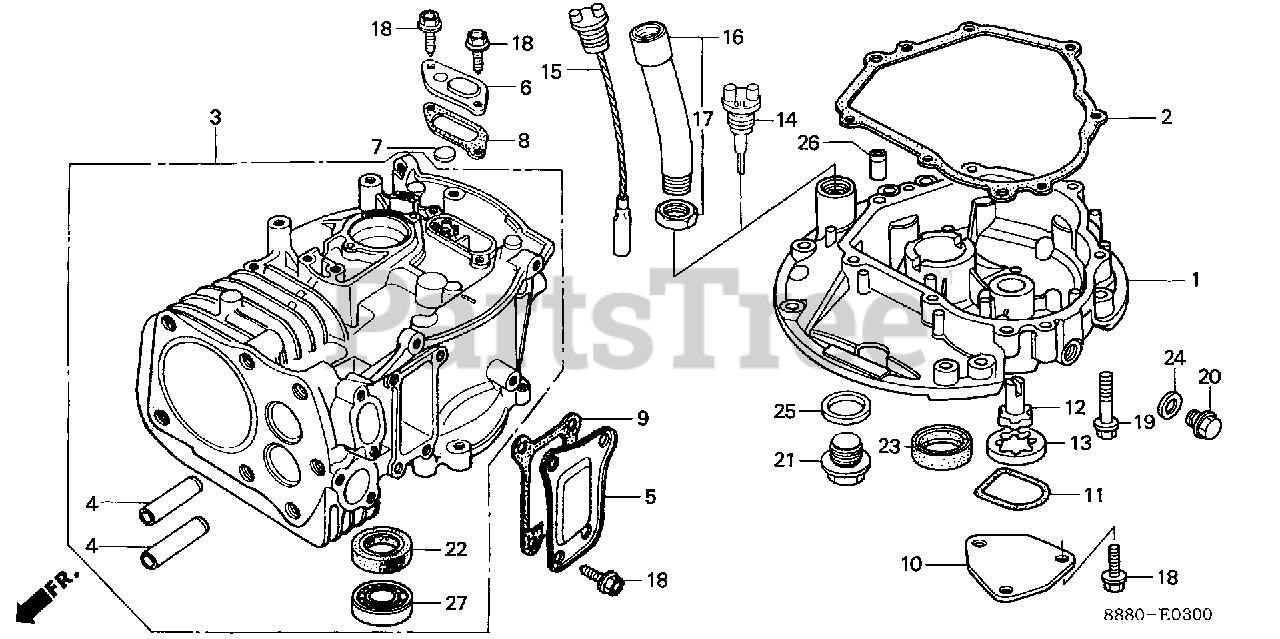

CYLINDER + OIL PAN Parts Diagram

  • Title

1

Honda 11310-888-000

PAN, OIL

Note: Use up to Engine SN 2025877.

$

$

Currently unavailable

1

Honda 11310-888-010

PAN, OIL (NOT AVAILABLE)

Note: Use from Engine SN 2025878.

$

$

Not available

2

Honda 11381-888-306

GASKET, OIL PAN

$13.99

$

Usually ships in 3-6 days

0

3

Honda 12000-888-305

CYLINDER ASSY.

Note: Use up to Engine SN 2007645.

$

$

Currently unavailable

3

Honda 12000-888-315

CYLINDER ASSY.

Note: Use from Engine SN 2007646 to 2022484.

$

$

Currently unavailable

3

Honda 12000-888-325

CYLINDER ASSY.

Note: Use from Engine SN 2022485 to 2054189.

$

$

Currently unavailable

3

Honda 12000-888-335

CYLINDER ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 2054190.

$

$

Currently unavailable

4

Honda 12133-887-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$20.99

$

Usually ships in 3-6 days

0

4

Honda 12134-887-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)

$20.99

$

Usually ships in 3-6 days

0

5

Honda 12361-888-000

COVER, TAPPET ROOM

$13.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER

$13.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER

$2.49

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP

$2.99

$

In Stock, only 1 left!

0

9

Honda 12375-888-000

GASKET, TAPPET COVER

$3.49

$

Usually ships in 3-6 days

0

10

Honda 15130-888-000

COVER, OIL PUMP

$

$

Not available

11

Honda 15131-888-000

O-RING, PUMP COVER

$

$

Not available

12

Honda 15330-888-000

ROTOR (INNER)

$

$

Currently unavailable

13

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

15

Honda 15620-888-671

CAP, OIL FILLER

$19.99

$

Usually ships in 3-6 days

0

16

Honda 15630-888-670

PIPE, OIL FILLER (NOT AVAILABLE)

$32.99

$

Usually ships in 3-6 days

0

17

Honda 90011-883-630

NUT, OIL FILLER

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

19

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

20

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

Note: Use from Engine SN 2025878.

$

$

Not available

20

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

Note: Use from Engine SN 2025878.

$4.99

$

In Stock, only 2 left!

0

21

Honda 90131-888-010

BOLT, OIL DRAIN

$

$

Not available

22

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 7

0

22

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 7

0

23

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$4.99

$

In Stock, Qty 7

0

23

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

24

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: Use from Engine SN 2025878.

$1.49

$

In Stock, only 4 left!

0

25

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

27

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$24.99

$

Usually ships in 3-6 days

0
