GV150 A2 (GV150) - Honda Engine, Made in Japan (SN: GV150-2000001 - GV150-2041727) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

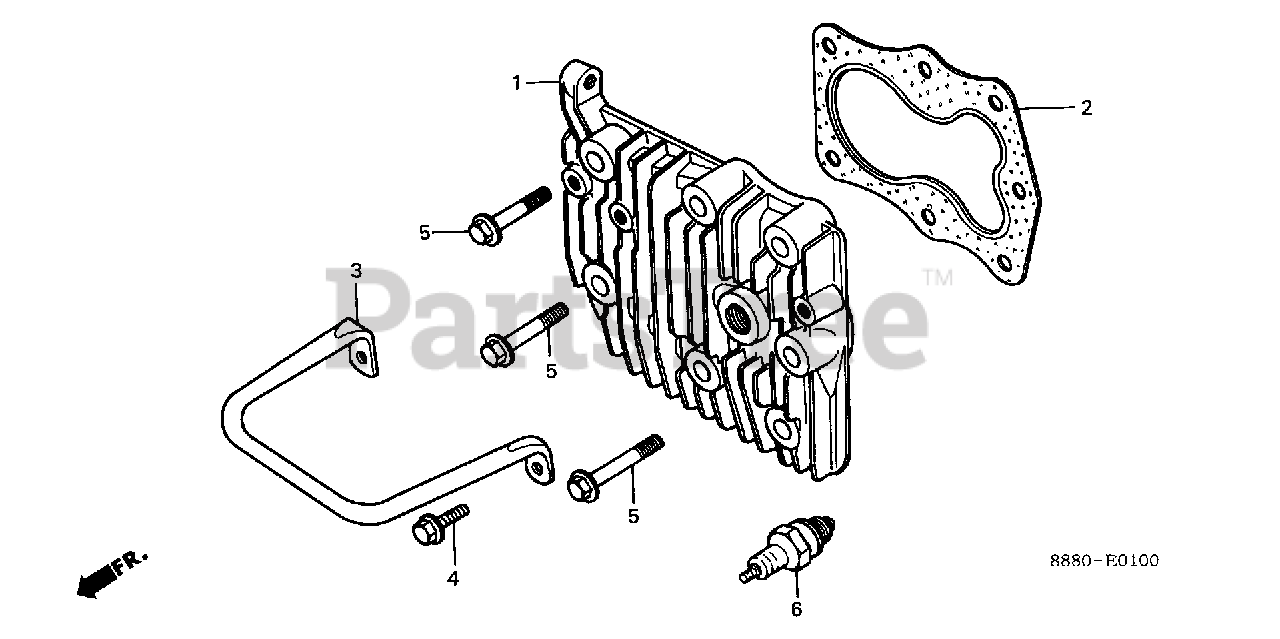

CYLINDER HEAD Parts Diagram

  • Title
1

Honda 12221-888-305

SEE PART DETAILS - PRI; CYLINDER HEAD (NOT AVAILABLE)

Note: Use up to Engine SN 2029058.

$

$

Not available

1

Honda 12221-888-315

CYLINDER HEAD

Note: Use from Engine SN 2029059.

$48.99

$

Usually ships in 3-6 days

0

2

Honda 12281-888-306

GASKET, CYLINDER HEAD

$

$

Not available

3

Honda 19671-888-810

GUARD, PLUG Use up to Engine SN 2029058.

$

$

Not available

3

Honda 19671-888-811

GUARD, PLUG

Note: Use from Engine SN 2029059.

$34.99

$

Usually ships in 3-6 days

0

4

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

5

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 4 left!

0

5

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, only 4 left!

0

6

Honda 98073-56744

SPARK PLUG (BMR6A) (NGK)

Note: Use from Engine SN 2029059.

$3.49

$

In Stock, Qty 17

0

6

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

Note: Use up to Engine SN 2029058.

$3.49

$

In Stock, Qty 10

0
