GTX 2154 LE (14W-3GEC010) - Cub Cadet 54" Garden Tractor (2011) Hood Assembly - GTX2154LE Parts Diagram

54" Garden Tractor

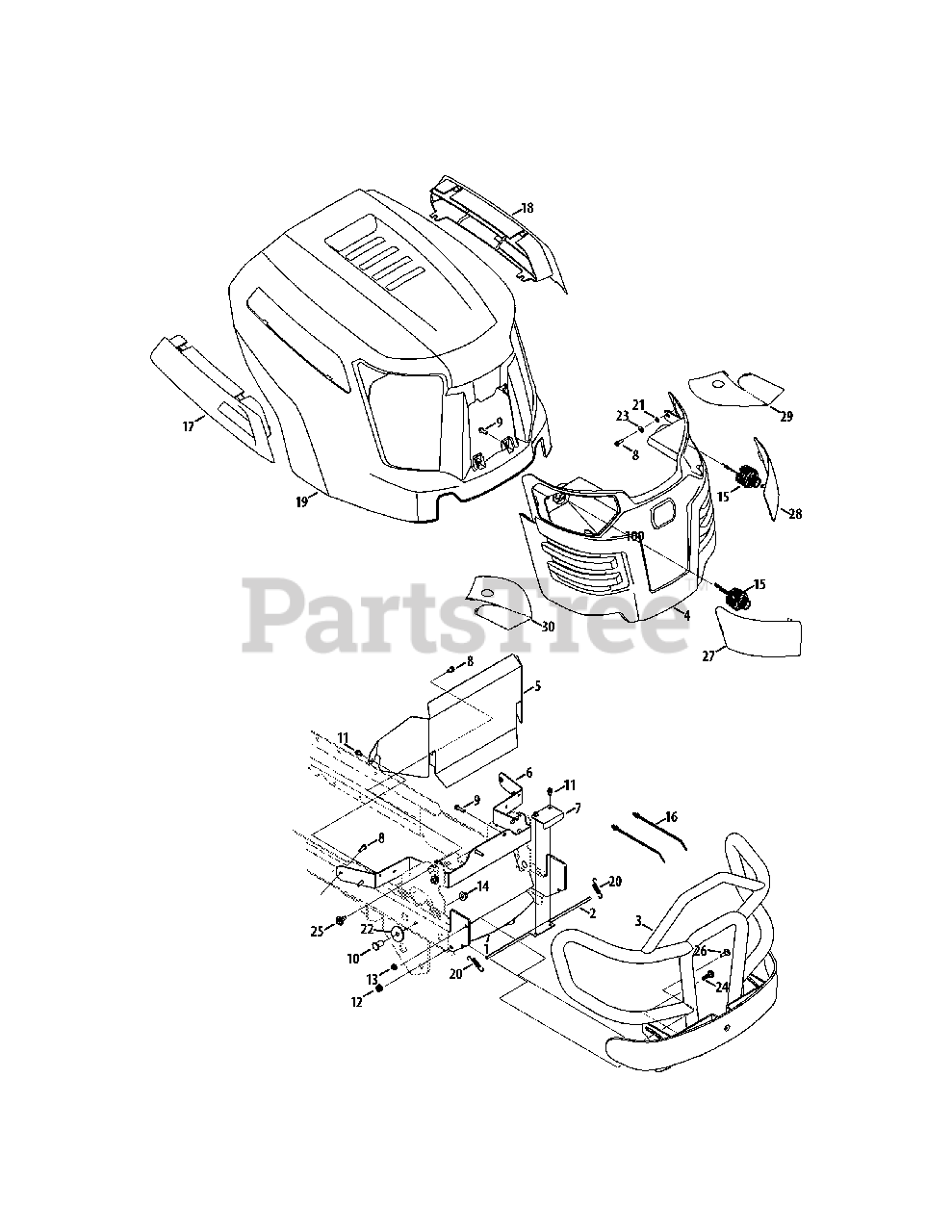

Hood Assembly - GTX2154LE Parts Diagram

  • Title

1

Cub Cadet 603-04855-0637

Brush Guard Assembly
(Superseded to 603-04855A-0637)

$

$

Not available

2

Cub Cadet 603-04864

Brush Guard Tilt Lever Assembly

Variations

Cub Cadet 603-04864-0637

ROD-TILT RELEASE - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04865-0637

Brush Guard Tilt Bumper Assembly
(Superseded to 603-04865A-0637)

$

$

Not available

4

Cub Cadet 931-04563

Grill
(Superseded to 931-04563A)

Note: (Incl. Ref. 4, 27-30)

$115.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08175

Heat Shield

$

$

Not available

6

Cub Cadet 703-08237A-0637

Hood Pivot Bracket

$45.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08311

Brush Guard Tilt Lever Bracket

$

$

Not available

8

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 925-05239

LED Headlight Socket
(Superseded to 925-06095A)

$52.99

$

In Stock, only 1 left!

0

16

Cub Cadet 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 931-06542A

RH Hood Scoop
(Superseded to 931-06542B)

$

$

Not available

18

Cub Cadet 931-06543A

LH Hood Scoop
(Superseded to 931-06543B)

$52.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 931-08149

GT LE Hood

$690.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-08787A-0637

Brace, Hood Cross

Note: (Not shown)

$16.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 932-0611

Extension Spring, .38 x 3.6

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0222

Lock Washer, 1/4
(Superseded to 736-0222)

$

$

Not available

22

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

23

Cub Cadet 936-3020

Flat Washer, .271 x .630 x .065
(Superseded to 736-3020)

$

$

Not available

24

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 738-04091A

Shoulder Screw, 5/16-18 x .43 x .29

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-1023

Shoulder Screw, 1/4-20 x .375 x .280
(Superseded to 738-1023A)

$4.49

$

In Stock, Qty 5

0

27

Cub Cadet 931-07878

RH Hood Lens

$17.99

$

In Stock, only 1 left!

0

28

Cub Cadet 931-07879

LH Hood Lens

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet 777X44662

Left Lens Reflector Label

$13.99

$

In Stock, only 1 left!

0

30

Cub Cadet 777X44663

Right Lens Reflector Label

$13.99

$

In Stock, only 2 left!

0
