GTX 2100 (14Y-3GE-010) - Cub Cadet Garden Tractor (2011) Steering Assembly - Power Parts Diagram

Garden Tractor

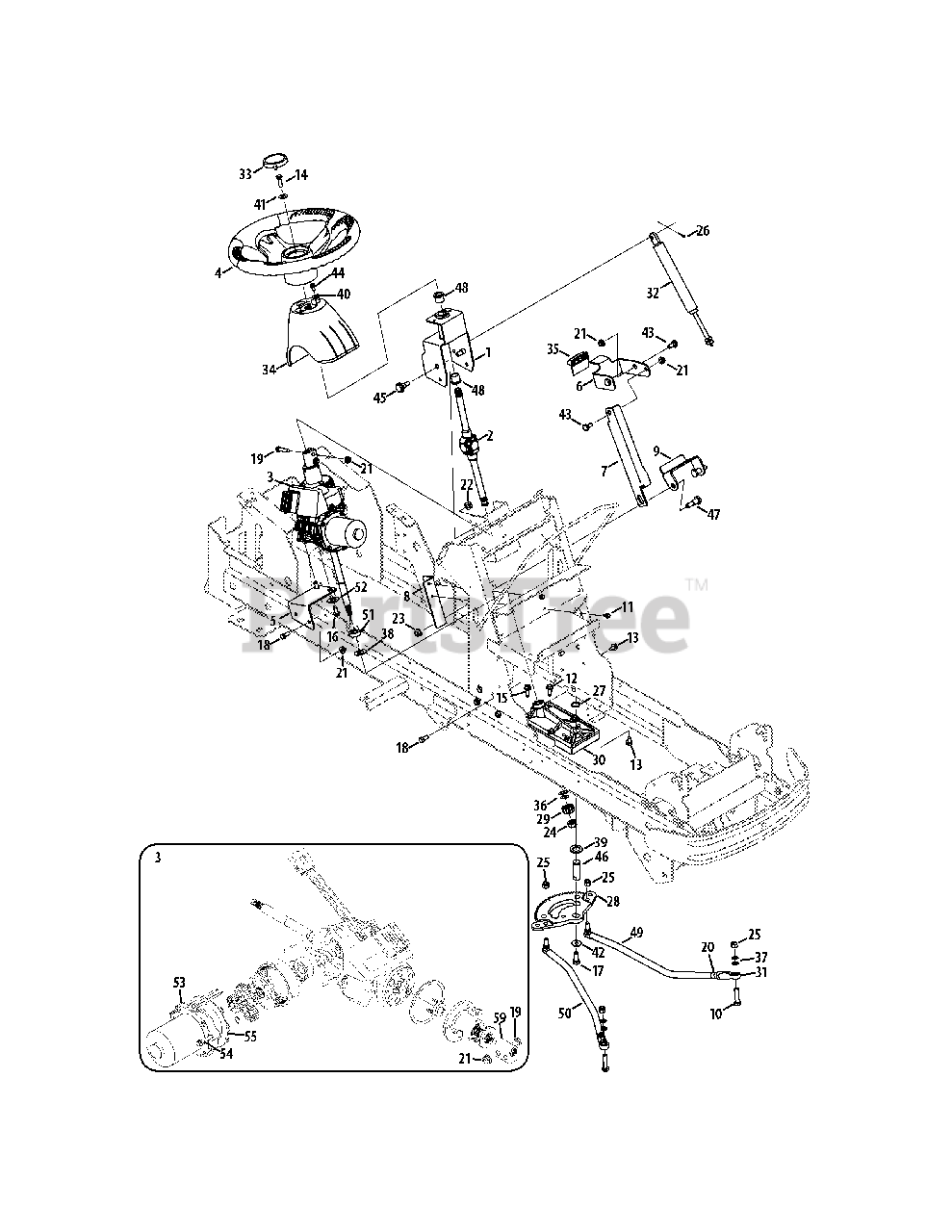

Steering Assembly - Power Parts Diagram

  • Title

1

Cub Cadet 603-04852-0637

Upper Steering Support Bracket
(Superseded to 603-04852C-0637)

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet 617-04096

Power Steering Assembly
(Superseded to 617-04096A)

$275.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-04979

Transmission Assembly
(Superseded to 759-05542)

$1298.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-04556

Steering Wheel
(Superseded to 631-04556A)

$95.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08006A-0637

Power Steering Mount Box

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08105A-0637

Tilt Steering Lever Bracket

$29.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08114A-0637

Tilt Steering Bracket

$31.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08180-0637

Tilt Steering Mount Bracket

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08505

Tilt Steering Pivot Bracket

$29.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0539

Hex Screw, 3/8-24 x 1.75

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0643

Hex Lock Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

16

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1880

Hex Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

18

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3083

Hex Screw, 5/16-18 x 1.375

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 912-3061

Hex Lock Nut, 3/8-24
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 14

0

26

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.49

$

In Stock, Qty 17

0

27

Cub Cadet 916-0101

Snap Ring, .750
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 717-04870A

Segment Gear
(Superseded to 717-04870B)

$110.99

$

In Stock, only 1 left!

0

29

Cub Cadet 717-04918

Pinion Gear
(Superseded to 717-04943)

$63.99

$

In Stock, only 1 left!

0

30

Cub Cadet 919-04200B

Steering Housing

$154.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 723-04089

End Rod, 7/16-20 x 3/8

$40.99

$

In Stock, Qty 11

0

32

Cub Cadet 927-04320

Locking Damper Cylinder

$72.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-04039

Cap

$8.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-07815

Dash Collar
(Superseded to 731-07815A)

$25.99

$

In Stock, only 1 left!

0

35

Cub Cadet 731-3224

Tilt Lever

$11.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0108

Flat Washer, .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

37

Cub Cadet 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

38

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-3078

Flat Washer, .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 938-0140

Shoulder Screw, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

44

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.500

$6.99

$

In Stock, Qty 5

0

45

Cub Cadet 738-04484

Shoulder Bolt, 3/8-16 x .49 x .33

$7.99

$

In Stock, only 1 left!

0

46

Cub Cadet 738-04485

Steering Shaft

$27.99

$

In Stock, only 1 left!

0

47

Cub Cadet 738-04495

Shoulder Screw, 3/8-16 x .50 x .66

$17.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 941-0353

Flange Bearing, .630
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

49

Cub Cadet 747-05424

LH Drag Link, 5/8
(Superseded to 747-05424A)

$59.99

$

In Stock, Qty 6

0

50

Cub Cadet 747-05425

RH Drag Link, 5/8
(Superseded to 747-05425A)

$59.99

$

In Stock, Qty 18

0

51

Cub Cadet 748-04269

Ring Spacer Hub

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-3078

Flat Washer, .344 x 1.000 x .063

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 724-04097

Electric Motor
(Superseded to 924-04097)

$251.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-0809

Hex Washer Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 17

0

55

Cub Cadet 721-04431

Motor Gasket

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 748-04240

Steering Shaft Coupler

$27.99

$

Usually ships in 3-6 days

0
