GTX 2100 (14Y-3GE-010) - Cub Cadet Garden Tractor (2011) Kohler CH680-3034 Oil Pan & Lubrication Parts Diagram

Garden Tractor

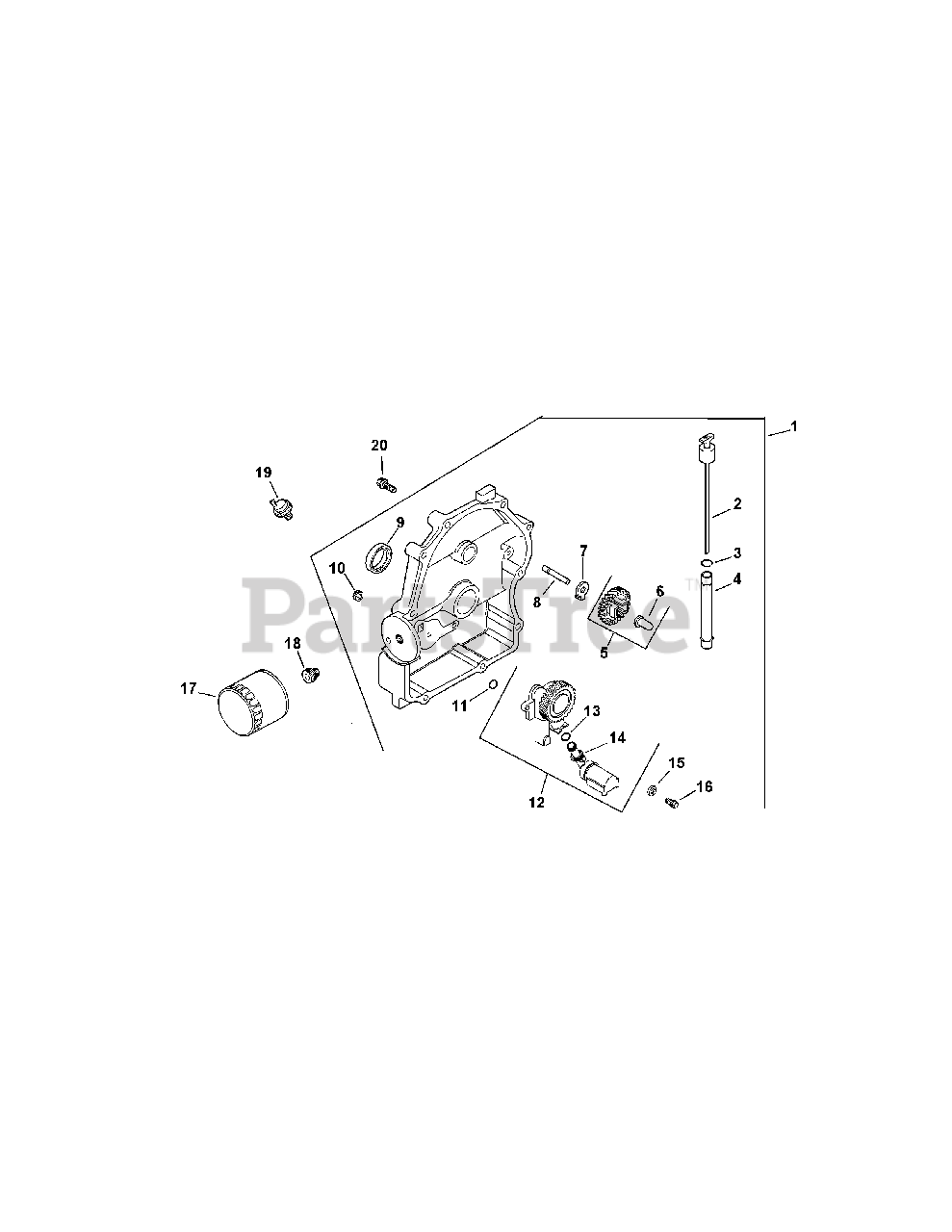

Kohler CH680-3034 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-98-S

KIT, CLOSURE PLATE ASSEMBLY
(Superseded to KH-24-009-219-S)

Note: (includes 2-15)

$609.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-038-08-S

DIPSTICK

$33.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-41-153-01

O-RING

$

$

Not available

4

Cub Cadet KH-24-123-11-S

KIT, OIL FILL TUBE - METAL

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-043-12

KIT, GOVERNOR GEAR W/PIN

Note: (includes 6)

$

$

Not available

6

Cub Cadet KH-12-380-01

PIN, GOVERNOR REGULATING

$

$

Not available

7

Cub Cadet KH-24-448-02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-12-144-02

SHAFT, GOVERNOR GEAR

$

$

Not available

9

Cub Cadet KH-25-032-06-S

OIL SEAL

$10.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-25-139-60-S

PLUG, CTSK PIPE 1/8''

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-153-08

O-RING

$

$

Not available

12

Cub Cadet KH-24-393-51-S

KIT, OIL PUMP ASSEMBLY
(Superseded to KH-24-393-53-S)

Note: (includes 13,14)

$

$

Not available

13

Cub Cadet KH-24-153-01

O-RING, OIL PICK-UP

$

$

Not available

14

Cub Cadet KH-24-381-04

PICK-UP, OIL

$

$

Not available

15

Cub Cadet KH-M-631005

WASHER, FLAT 6 MM

$

$

Not available

16

Cub Cadet KH-M-645025-S

SCREW, FLG THD FRM M6X1.0X25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-050-01-S

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-136-01

NIPPLE, OIL FILTER
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-099-27-S

SWITCH, OIL PRESSURE

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-086-17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0
