GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2013) Kohler CH680-3072 Fuel System Parts Diagram

Garden Tractor

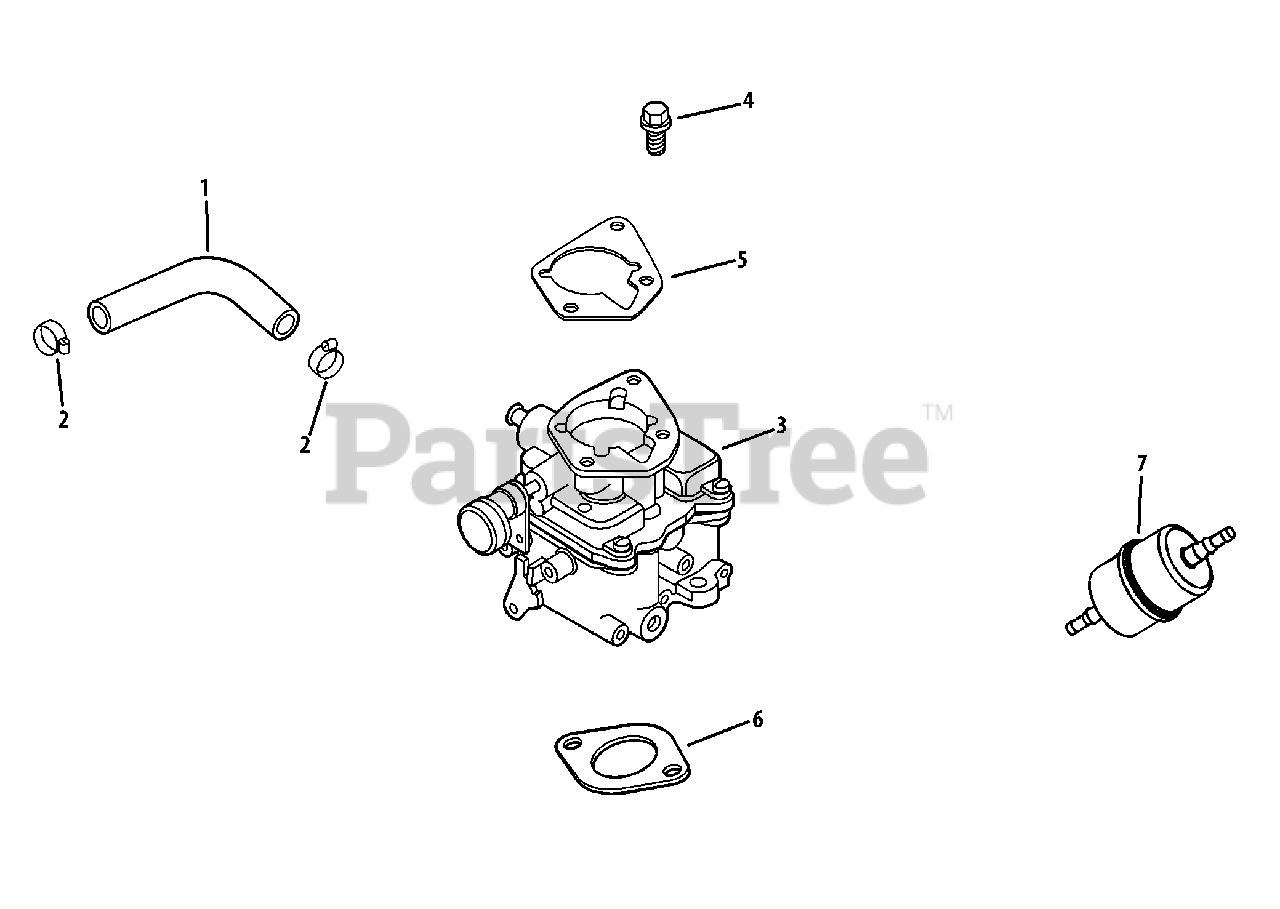

Kohler CH680-3072 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-81-S

Low Permeation Fuel Hose, 24"

$17.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-25-237-31-S

Hose Clamp (KM)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-59-S

Carburetor w/ Gaskets
(Superseded to KH-24-853-311-S)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-086-124-S

Flange Screw, M6 x 1.0 x 25

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-041-06

Air Cleaner Base Gasket

$2.99

$

In Stock, Qty 19

0

6

Cub Cadet KH-24-041-17

Carburetor Gasket

$

$

Not available

7

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1/4

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-518-24-S

Ground Lead

Note: (not shown)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-01

Kit, Repair Solenoid

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Repair Float

Note: (not shown)

$133.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, Repair Carburetor

Note: (not shown)

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Repair Choke

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude (4,000 - 8,000 FT)

Note: (not shown)

$55.99

$

Usually ships in 2-5 days

0
