GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Kohler CH680-3034 Oil Pan & Lubrication Parts Diagram

Garden Tractor

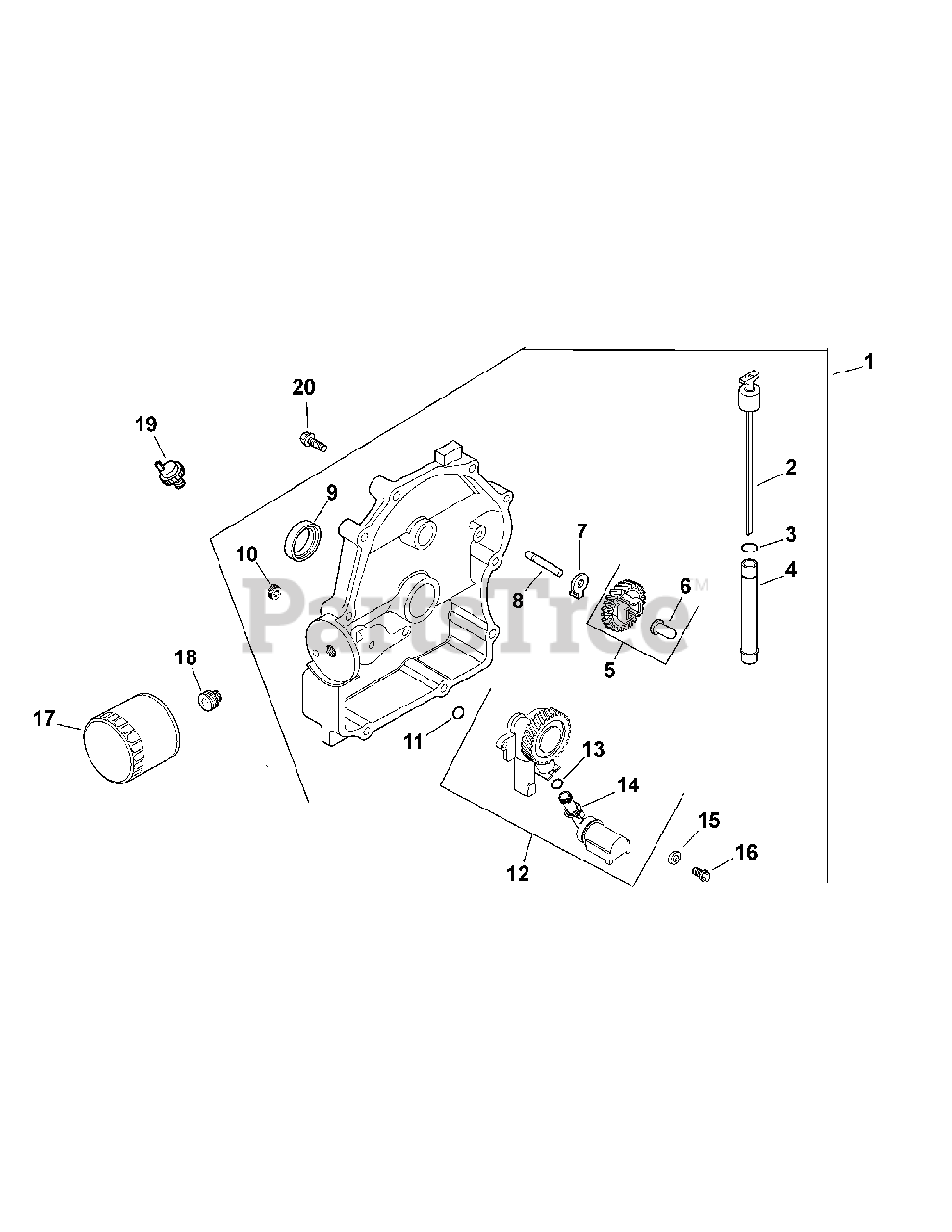

Kohler CH680-3034 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-009-98-S

Kit, Closure Plate Ass’y (Inc. 2-15)
(Superseded to KH-24-009-219-S)

$609.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-038-08-S

Dipstick

$33.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-41-153-01

O-Ring

$

$

Not available

4

Cub Cadet KH-24-123-11-S

Kit, Oil Fill Tube

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-043-12

Kit, Governor Gear w/ Pin (Inc. 6)

$

$

Not available

6

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

7

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

9

Cub Cadet KH-25-032-06-S

Seal, Oil

$10.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-25-139-60-S

Plug, Pipe CTSK 1/8"

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

12

Cub Cadet KH-24-393-53-S

Kit, Oil Pump Assembly (Inc. 13, 14)

$

$

Not available

13

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

14

Cub Cadet KH-24-381-04

Pick-Up, Oil

$

$

Not available

15

Cub Cadet KH-M-631005

Washer, Flat 6MM

$

$

Not available

16

Cub Cadet KH-M-645025-S

Screw, Flg Thd Frm M6X1.0X25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-12-050-01-S

Filter, Oil

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-136-01

Nipple, Oil Filter
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 5

0

20

Cub Cadet KH-24-086-17-S

Screw, Flg M8x1.25x45

$2.49

$

In Stock, Qty 5

0
