GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Kohler CH680-3034 Engine Controls Parts Diagram

Garden Tractor

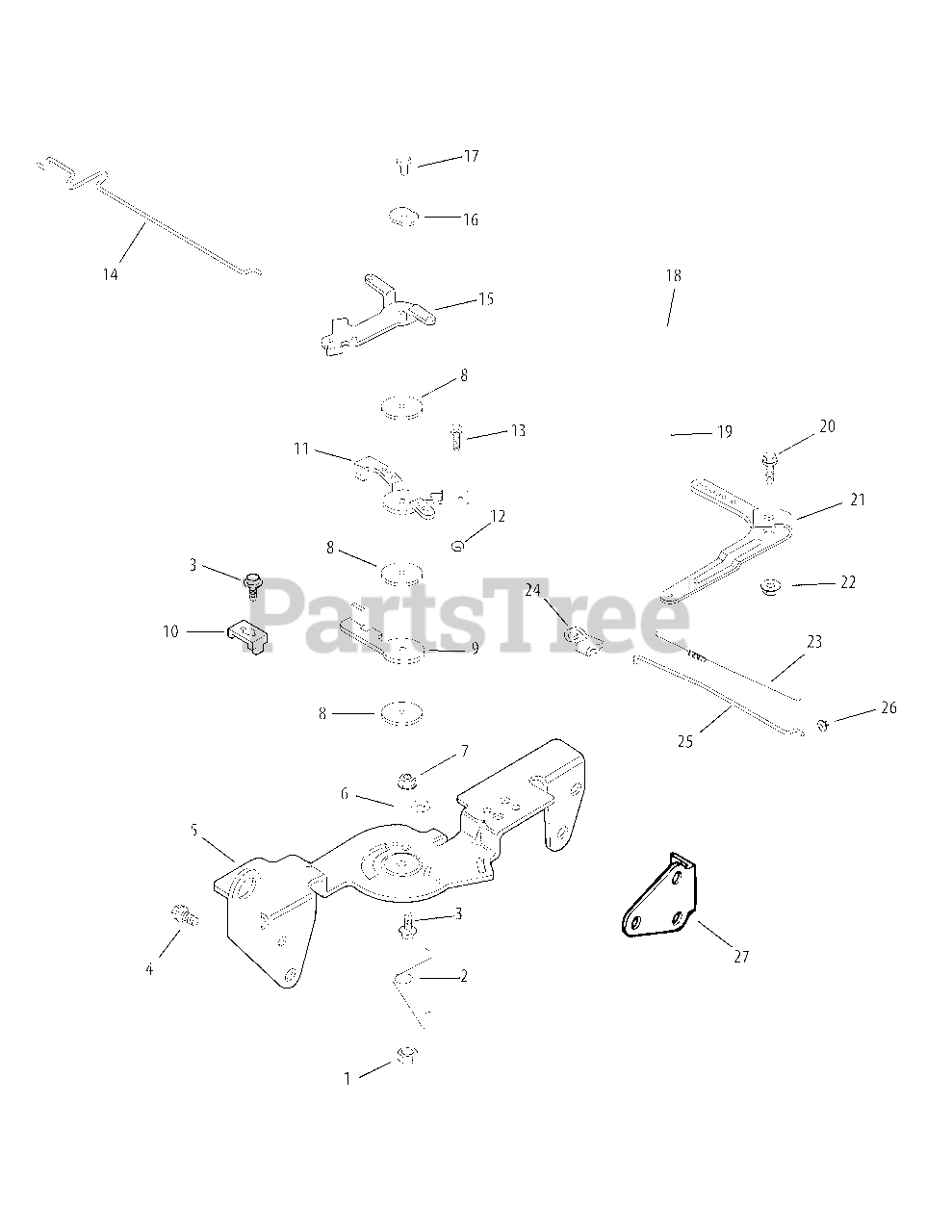

Kohler CH680-3034 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-M-547050-S

Nut, Lock M5X.8

$2.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

3

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 15

0

5

Cub Cadet KH-24-126-176-S

Bracket, Control

$

$

Not available

6

Cub Cadet KH-X-20-1

Washer, Spring Lock 1/4"

Note: NLA - Order From Kohler

$

$

Not available

7

Cub Cadet KH-M-541050-S

Nut, Flg M5x.8

$2.99

$

In Stock, Qty 10

0

8

Cub Cadet KH-24-468-01

Washer, Flat 5.5 MM

$

$

Not available

9

Cub Cadet KH-24-090-07

Lever Throttle Actuator
(Superseded to KH-24-090-65-S)

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-090-13

Lever Throttle Control

$

$

Not available

12

$2.49

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-401030

Screw, Cap M4X0.7X30

$

$

Not available

14

Cub Cadet KH-24-079-21-S

Linkage, Choke

$

$

Not available

15

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

16

Cub Cadet KH-41-468-03

Washer, Spring 1/4"

$

$

Not available

17

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X0.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

18

Cub Cadet KH-24-089-51-S

Spring, Throttle Limiter

$4.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-089-48-S

Spring, Governor

$8.99

$

In Stock, Qty 9

0

20

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6X1.0X25

$2.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

22

Cub Cadet KH-M-641060-S

Nut, Flg M6x1.0

$4.49

$

In Stock, Qty 11

0

23

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

24

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

26

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

$21.99

$

Usually ships in 2-5 days

0
