GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Kohler CH680-3034 Crankcase Parts Diagram

Garden Tractor

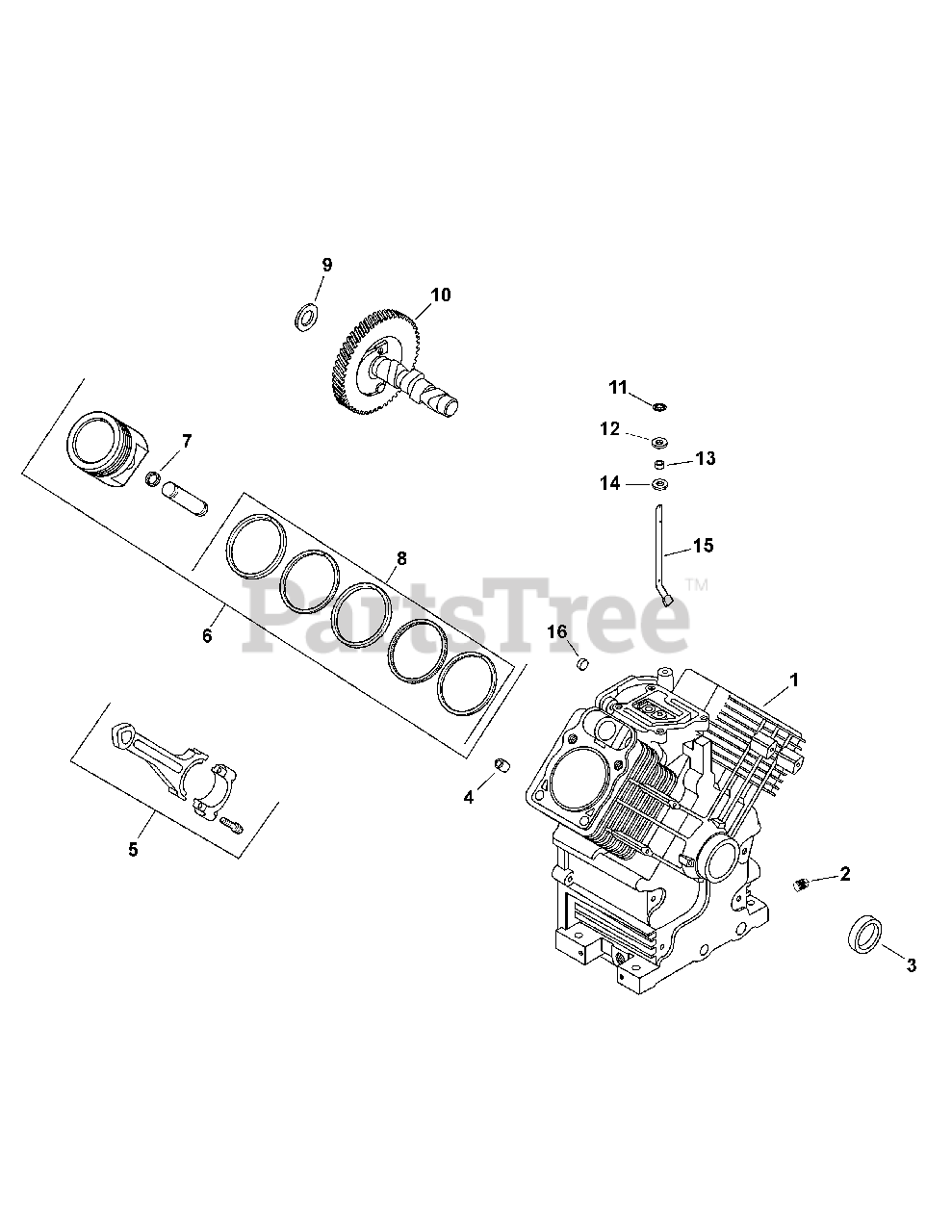

Kohler CH680-3034 Crankcase Parts Diagram

  • Title

1

Cub Cadet n/a

Crankcase

Note: (Use Miniblock )

$

$

Currently unavailable

1

Cub Cadet KH-24-782-27

Miniblock

Note: Not shown

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, Pipe 3/8"

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-032-19-S

Seal, Oil

$7.49

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-28-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 9

0

5

Cub Cadet KH-24-067-29-S

Connecting Rod (.25)
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-42-S

Kit, Piston w/ Ring (STD) (Includes 7, 8)
(Superseded to KH-24-874-54-S)

$250.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-874-43-S

Kit, Piston w/ Ring (.08)

$

$

Not available

6

Cub Cadet KH-24-874-44-S

Kit, Piston w/ Ring (.25)
(Superseded to KH-24-874-56-S)

$289.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-45-S

Kit, Piston w/ Ring (.50)

$289.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 5

0

8

Cub Cadet KH-24-108-18-S

Ring Set, Piston (STD)

$

$

Not available

9

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow .034")

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue .03")

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red .032")

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green .036")

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray .038")

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black .04")

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Kit, Camshaft
(Superseded to KH-24-012-23-S)

Note: (Inc. KH-25-357-14-S & KH-12-422-08-S)

$164.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-931010-S

Washer, Flat 9MM

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

14

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32"

$2.49

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

Cub Cadet KH-CH680-3034

Complete Engine
(Superseded to KH-CH680-3107)

Note: Not shown

$3551.99

$

Usually ships in 3-6 days

0
