GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2011) Deck Lift - Electric Parts Diagram

Garden Tractor

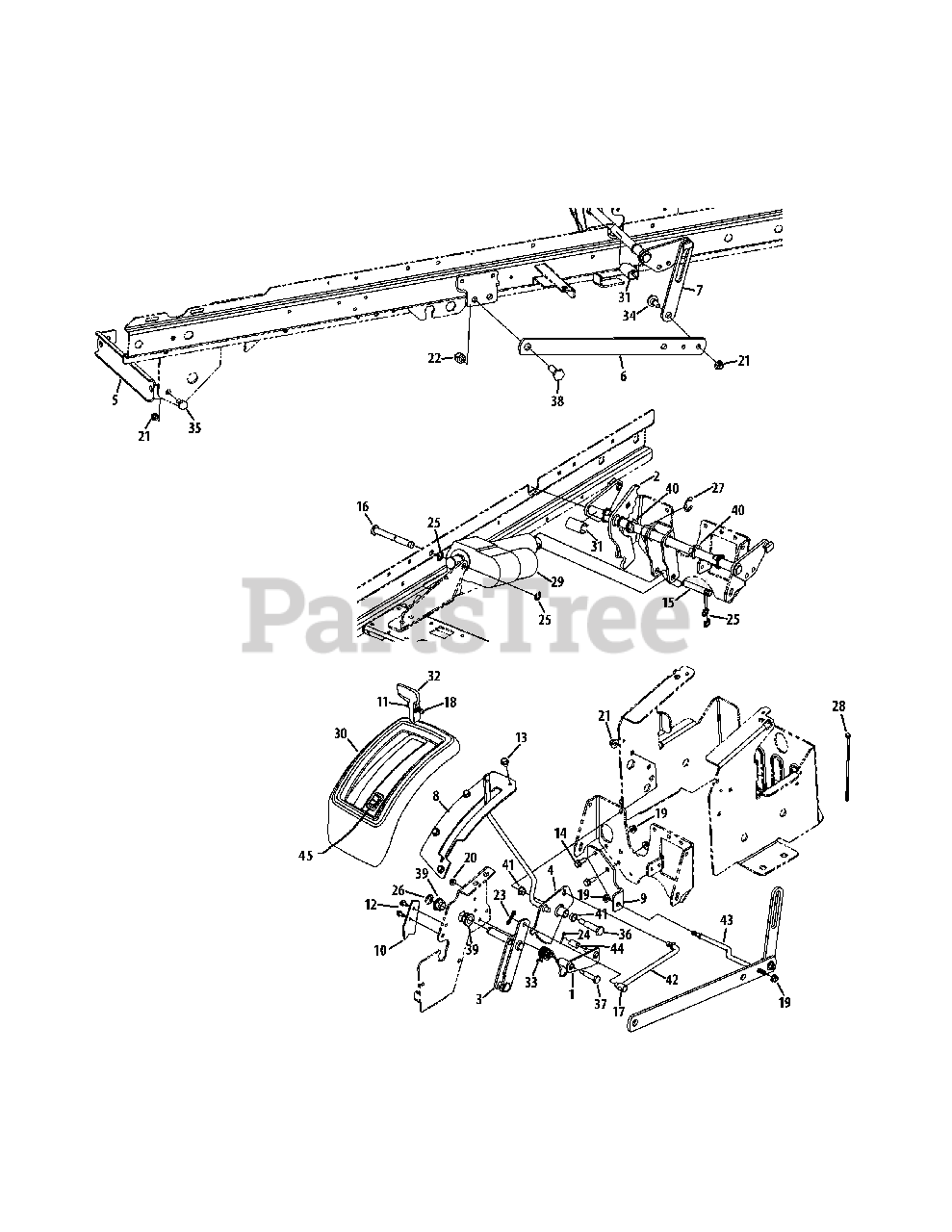

Deck Lift - Electric Parts Diagram

  • Title
1

Cub Cadet 603-04827

Hub Lift Assembly

$37.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04836

Electric Shift Assembly

$177.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04837A

Deck Height Adjustment Weldment

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04861

Lift Lever Bracket Assembly
(Superseded to 603E04861)

$68.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07954A-0637

Front Hanger Bracket

$31.99

$

In Stock, Qty 5

0

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08245A-0637

Lift Link Plate
(Superseded to 703-08245B-0637)

$14.99

$

Usually ships in 3-6 days

0

8

$47.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08474-0637

Sway Bar Mount Bracket

$20.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08485-0637

Bearing Stop Plate

$9.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0425

Machine Screw, #10-24 x .625

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-05489

PIN, .50 x 3.5

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-05501A

Clevis Pin, .50 x 4.0

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

18

Cub Cadet 712-0161

Hex Lock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

24

Cub Cadet 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

25

Cub Cadet 916-0104

E-Ring, .500

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

27

Cub Cadet 716-0136

E-Ring, .875

$8.99

$

In Stock, Qty 18

0

28

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-04500

Lift Actuator

$1473.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-07913

Lift Cover

$25.99

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-08170

Electric Lift Knob

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 738-04428

Shoulder Screw, 3/8-16 x .562 x .360

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 738-0234

Shoulder Screw, 1/2 x .29

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 938-0560

Shoulder Screw, .374 x 1.375

$10.99

$

In Stock, only 1 left!

0

38

Cub Cadet 938-0744A

Shoulder Screw, 1/2-13 x .625 x .36

$11.99

$

In Stock, only 4 left!

0

39

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

40

Cub Cadet 741-04504

Hex Flange Bearing, .78

$8.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 741-0491

Flange Bearing, .500 x .34

$5.49

$

In Stock, only 3 left!

0

42

Cub Cadet 747-05456

Electric Lift Rod Adjuster

$44.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-05462

Anti-Sway Deck Rod

$33.99

$

In Stock, only 1 left!

0

44

Cub Cadet 750-05505A

Spacer, .35 x .5 x .851

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 725-04704

Lift Switch

$65.99

$

In Stock, only 1 left!

0

Cub Cadet 925-05190A

Electric Deck Lift Harness

Note: (Not shown)

$180.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-1543

30 Amp Fuse

Note: (Not shown)

$4.49

$

Usually ships in 3-6 days

0
