GTX 2000 (14W-3FM-210) - Cub Cadet Garden Tractor (2013) Kohler CH640-3099 Fuel System Parts Diagram

Garden Tractor

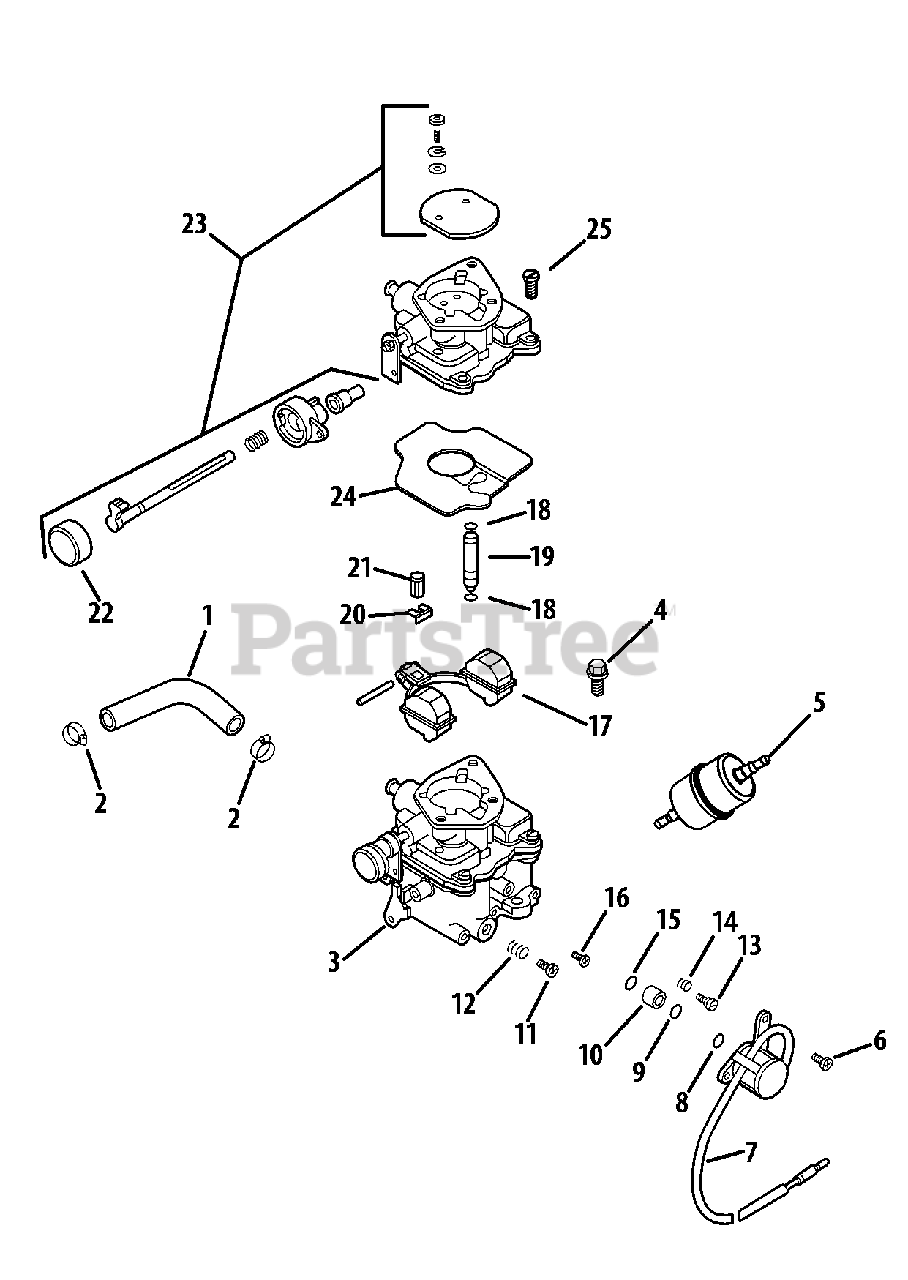

Kohler CH640-3099 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-81-S

Low Permeation Fuel Hose, 24"

$17.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-25-237-31-S

Hose Clamp (KM)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-32

Carburetor Kit w/ Gaskets
(Superseded to KH-24-853-309-S)

$339.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-086-124-S

Flange Screw, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-086-07

Solenoid Screw

$

$

Not available

7

Cub Cadet KH-24-435-01-S

Solenoid Assembly

$217.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-153-04

Solenoid O-Ring

$

$

Not available

9

Cub Cadet KH-24-153-05

Solenoid O-Ring

$

$

Not available

10

Cub Cadet KH-24-521-01

Solenoid Seat

$

$

Not available

11

Cub Cadet KH-24-086-10

Idle Screw

$

$

Not available

12

Cub Cadet KH-24-089-10

Idle Speed Adjustment Screw Spring

$

$

Not available

13

Cub Cadet KH-24-368-01

Idle Needle

$

$

Not available

14

Cub Cadet KH-24-089-11

Idle Needle Spring

$

$

Not available

15

Cub Cadet KH-24-153-06

Solenoid O-Ring

$

$

Not available

15

Cub Cadet KH-24-153-03

Main Jet Screw O-Ring

$

$

Not available

16

Cub Cadet KH-24-337-02

Main Jet

$

$

Not available

16

Cub Cadet KH-24-337-30-S

Main Jet

$34.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-757-02-S

Repair Float Kit

$133.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-153-02

Slow Jet O-Ring

$

$

Not available

19

Cub Cadet KH-24-337-01

Slow Jet

$

$

Not available

19

Cub Cadet KH-24-337-29-S

Slow Jet (Disc.)

$

$

Currently unavailable

20

Cub Cadet KH-24-154-01

Inlet Needle Valve Clip

$

$

Not available

21

Cub Cadet KH-24-462-01

Inlet Needle Valve

$

$

Not available

22

Cub Cadet KH-24-173-02

Choke Lever Cap

$

$

Not available

23

Cub Cadet KH-24-757-07

Repair Choke Kit

$

$

Not available

24

Cub Cadet KH-24-041-09

Carburetor Body Gasket

$

$

Not available

25

Cub Cadet KH-24-086-09

Carburetor Body Screw

$

$

Not available

Cub Cadet KH-24-518-24-S

Ground Lead

Note: (not shown)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1/4

Note: (not shown)

$

$

Not available
