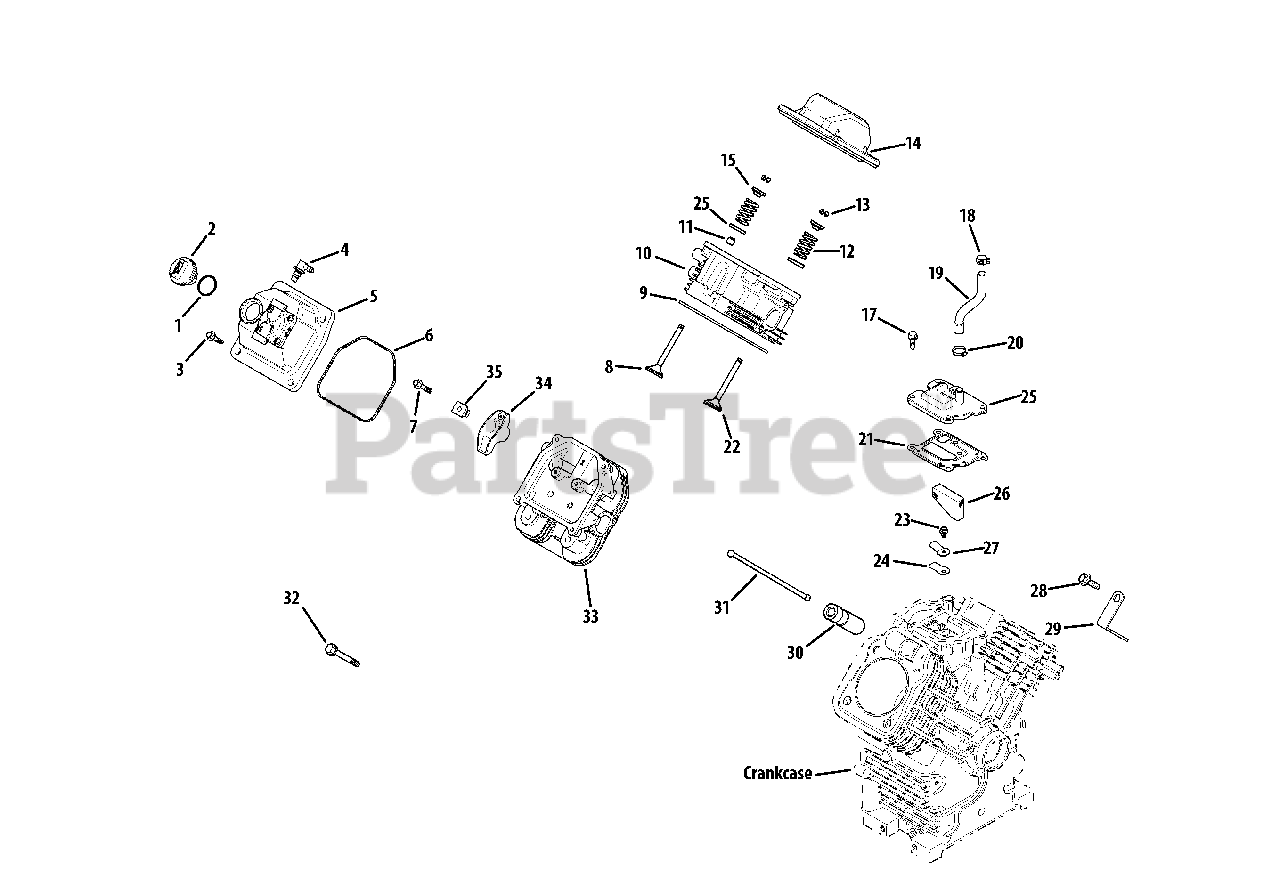

Kohler CH640-3099 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-153-32-S

O-Ring

$2.49

$

In Stock, only 4 left!

0

2

Cub Cadet KH-24-227-02-S

Oil Fill Cap Assembly

$7.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-M-651030-S

Flange Screw, M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-294-11-S

90 Degree Fitting Kit

$11.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-559-10-S

Valve Cover-Fuel Pump Kit

$168.99

$

In Stock, Qty 13

0

6

Cub Cadet KH-24-153-30-S

Vlave Cover O-Ring

$11.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-M-640034-S

Flange Screw, M6 x 1.0 x 34

$2.49

$

In Stock, Qty 19

0

8

Cub Cadet KH-24-016-01

Exhaust Valve (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

9

Cub Cadet KH-24-841-01-S

Cylinder Head Gasket Kit (C17-22)

$45.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-24-318-107-S

#1 Cylinder Head Assembly Kit
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

13

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-24-755-141-S

Valve Cover-Plain Kit

$35.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, Qty 9

0

16

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-086-396-S

Thread Forming Screw

$2.49

$

In Stock, only 1 left!

0

18

Cub Cadet KH-25-237-08-S

Band Spring Hose Clamp
(Superseded to KH-25-237-37-S)

$2.49

$

In Stock, Qty 11

0

19

Cub Cadet KH-24-326-89-S

Breather Hose

$9.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-25-237-31-S

Hose Clamp (KM)

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-24-041-67-S

Breather Gasket

$13.99

$

In Stock, only 4 left!

0

22

Cub Cadet KH-24-017-01

Intake Valve (Std)

$

$

Not available

22

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

23

Cub Cadet KH-M-0545010

Flange Thread Forming Screw,M5 x .8 x 10

$

$

Not available

24

Cub Cadet KH-24-402-03

Breather Reed
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet KH-24-033-01

Breather Assembly Kit

$

$

Not available

26

Cub Cadet KH-24-050-11-S

Breather Filter

$2.49

$

In Stock, only 2 left!

0

27

Cub Cadet KH-66-018-04-S

Reed Retainer

$4.99

$

In Stock, Qty 8

0

28

Cub Cadet KH-25-086-395-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

29

Cub Cadet KH-25-445-03-S

Lift Strap

$

$

Not available

30

Cub Cadet KH-25-351-10-S

Hydraulic Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 14

0

31

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

32

Cub Cadet KH-62-086-08-S

Flange Screw, M10 x 1.5 x 90

$5.99

$

In Stock, Qty 5

0

33

Cub Cadet KH-24-318-115-S

#2 Cylinder Head Assembly Kit
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

34

Cub Cadet KH-24-755-66

Valve Train Kit

$

$

Not available

34

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

35

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 12

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware

Note: (Not Shown)

$96.99

$

In Stock, only 3 left!

0
