GTX 2000 (14W-3FM-010) - Cub Cadet Garden Tractor (2013) Kohler CH640-3052 Starting System Parts Diagram

Garden Tractor

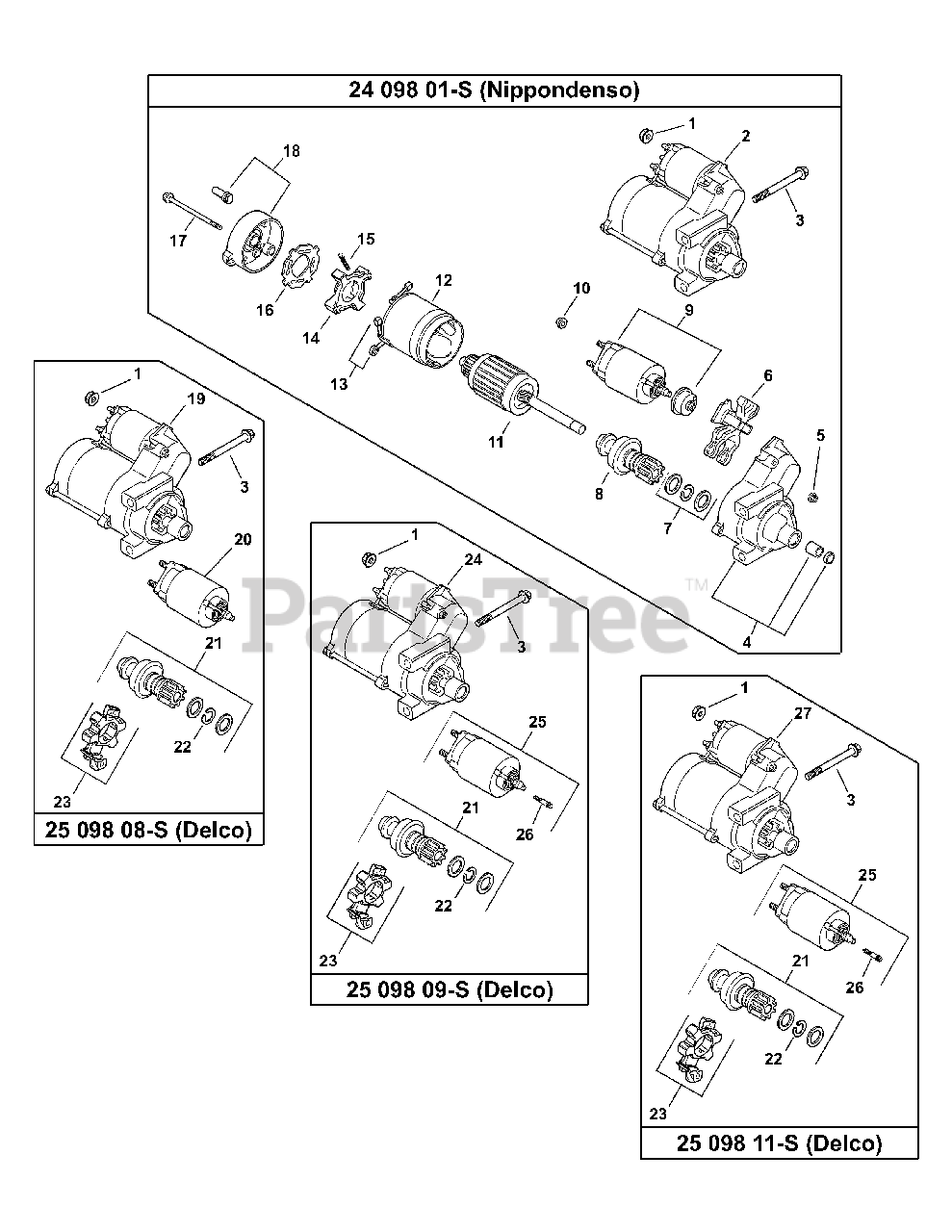

Kohler CH640-3052 Starting System Parts Diagram

  • Title
1

Cub Cadet 712-3086

Nut, Flg M8X1.25

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

Note: (replaces 24 098 01-S1) (Nippondenso)

$316.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-M-851080-S

Screw, Flg M8x1.25x80

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-081-04

Drive, End Cap

$

$

Not available

5

Cub Cadet KH-52-100-09

Nut, Starter

$

$

Not available

6

Cub Cadet KH-12-090-10

Lever, Starter Drive

$

$

Not available

7

Cub Cadet KH-24-755-84

Kit, Starter Repair

$

$

Not available

8

Cub Cadet KH-12-239-01

Drive Pinion

$

$

Not available

$499.99

$

Usually ships in 2-5 days

0

$

$

Not available

$

$

Not available

12

Cub Cadet KH-12-471-01

Frame w/ Brushes

$

$

Not available

13

Cub Cadet KH-52-323-03

Brush Holder

$

$

Not available

14

Cub Cadet KH-52-221-01

Brush & Spring Kit

$

$

Not available

15

Cub Cadet KH-52-089-09

Spring, Brush

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

Cub Cadet KH-24-301-01

Commutator, End Cap

$

$

Not available

19

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

Note: (replaces 25 098 08-S)

$316.99

$

In Stock, Qty 9

0

20

Cub Cadet KH-25-435-04-S

Solenoid

Note: (Plunger is NOT part of the solenoid; Note: Solenoid secured to starter with 3 Philips head screws.)

$

$

Not available

21

Cub Cadet KH-25-755-33-S

Kit, Starter Pinion (Includes 22)

$

$

Not available

22

Cub Cadet KH-25-141-05-S

Ring, Retaining

$3.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-221-01-S

Kit, Brush Holder

$70.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

Note: (replaces 25 098 09-S)

$316.99

$

In Stock, Qty 9

0

25

Cub Cadet KH-25-435-06-S

Kit, Solenoid (Includes 26)

$212.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-25-086-113-S

Screw, External Torx Head M4x0.7x26

$15.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 9

0

Service starter components according to the part number printed on the starter, some parts are not interchangeable.

$

$

Not available
