GTX 2000 (14W-3FM-010) - Cub Cadet Garden Tractor (2012) Kohler CH640-3052 Head, Valve & Breather Parts Diagram

Garden Tractor

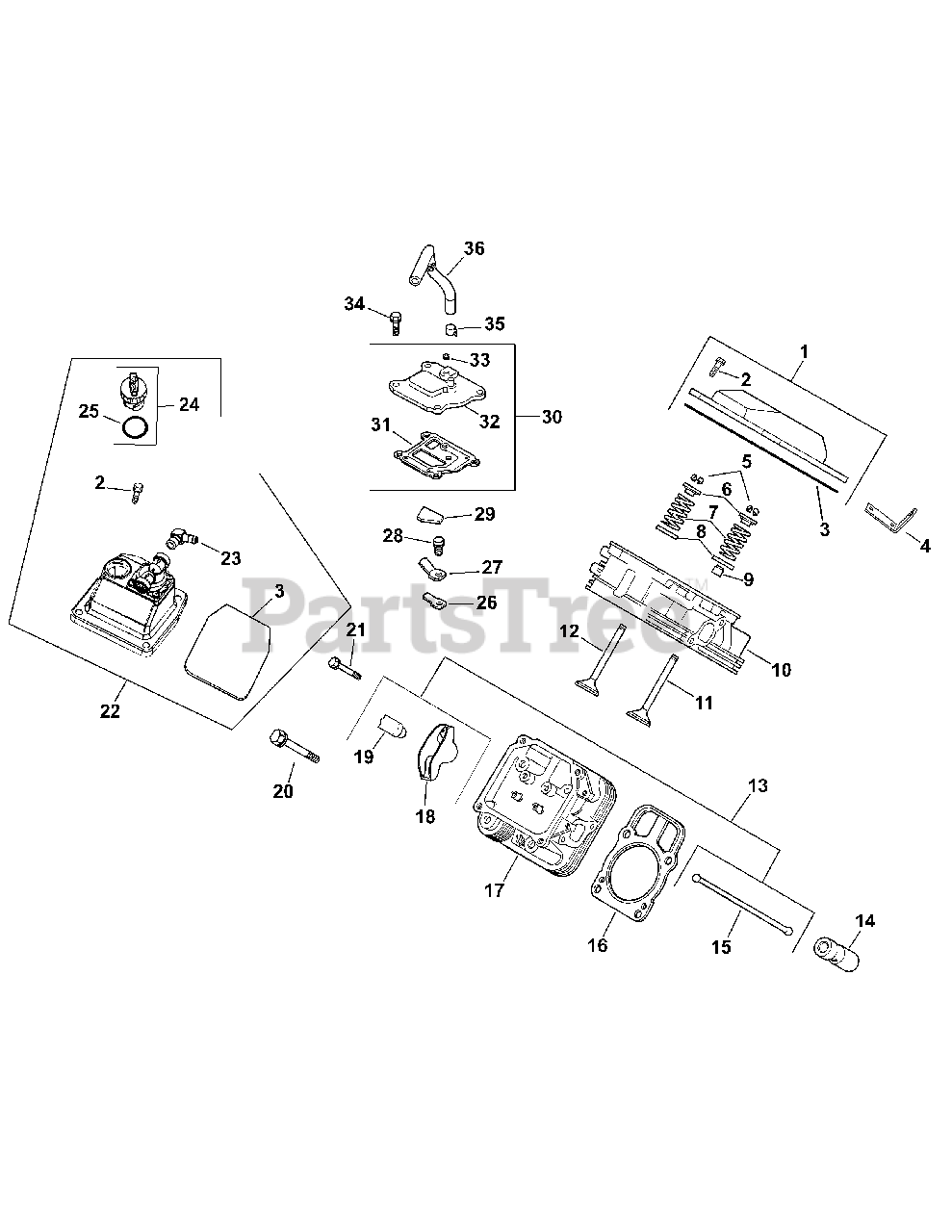

Kohler CH640-3052 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-141-S

Kit, Valve Cover-Plain Inc. 2, 3)

$35.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-M-651030-S

Screw, Flg M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-30-S

O-Ring, Valve Cover

$11.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-445-01-S

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 8

0

6

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-318-107-S

Kit, #1 Cylinder Head Assy
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

11

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 14

0

12

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, Valve Train (Includes 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-10-S

Hydraulic Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 9

0

15

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

16

Cub Cadet KH-24-841-01-S

Kit, Cylinder Head Gasket

Note: (Includes Head Mtg Hdwe)

$45.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-24-318-115-S

Kit, #2 Cylinder Head Assy
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

19

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-62-086-08-S

Screw, Flg M10x1.5x90

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet KH-M-640034-S

Screw, Flg M6x1.0x34

$2.49

$

In Stock, Qty 18

0

22

Cub Cadet KH-24-559-10-S

Kit, Valve Cover-Fuel Pump

Note: (Includes 2, 3, 23-25)

$168.99

$

In Stock, Qty 12

0

23

Cub Cadet KH-25-294-11-S

Kit, 90 Deg. Fitting

$11.99

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-227-02-S

Cap Assy, Oil Fil (Yellow) (Inc. 25)

$7.99

$

In Stock, Qty 6

0

25

Cub Cadet KH-24-153-32-S

O-Ring

$2.49

$

In Stock, only 4 left!

0

26

Cub Cadet KH-66-018-04-S

Reed Retainer

$4.99

$

In Stock, only 4 left!

0

27

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x0.8x10

$

$

Not available

29

Cub Cadet KH-24-050-11-S

Filter, Breather

$2.49

$

Usually ships in 2-5 days

0

30

Cub Cadet KH-24-033-01

Kit, Breather Ass’y (Inc. 31-33)

$

$

Not available

31

Cub Cadet KH-24-041-67-S

Gasket, Breather

$13.99

$

In Stock, Qty 20+

0

32

Cub Cadet KH-24-033-01

Kit, Breather Ass’y

$

$

Not available

33

Cub Cadet KH-25-139-60-S

Plug, Pipe CTSK 1/8"

$3.49

$

In Stock, only 2 left!

0

34

Cub Cadet KH-M-645020-S

Screw, Flg Thd Frm M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

35

Cub Cadet KH-25-237-31-S

Hose Clamp, 1/2"

$4.99

$

In Stock, only 3 left!

0

36

Cub Cadet KH-24-326-89-S

Hose, Breather

$9.99

$

In Stock, Qty 11

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware

Note: Not Shown (Inc. 5-9, 11-12, 15, 18-19, 21)

$96.99

$

In Stock, only 3 left!

0
