GTX 1054 (14WZ94AK010) - Cub Cadet 54" Garden Tractor (2013) Kohler SV740-3024 Ignition & Electrical Parts Diagram

54" Garden Tractor

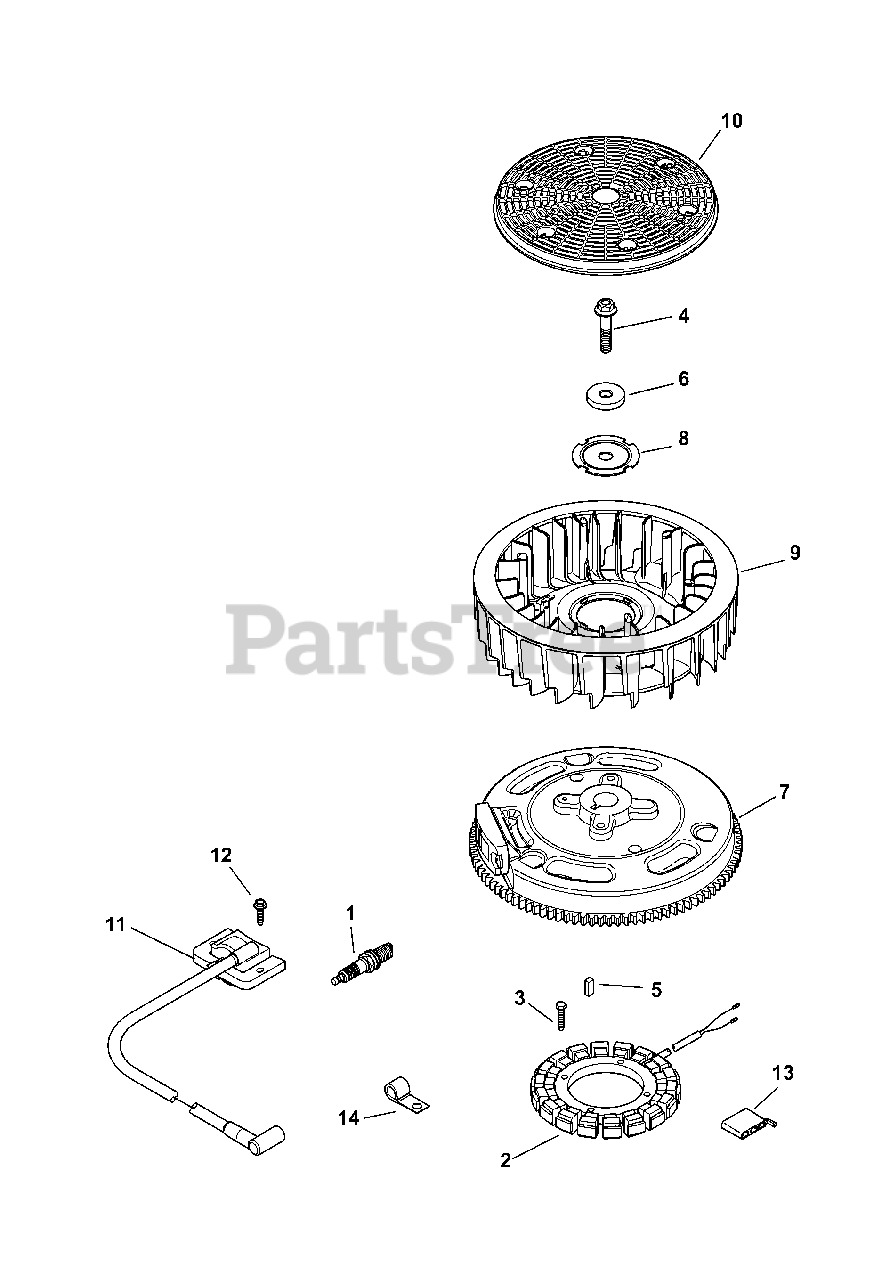

Kohler SV740-3024 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-28-085-02-S

25 Amp Stator Kit

$194.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-25-086-162-S

Screw, M5 x 0.8 x 30
(Superseded to KH-25-086-412-S)

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-086-361-S

Hex Flange Screw

$3.99

$

In Stock, Qty 12

0

5

Cub Cadet KH-25-340-04-S

Square Key

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-25-468-09-S

Flat Washer

$6.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-32-025-15-S

Flywheel Assembly
(Superseded to KH-32-025-21-S)

$347.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-32-162-03-S

Grass Screen

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-24-584-89-S

Module Ignition Kit

$

$

Not available

12

Cub Cadet KH-M-545020-S

Screw, M5 x .8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-25-155-41-S

Connector

$24.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-47-154-01-S

Cable Clip

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-25-454-05-S

Wire Tie

Note: (Not shown)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-32-176-28-S

Wiring Harness

Note: (Not shown)

$53.99

$

Usually ships in 2-5 days

0
