GTX 1054 (14WK94AK010) - Cub Cadet 54" Garden Tractor (2011) Engine Accessories Parts Diagram

54" Garden Tractor

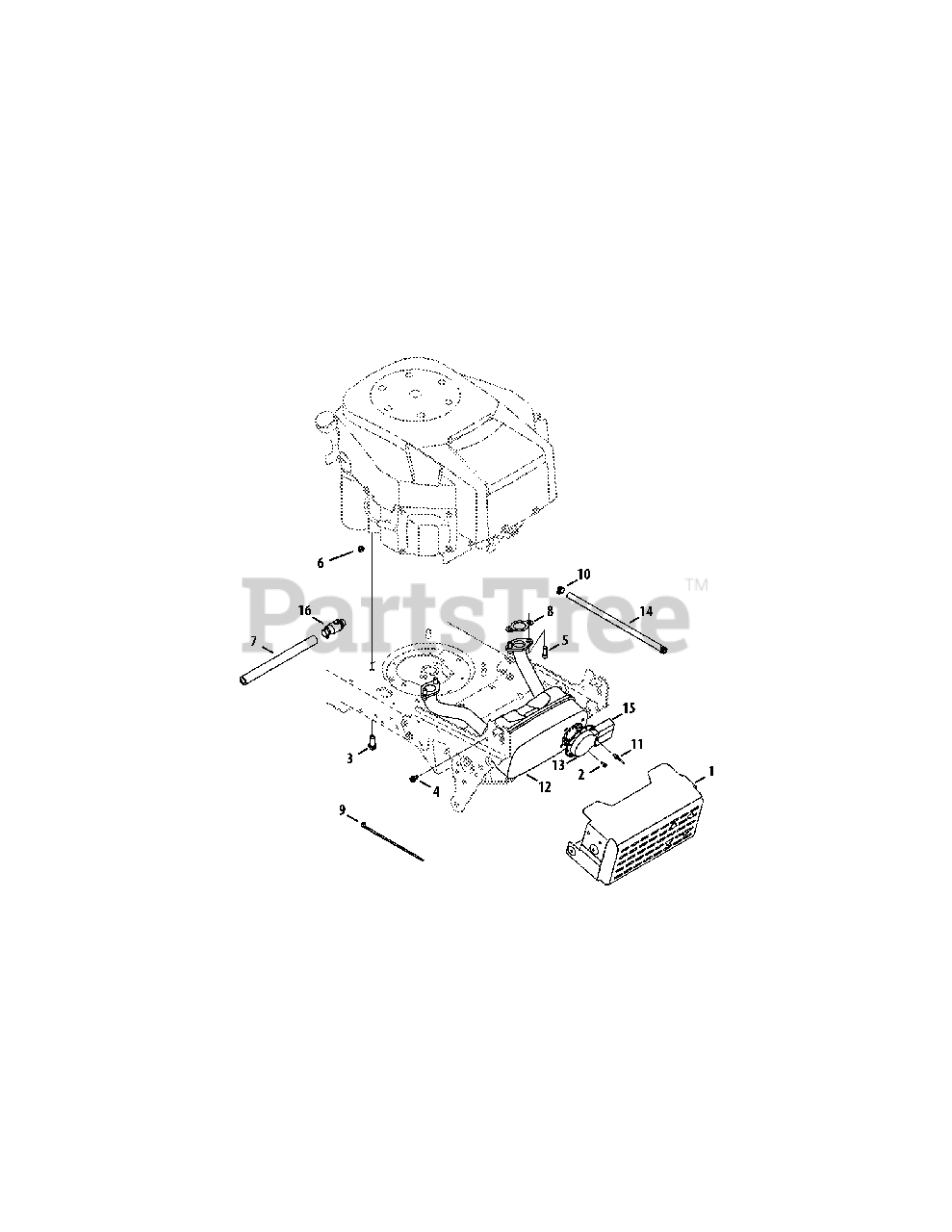

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 683-04549-0637

Shield Ass’y, Muffler
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

Screw, Ab, #8-18, 0.500,

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04683

Screw, Self-tapping, 3/8-16, 1.000,
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1314A

Screw, Socket Head, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 751-3141-14

Hose, Extension, Oil Drain

$11.99

$

In Stock, Qty 8

0

8

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$

$

Not available

9

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 18

0

11

Cub Cadet 728-04000

Rivet, Pop, .188 Dia x .300

$6.99

$

In Stock, Qty 8

0

12

Cub Cadet 751-10528A

Muffler, Kohler Twin
(Superseded to 951-10528B)

$160.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 5

0

14

Cub Cadet 751-10349

Hose, Fuel, Low Permeation, 1/4

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-10353

Deflector, Muffler, Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 751-11053

Deflector, Muffler, Long
(Superseded to 751-11053B)

Note: Models built after Jan. 1, 2011.

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 951-10517A

Drain, Oil

$24.99

$

In Stock, only 3 left!

0

17

Cub Cadet 751-12089-28

Hose, Vent

Note: Models built after Jan. 1, 2011.

$8.99

$

In Stock, only 1 left!

0
