GTX 1054 (14WK94AK010) - Cub Cadet 54" Garden Tractor (2010) Seat, Fender & Lift Parts Diagram

54" Garden Tractor

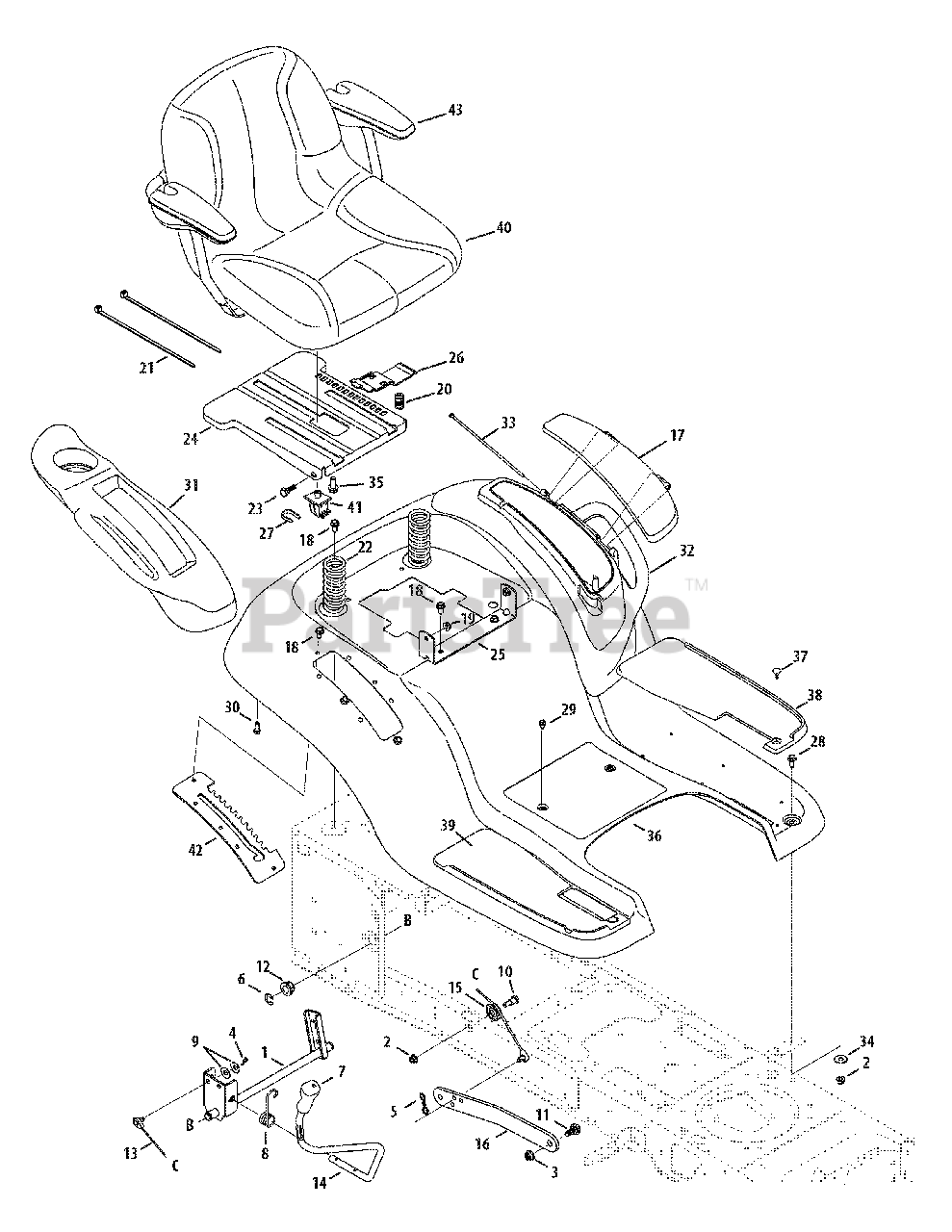

Seat, Fender & Lift Parts Diagram

  • Title

1

Cub Cadet 683-04301-0637

Shaft Ass’y, Lift

$

$

Not available

2

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 716-0106A

Ring, E Type, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

7

Cub Cadet 720-04139

Grip, Handle, Cub, .50 ID
(Superseded to 720-04139B)

$18.99

$

In Stock, Qty 10

0

8

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 736-0105

Washer, Spring, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 738-0138A

Screw, Shoulder, .437 x .470, 5/16-18

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 938-0380

Bolt, Shoulder, .50, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

14

Cub Cadet 747-04962A

Handle, Lift,

$37.99

$

In Stock, only 1 left!

0

15

Cub Cadet 756-04331

Pulley, Roller, Cable

$6.99

$

In Stock, Qty 13

0

16

Cub Cadet 783-05546A-0637

Link, Lift

$20.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-06584

Door, Cover, Fender

$36.99

$

In Stock, only 3 left!

0

18

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04563

Spring, Compr’, .68 x 1.065 x .055

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-04561

Spring, Comprs, 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 938-0296

Screw, Shoulder, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 783-06049-0637

Bracket, Mounting, Seat

$68.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-06088-0637

Bracket, Pivot, Seat
(Superseded to 783-06088A-0637)

$21.99

$

In Stock, only 3 left!

0

26

Cub Cadet 783-06050

Lever, Seat Adjustment

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 783-06448

Clip, Retaining, Switch

$5.99

$

In Stock, only 3 left!

0

28

Cub Cadet 710-1260A

Hex Screw, 5/16-18, .75, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0895

Screw, HL, 1/4-15, 0.750,

$6.49

$

In Stock, only 4 left!

0

31

Cub Cadet 731-06700

Cover, Fender, RH

$57.99

$

In Stock, only 1 left!

0

32

Cub Cadet 731-06676

Cover, Fender, LH

$

$

Not available

33

Cub Cadet 747-05039

Pin, Door

$7.99

$

In Stock, only 2 left!

0

34

Cub Cadet 736-3078

Washer, Flat .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-04482

Hex Flange Screw, 3/8/16, .875, Gr5

Note: Seat stop bolt, one used

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 783-06118-4021

Fender, Cub Hydro

$452.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

38

Cub Cadet 735-04137

Pad, Foot, LH

$19.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 735-04139

Pad, Foot, RH

$

$

Not available

40

Cub Cadet 757-04132

Seat, High Back Cloth w/o Arm Rest

$358.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 925-05013

Switch, Seat

$31.99

$

In Stock, only 2 left!

0

42

Cub Cadet 783-06181-0637

Bracket, Lift

$

$

Not available

43

Cub Cadet 757-04073

Arm Rest Kit

$130.99

$

Usually ships in 3-6 days

0
