GTX 1054 (14AZ94AK009) - Cub Cadet 54" Garden Tractor (2012) Kohler SV740-3024 Air Intake & Filtration Parts Diagram

54" Garden Tractor

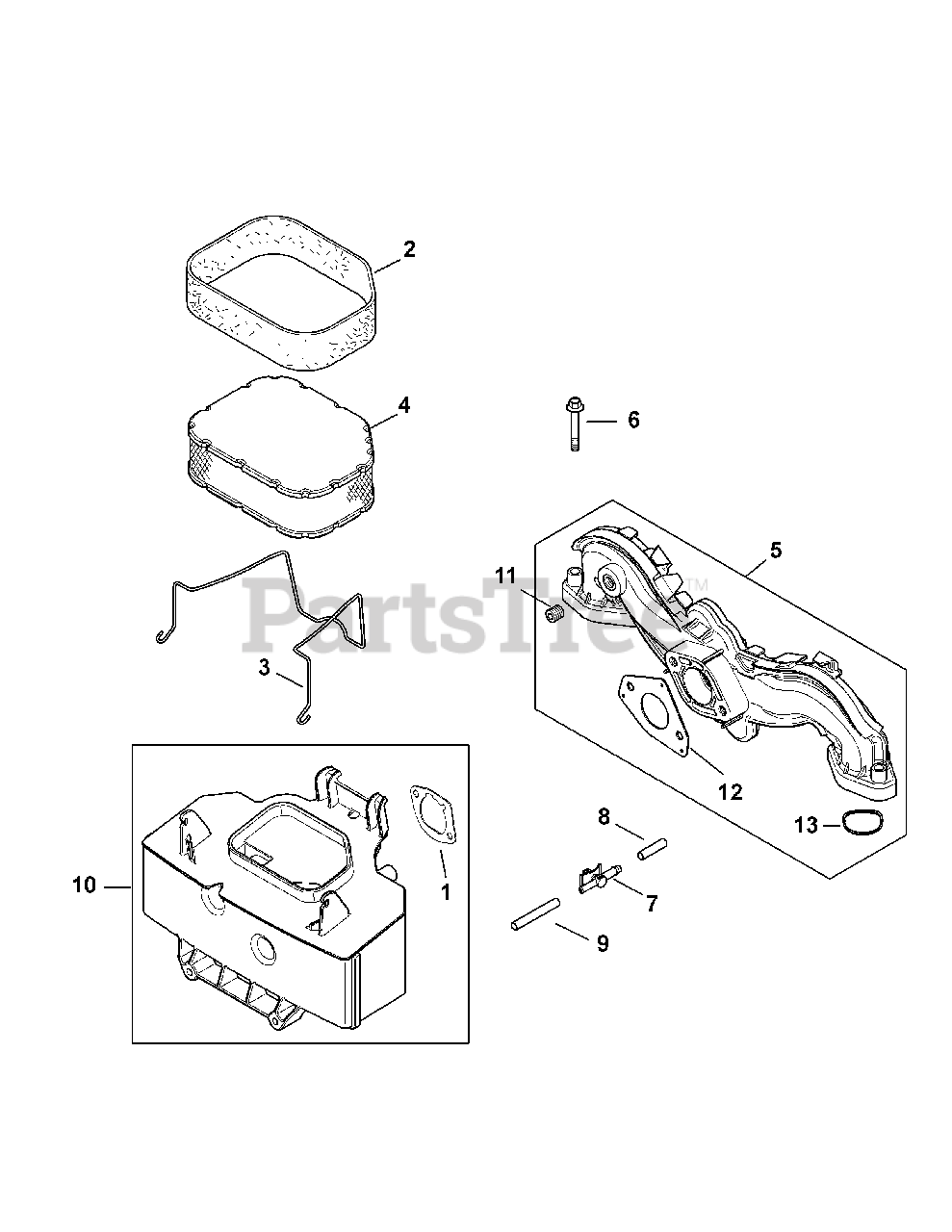

Kohler SV740-3024 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

2

Cub Cadet N/A

Pre-Cleaner Element

Note: See Ref 4

$

$

Currently unavailable

3

Cub Cadet KH-32-344-02-S

Air Cleaner Element Latch

$

$

Not available

4

Cub Cadet KH-32-883-03-S1

Air Filter & Pre-Cleaner Element
(Superseded to 3288303S1C)

$27.99

$

In Stock, Qty 7

0

5

Cub Cadet KH-24-164-91-S

Intake Manifold Kit
(Superseded to KH-24-164-278-S)

$218.99

$

Usually ships in 3-6 days

0

6

Cub Cadet KH-M-651040-S

Flange Screw, M6 x 1.0 x 40

$2.49

$

In Stock, Qty 12

0

7

Cub Cadet KH-25-155-51-S

Evaporative Connector

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-25-173-33-S

Evaporative Mask

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-326-08-S

Evaporative Hose, 20"
(Superseded to KH-24-326-143-S)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-32-094-08-S

Air Cleaner Base

$

$

Not available

11

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.99

$

In Stock, Qty 8

0
