GTVH 205 (954140102-B) - Husqvarna Garden Tractor (2000-03) Engine Parts Diagram

Garden Tractor

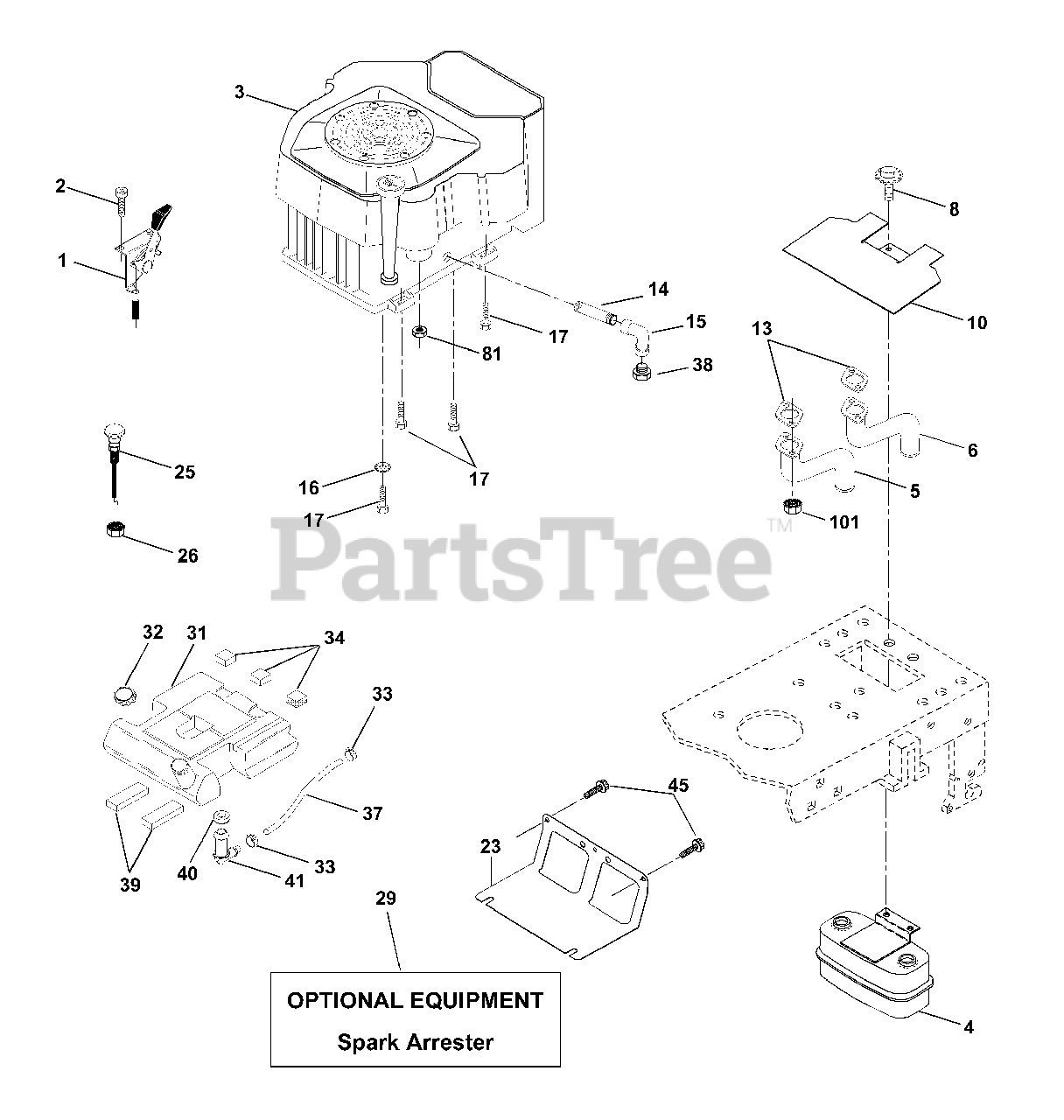

Engine Parts Diagram

  • Title

1

Husqvarna 532155274

Control, Throttle
(Superseded to 532170863)

$

$

Not available

2

Husqvarna 817720410

Screw, Hex Head, Thread Cutting 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine, Kohler CV20

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler

$74.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

Pipe Exhaust, LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

6

Husqvarna 532146700

Pipe Exhaust, RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

8

Husqvarna 532150176

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532163307

Muffler Gasket
(Superseded to 532186054)

Note: (Order from Engine Manufacturer)

$

$

Not available

14

Husqvarna 813280336

Nipple, Pipe 3/8 NPT x 4-1/2

$

$

Not available

15

Husqvarna 813200300

Elbow, Standard 90° 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

17

Husqvarna 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

Shield, Browning / Debris Guard

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532145996

Choke Control

$

$

Not available

26

Husqvarna 873920600

Nut, Keps 3/8-24 UNF

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit, Spark Arrestor

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532151346

Tank Fuel 3 50 Rear

$96.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Clamp, Hose

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532106082

Pad, Spacer

$

$

Not available

37

Husqvarna 532142158

Line, Fuel
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Plug, Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

39

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

Stem, Fuel Tank

$8.99

$

In Stock, Qty 7

0

45

Husqvarna 817000612

Screw Hex Wsh Thdr 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

Nut, Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

101

Husqvarna 532163305

Nut Flange M8-1.25 Non-Lk Zink
(Superseded to 873030800)

$

$

Not available
