GTVH 205 (954140102-A) - Husqvarna Garden Tractor (1999-10) Mower Lift Parts Diagram

Garden Tractor

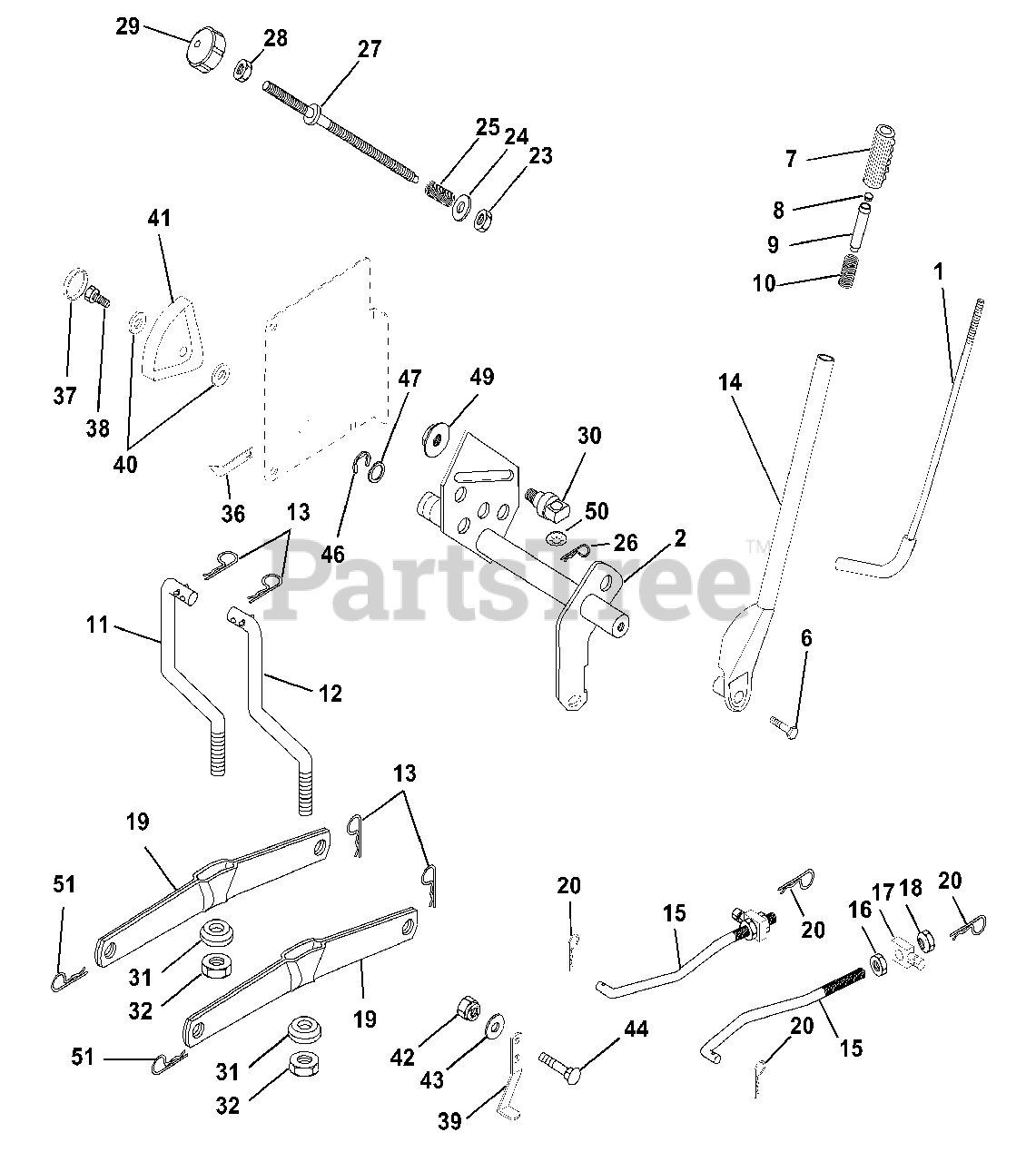

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532121006

Rod Assembly, Lever

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159188

Shaft Assembly, Lift

$52.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532171362

Bolt, Hex Head, Fin. 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532125631

Grip Handle

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

Plunger Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532145537

Link, Lift, LH

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 532145536

Link, Lift, RH

$26.99

$

In Stock, only 3 left!

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

14

Husqvarna 532159189

Lever Assembly, Lift, RH

$

$

Not available

15

Husqvarna 532167253

Link, Front
(Superseded to 532173288)

$13.99

$

In Stock, only 2 left!

0

16

Husqvarna 532171262

Nut, Hex, Jam 1/2-13 UNC
(Superseded to 873350800)

$

$

Not available

17

Husqvarna 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 532171263

Nut Crownlock 1/2-13 Unc
(Superseded to 873350800)

$

$

Not available

19

Husqvarna 532139868

Arm, Suspension, Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532171212

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532110807

Nut, Special

$

$

Not available

24

Husqvarna 532171207

Washer 13/32 x 5/8 x 16 Gauge
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532171208

Retainer Clip
(Superseded to 532169484)

$

$

Not available

27

Husqvarna 532171206

Adjustment Rod, Lift
(Superseded to 532126971)

$

$

Not available

28

Husqvarna 532171163

Nut, Hex, Jam 3/8-16 UNC
(Superseded to 873350600)

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532138057

Knob, Infinite Height Adjustment

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532171203

Trunnion, Inf. Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532140302

Bearing
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 873540600

Nut, Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532155097

Pointer Height Indicator

$

$

Not available

37

Husqvarna 532123935

Plug Hole Blk 1.485/1.515 Dia.

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532171210

Screw 5/16-18 x 1 Smgml Tap/R
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532142992

Stop Over Center

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532171209

Washer 11/32 x 1-1/2 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532123934

Scale Ind. Height Blk.

$

$

Not available

42

Husqvarna 532171168

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532171558

Washer 13/32 x 1 x 12 Ga.

$

$

Currently unavailable

44

Husqvarna 532171557

Bolt, Carriage 3/8-16 x 1.00

$

$

Currently unavailable

46

Husqvarna 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532171182

Washer
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532171178

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532171211

Retainer Spring
(Superseded to 532004939)

$

$

Not available
