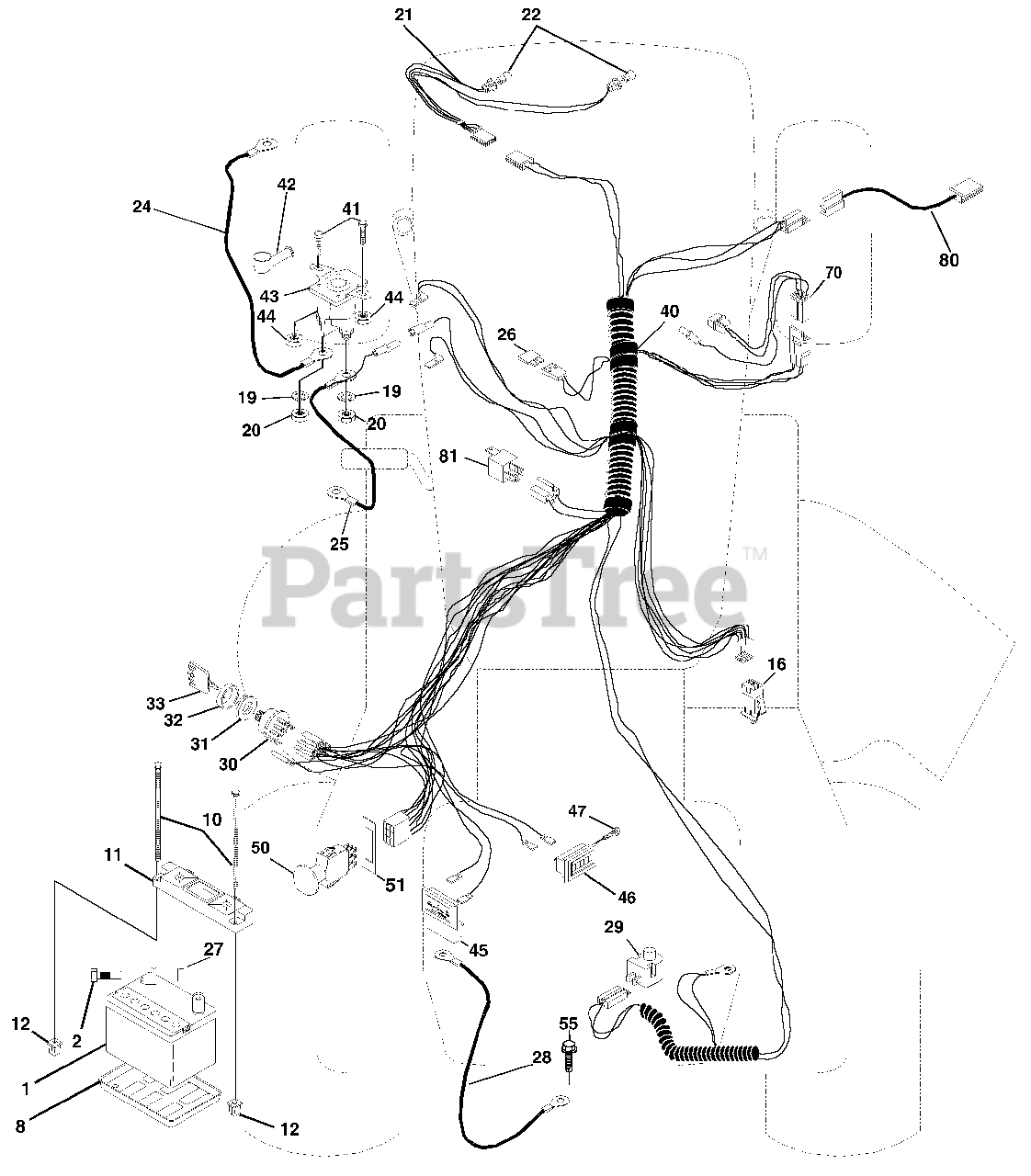

GTVH 200 (954140016-B) - Husqvarna Garden Tractor (1999-03) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery, 12 Volt, 35 Amp
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt, Hex Head 1/4-20 UNC x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Dash Mount

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon 1/4" Battery Front
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

19

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 873350400

Nut, Jam, Hex Head 1/4-20 UNC
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 532166181

Harness, Light

$

$

Not available

22

Husqvarna 532004152

Bulb, Light

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532124780

Cable, Battery, 6 Gauge, 11", Red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532146148

Cable, Battery

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532166180

Fuse, 15 Amp
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

Nut, Hex, Keps 1/4-20 UNC
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532145491

Cable, Ground, 6 Gauge, 12", Black

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

Switch, Plunger, Normal Op Olive

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532140301

Switch, Ignition, 4 Position

$37.99

$

In Stock, only 1 left!

0

31

Husqvarna 532124211

Nut, Ignition

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 532141226

Cover, Ignition Switch

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532122147

Key, Ignition

$

$

Not available

40

Husqvarna 532166149

Harness, Ignition

$

$

Not available

41

Husqvarna 871110408

Bolt, Hex, Fin. 1/4-20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal, Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 3 left!

0

44

Husqvarna 873640400

Nut, Hex, Keps 1/4-20 UNC

$

$

Not available

45

Husqvarna 532122822

Ammeter, Rectangular, 15 AMP

$20.99

$

In Stock, only 1 left!

0

46

Husqvarna 532110940

Meter, Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Husqvarna 817011008

Screw 10-24 x 1/2 Black

$

$

Not available

50

Husqvarna 532154959

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 5

0

51

Husqvarna 532140405

Ring, Retainer, PTO

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw, Thdrol 5/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532166668

Harness, Engine

$

$

Not available

80

Husqvarna 532146685

Harness Clutch EVX

$26.99

$

In Stock, only 2 left!

0

81

Husqvarna 532109748

Relay Assembly

$30.99

$

In Stock, only 1 left!

0
