GTV-990 - Generac 992cc Guardian Engine for Cub Cadet Muffler Mounting / Air Cleaner Parts Diagram

992cc Guardian Engine for Cub Cadet

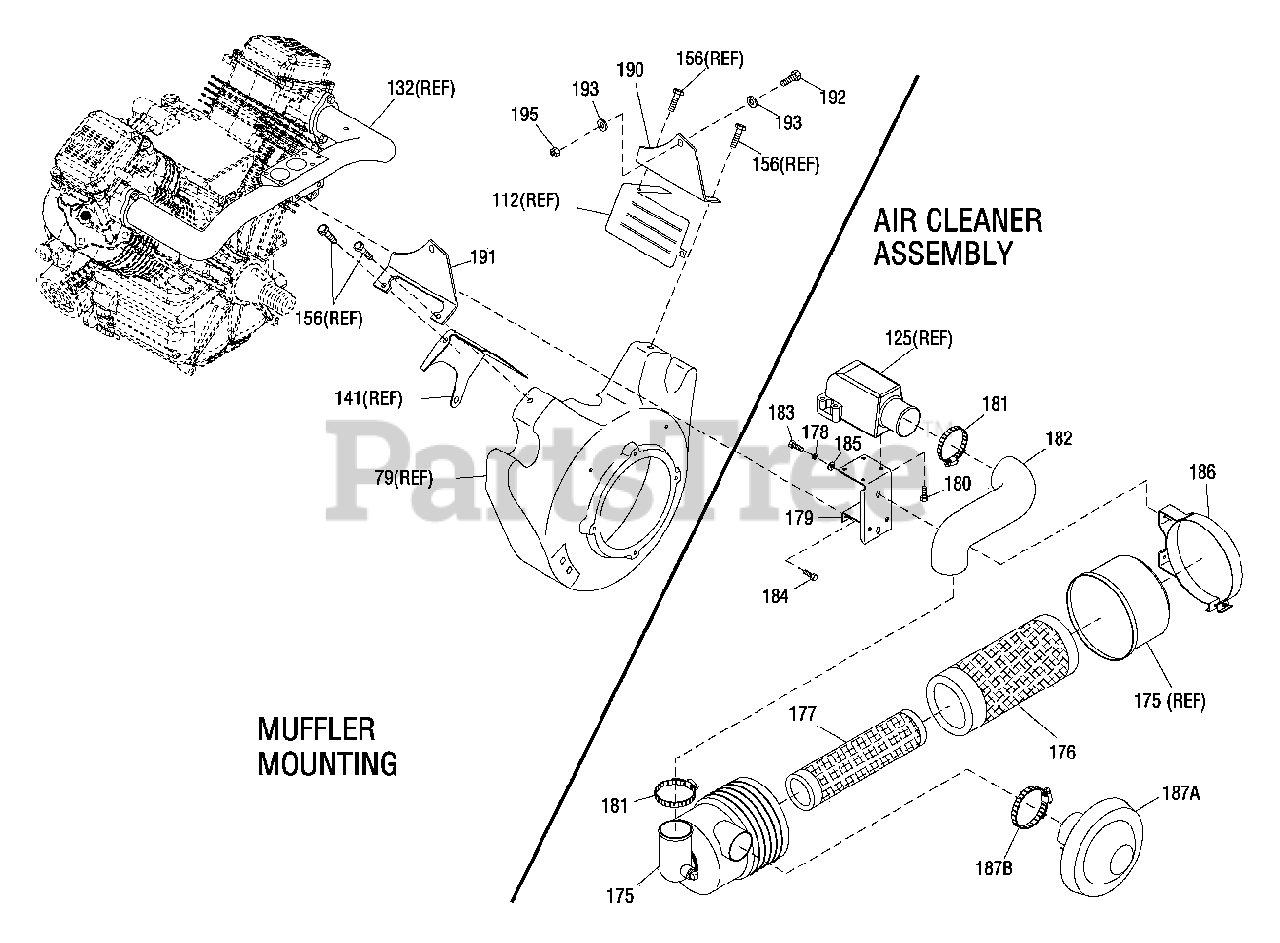

Muffler Mounting / Air Cleaner Parts Diagram

  • Title

79

Cub Cadet GG-0E4046E

HOUSING, BLOWER VERTICAL

$

$

Not available

92

Cub Cadet GG-0C3032

PLATE, FAN

$

$

Not available

93

Cub Cadet GG-0C3031

FAN, NYLON

$

$

Not available

141

GG-0D4443

WRAPPER, UPPER CYLINDER 2

$

$

Not available

156

Cub Cadet GG-0C8566

SCREW, FHHC M6-1.0 x 12 W/M5 HEX

$

$

Not available

161

Cub Cadet GG-0D6311

BRACKET, THROTTLE

$

$

Not available

112

Cub Cadet GG-0C3018

WRAPPER, UPPER CYLINDER 1

$

$

Not available

125

Cub Cadet GG-0D3959A

ADAPTOR, CARB-AIRBOX, M6 BOSSES

$

$

Not available

132

Cub Cadet GG-0E3052

MANIFOLD.INTAKE 2BBL CARB
(Superseded to GG-0J8892)

$110.99

$

Usually ships in 3-6 days

0

175

Cub Cadet GG-0E3655

CLEANER, AIR W/ SFTY FLT

$

$

Not available

176

Cub Cadet GG-0E3557

FILTER, AIR PRIMARY

$97.99

$

Usually ships in 3-6 days

0

177

Cub Cadet GG-0E3656

FILTER, AIR SAFETY (INNER)

$

$

Not available

178

Cub Cadet GG-022129

WASHER LOCK M8-5/16

$

$

Not available

179

Cub Cadet GG-0E2990

BRKT, AIR CLEANER SUPPORT

$

$

Not available

180

Cub Cadet GG-0E1644

SCREW BHSC M6-1.0 x 12 SS

$

$

Not available

181

Cub Cadet GG-0E1680

CLAMP HOSE #32 1.563-2.500

$

$

Not available

182

Cub Cadet GG-0E4326

HOSE AIR CLEANER

$

$

Not available

183

Cub Cadet GG-042907

SCREW HHC M8-1.25 x 16 G8.8

$

$

Not available

184

Cub Cadet GG-0D6147

SCREW HHFC M6-1.0 x 10 G8.8

$

$

Not available

185

Cub Cadet GG-022145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

186

Cub Cadet GG-0E1091

ASSY, BAND MOUNT AIR CLEANER

$

$

Not available

187A

Cub Cadet GG-0E0136A

HOOD, INLET

$

$

Not available

187B

GC-0e0136B

CLAMP, HOSE

$

$

Not available

190

NOT USED IN THIS APPLICATION

NOT USED IN THIS APPLICATION

$

$

Not available

191

NOT USED IN THIS APPLICATION

NOT USED IN THIS APPLICATION

$

$

Not available

193

NOT USED IN THIS APPLICATION

NOT USED IN THIS APPLICATION

$

$

Not available

195

NOT USED IN THIS APPLICATION

NOT USED IN THIS APPLICATION

$

$

Not available
