GTV-990 - Generac 992cc Guardian Engine for Cub Cadet Engine Parts Diagram

992cc Guardian Engine for Cub Cadet

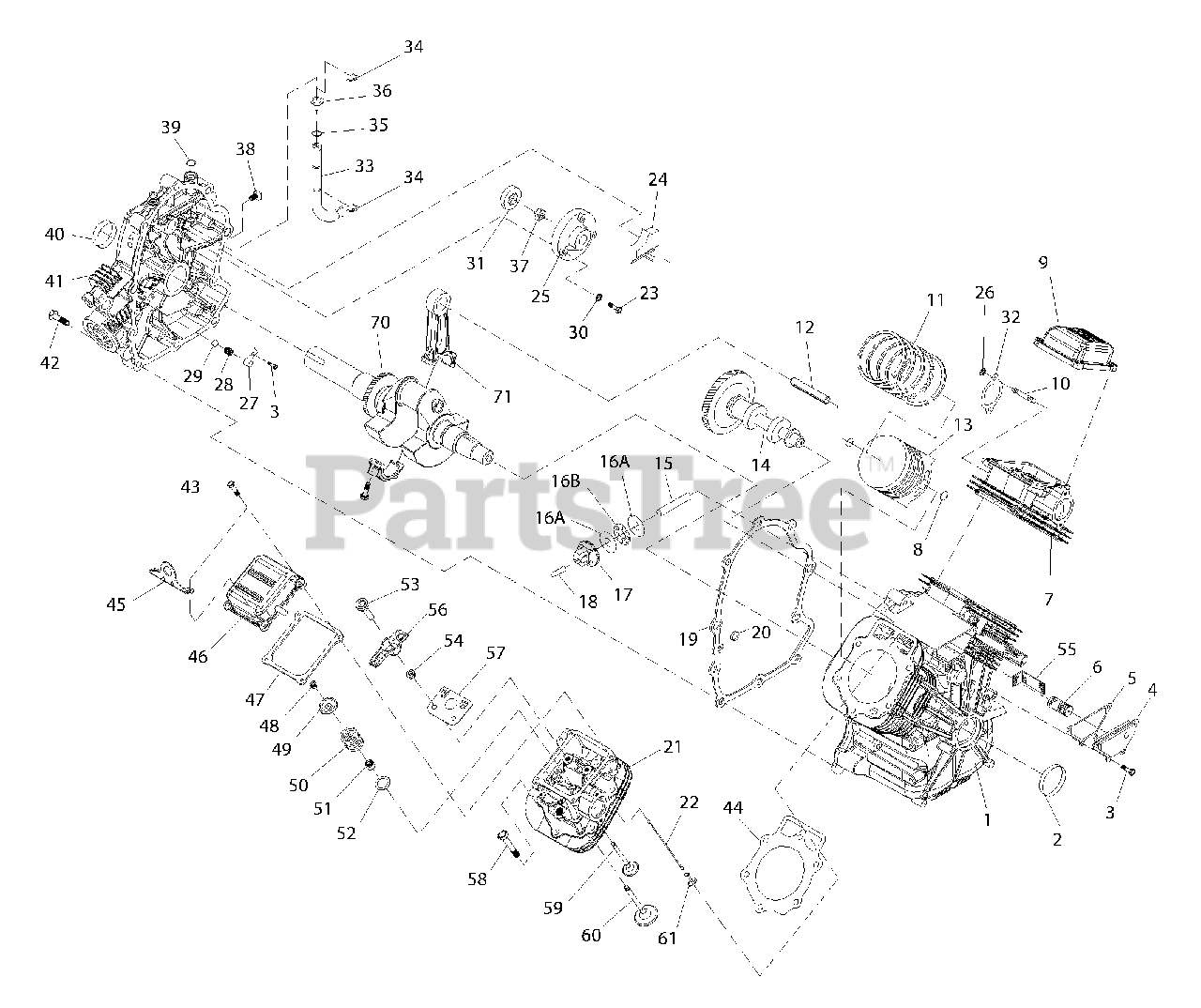

Engine Parts Diagram

  • Title

1

Cub Cadet GG-0C5730B

ASSY,CRANKCASE VS W/SLEEVE
(Superseded to GG-0D4618DSRV)

$

$

Not available

2

Cub Cadet GG-0C3008

SEAL, 38 I.D. CRANKSHAFT
(Superseded to GG-0K1534)

$

$

Not available

3

Cub Cadet GG-090388

SCREW, TAPTITE M6-1.0 X 12 YC

$

$

Not available

4

Cub Cadet GG-0C5372

ASSEMBLY, BREATHER

$

$

Not available

5

Cub Cadet GG-0C3005

GASKET, BREATHER COVER

$

$

Not available

6

Cub Cadet GG-0E3372A

SEPARATOR, OIL BREATHER

$

$

Not available

7

ASSEMBLY, HEAD #1

ASSEMBLY, HEAD #1

$

$

Not available

8

Cub Cadet GG-071983

RETAINER, PISTON PIN 20

$

$

Not available

9

Cub Cadet GG-0C2981C

ROCKER, COVER NO OIL FILL

$

$

Not available

10

Cub Cadet GG-045761A

STUD M8-1.25/10MM X 30 G5 ZINC

$

$

Not available

11

Cub Cadet GG-021533

SET, PISTON RING 90MM
(Superseded to GG-0G25650SRV)

$27.99

$

Usually ships in 3-6 days

0

12

Cub Cadet GG-0E1466

PIN PISTON 20 DIA X 48 LONG

$

$

Not available

13

Cub Cadet GG-0E2950

PISTON, 8.5:1 90MM DIA (LOW COMP.)
(Superseded to GG-0K0989)

Note: (LOW COMP.)

$66.99

$

Usually ships in 3-6 days

0

14

Cub Cadet GG-0D4041

ASSEMBLY, CAMSHAFT & GEAR
(Superseded to GG-0D40410SRV)

$132.99

$

Usually ships in 3-6 days

0

15

Cub Cadet GG-0C2983

SHAFT, GOVERNOR

$

$

Not available

16A

ROLLER BEARING, GOVERNOR PLATE

ROLLER BEARING, GOVERNOR PLATE

Note: (Order Ref. No. 67)

$

$

Not available

16B

ROLLER BEARING, GOVERNOR

ROLLER BEARING, GOVERNOR

Note: (Order Ref. No. 67)

$

$

Not available

17

ASSEMBLY,GOVERNOR GEAR

ASSEMBLY,GOVERNOR GEAR

Note: (Order Ref. No. 67)

$

$

Not available

18

SPOOL, GOVERNOR MACHINED

SPOOL, GOVERNOR MACHINED

Note: (Order Ref. No. 67)

$

$

Not available

19

Cub Cadet GG-0C2977

GASKET, CRANK CASE

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet GG-0C5943

SEAL, OIL PASSAGE

$

$

Not available

21

ASSEMBLY, HEAD #2

ASSEMBLY, HEAD #2

Note: (Order Ref No. 69)

$

$

Not available

22

Cub Cadet GG-0D9853D

PUSHROD, 147

$

$

Not available

23

Cub Cadet GG-021374

SCREW SHC M6-1.0 X 30 G8.8

$

$

Not available

24

Cub Cadet GG-0C2994

SCREEN, OIL PICKUP

$

$

Not available

25

Cub Cadet GG-0C2997

COVER, GEROTOR

$

$

Not available

26

Cub Cadet GG-052858

NUT LOCK FL M8-1.25

$

$

Not available

27

COVER, OIL RELIEF

COVER, OIL RELIEF

Note: (Order Ref No. 62)

$

$

Not available

28

SPRING, OIL RELIEF

SPRING, OIL RELIEF

Note: (Order Ref No. 62)

$

$

Not available

29

BALL, 1/2D OIL RELIEF

BALL, 1/2D OIL RELIEF

Note: (Order Ref No. 62)

$

$

Not available

30

Cub Cadet GG-093873

WASHER, LOCK RIB M6

$

$

Not available

31

Cub Cadet GG-0C2996

GEROTOR, OUTER

$

$

Not available

32

Cub Cadet GG-0C4138

GASKET, EXHAUST

$

$

Not available

33

Cub Cadet GG-0D1667

ARM, GOVERNOR

$

$

Not available

34

Cub Cadet GG-0C2991

E-RING, GOVERNOR ARM

$

$

Not available

35

Cub Cadet GG-0C2988

THRUST WASHER, GOVERNOR

$

$

Not available

36

Cub Cadet GG-0C2992

BUSHING, GOVERNOR LOWER

$

$

Not available

37

Cub Cadet GG-0C2995

GEROTOR, INNER

$

$

Not available

38

Cub Cadet GG-0D4788

PLUG, DRAIN

$

$

Not available

39

Cub Cadet GG-0C2993

SEAL, GOVERNOR SHAFT

$

$

Not available

40

Cub Cadet GG-0C3007

SEAL, 42 I.D. CRANKSHAFT
(Superseded to GG-0K2035)

$

$

Not available

41

Cub Cadet GG-0C5732

ASSEMBLY, SUMP WITH SLEEVE
(Superseded to GG-0C57320SRV)

$232.99

$

Usually ships in 3-6 days

0

42

Cub Cadet GG-0C3006

SCREW, HHFC M10-1.5 X 55

$

$

Not available

43

Cub Cadet GG-080318

SCREW HHFC M6-1.0 X 25

$

$

Not available

44

Cub Cadet GG-0C2978

GASKET, HEAD

$9.99

$

Usually ships in 3-6 days

0

45

Cub Cadet GG-0C8808

HOOK, LIFTING

$

$

Not available

46

Cub Cadet GG-0D7477A

ASSEMBLY, ROCKER COVER W/

$

$

Not available

47

Cub Cadet GG-0C2979

GASKET, VALVE COVER

$

$

Not available

48

Cub Cadet GG-086515

KEEPER, VALVE SPRING

$

$

Not available

49

Cub Cadet GG-0D2274

RETAINER, VALVE SPRING

$

$

Not available

50

Cub Cadet GG-0D3867

SPRING, VALVE

$

$

Not available

51

Cub Cadet GG-078672

SEAL, VALVE STEM D7

$

$

Not available

52

Cub Cadet GG-0C5371

WASHER, VALVE SPRING

$

$

Not available

53

Cub Cadet GG-072694

STUD, ROCKER ARM PIVOT

$

$

Not available

54

Cub Cadet GG-0D3998

NUT, HEX M8-1.0 G8 YEL CHR

$

$

Not available

55

Cub Cadet GG-0E3273

SCREEN C'CASE BREATHER

$

$

Not available

56

Cub Cadet GG-0D5313

ROCKER ARM

$

$

Not available

57

Cub Cadet GG-0D6024

PLATE, PUSH ROD GUIDE

$

$

Not available

58

Cub Cadet GG-0C2976

SCREW HHFC M8-1.25 X 65

$

$

Not available

59

Cub Cadet GG-086516

VALVE, EXHAUST

$

$

Not available

60

Cub Cadet GG-0C2229

VALVE, INTAKE

$

$

Not available

61

Cub Cadet GG-083897

TAPPET, SOLID

$

$

Not available

70

Cub Cadet GG-0E4357H

ASSY,CRANKSHAFT & GEAR 100MM
(Superseded to GG-0E4357J)

$

$

Not available

71

Cub Cadet GG-0E3223

CON ROD

$

$

Not available

Cub Cadet GG-0D4015

KIT, OIL RELIEF

Note: (Includes Ref. No. 27, 28 & 29)

$

$

Not available

Cub Cadet GG-0D9422

KIT, GASKET
(Superseded to GG-0D40100ESV)

Note: (Includes Ref. No. 16A - 18)

$

$

Not available

Cub Cadet GG-0D4013

KIT, GOVERNOR ASSEMBLY
(Superseded to GG-0D40130SRV)

$29.99

$

Usually ships in 3-6 days

0

Cub Cadet GG-0D8675A

KIT, HEAD ASSEMBLY CYLINDER
(Superseded to GG-0H1760ASRV)

Note: (Includes Ref No. 7, 22, 32, 44, 47 - 54, 56, 58 - 60, 101)

$

$

Not available

Cub Cadet GG-0D8675B

KIT, HEAD ASSEMBLY CYLINDER
(Superseded to GG-0H1760BSRV)

Note: (Includes Ref. No. 21, 22, 32, 44, 47 - 54, 56, 58 - 60, 101)

$

$

Not available

Cub Cadet 01008498P

Replacement Engine

Note: Not shown

$

$

Not available
