GTV-760 - Generac 763cc Guardian Engine for Cub Cadet Muffler Mounting / Air Cleaner Parts Diagram

763cc Guardian Engine for Cub Cadet

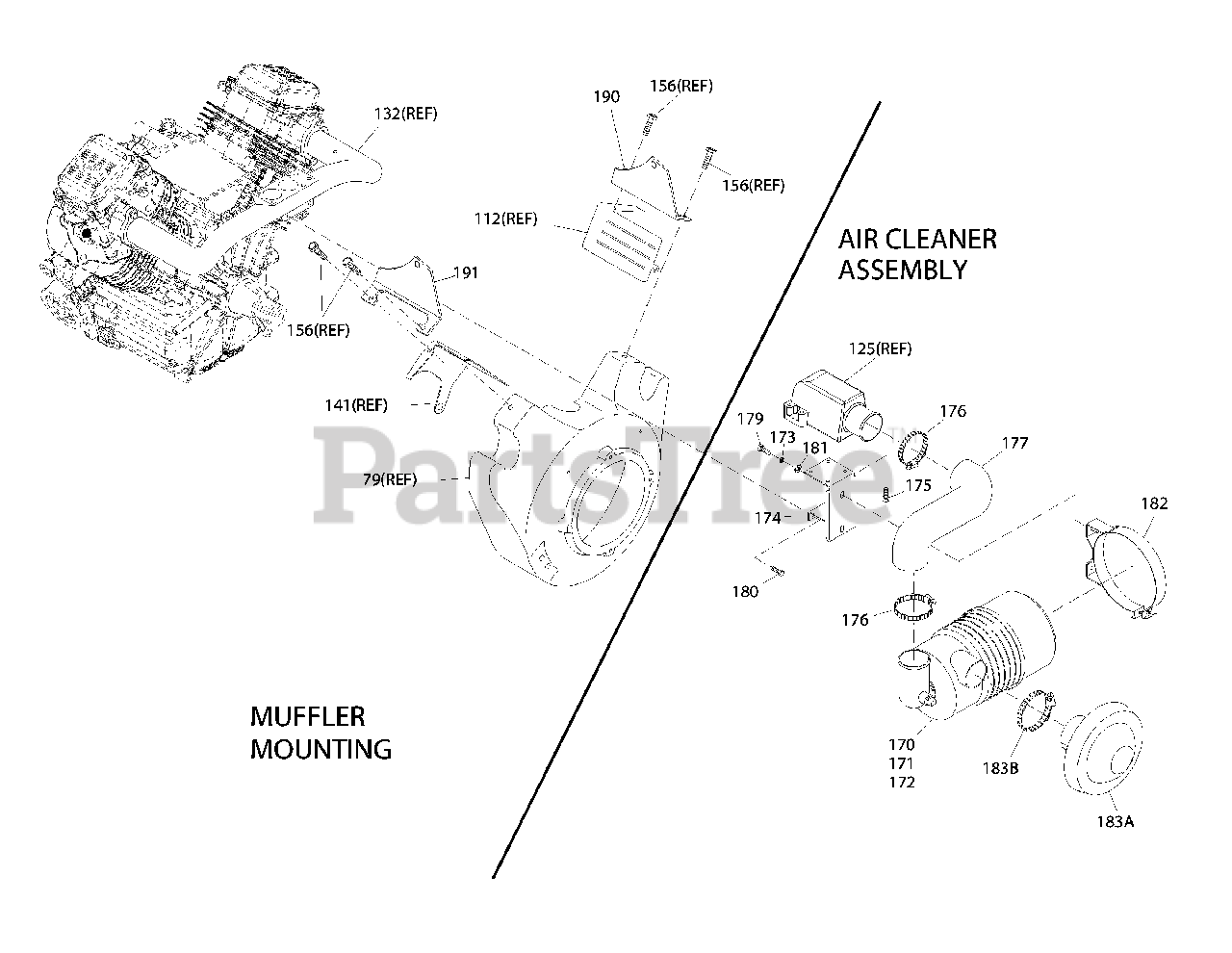

Muffler Mounting / Air Cleaner Parts Diagram

  • Title
170

Cub Cadet GG-0E3655

CLEANER, AIR W/SFTY FLT

$

$

Not available

171

Cub Cadet GG-0E3557

FILTER, AIR PRIMARY

$97.99

$

Usually ships in 3-6 days

0

172

Cub Cadet GG-0E3656

FILTER, AIR SAFETY (INNER)

$

$

Not available

173

Cub Cadet GG-022129

WASHER LOCK M8-5/16

$

$

Not available

174

Cub Cadet GG-0E2990

BRKT, AIR CLEANER SUPPORT

$

$

Not available

175

Cub Cadet GG-0E1644

SCREW BHSC M6-1.0 X 12 SS

$

$

Not available

176

Cub Cadet GG-0E1680

CLAMP HOSE #32 1.563-2.500

$

$

Not available

177

Cub Cadet GG-0E4326

HOSE AIR CLEANER

$

$

Not available

179

Cub Cadet GG-042907

SCREW HHC M8-1.25 X 16 G8.8

$

$

Not available

180

Cub Cadet GG-0D6147

SCREW HHFC M6-1.0 X 10 G8.8

$

$

Not available

181

Cub Cadet GG-022145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

182

Cub Cadet GG-0E1091

ASSY, BAND MOUNT AIR CLEANER

$

$

Not available

183A

Cub Cadet GG-0E0136A

HOOD, INLET

$

$

Not available

183B

Cub Cadet GG-0E0136B

CLAMP, HOSE

$

$

Not available

190

Cub Cadet GG-0E3502A

SUPPORT, MUFFLER LH

$

$

Not available

191

Cub Cadet GG-0E3502B

SUPPORT, MUFFLER RH

$

$

Not available
