GTL-140 - Echo String Trimmer (SN: 0001001 - 0010204) Engine, Crankcase, Intake, Exhaust, Air Cleaner, Ignition Parts Diagram

String Trimmer

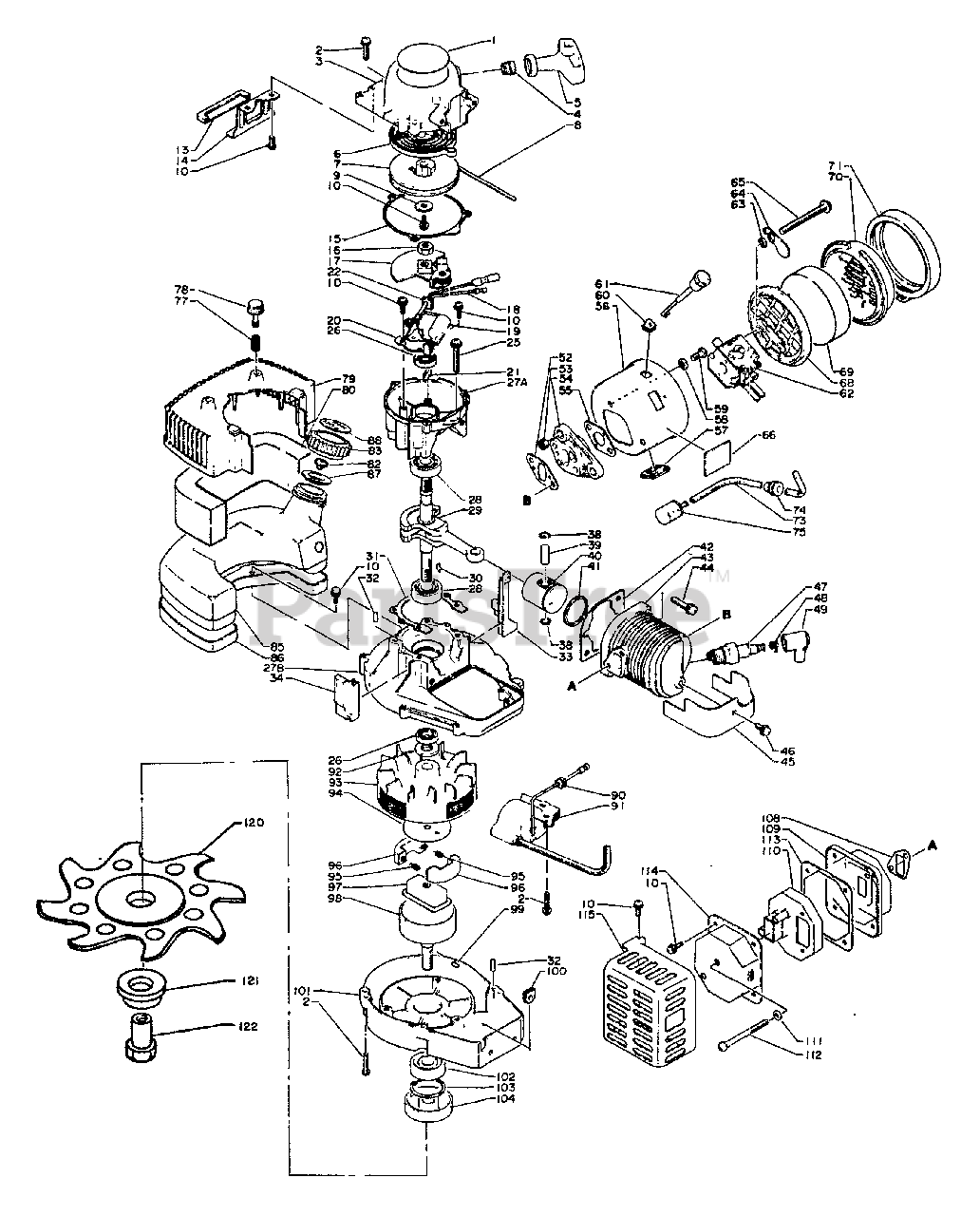

Engine, Crankcase, Intake, Exhaust, Air Cleaner, Ignition Parts Diagram

  • Title

1

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 8

0

2

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

Echo 17720007930

STARTER ASSY
(Superseded to Discontinued)

Note: Includes items 3 thru 9 and 10

$

$

Not available

3

Echo 17720907930

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

5

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

6

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 9

0

7

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

8

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 13

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

13

Echo 13192007930

CUSHION
(Superseded to Discontinued)

$

$

Not available

14

Echo 13191007930

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

15

Echo 10061504920

GASKET, STARTER
(Superseded to 10061504921)

$

$

Not available

16

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

17

Echo 17730504920

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 15050507930

LEAD
(Superseded to Discontinued)

$

$

Not available

19

Echo 15012704920

CONDENSER
(Superseded to Discontinued)

$

$

Not available

20

Echo 15010104920

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

21

Echo 15613403730

PAD, OIL
(Superseded to Discontinued)

$

$

Not available

22

Echo 15011404920

GROMMET

$1.49

$

In Stock, only 1 left!

0

25

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

26

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

27

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

Note: Includes items 27 and 32

$

$

Not available

27A

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

Note: Refer to Ref No. 27

$

$

Not available

27B

Echo 10020004920

CRANKCASE KIT
(Superseded to 10020004921)

Note: Refer to Ref No. 27

$

$

Not available

28

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

29

Echo 10010004920

CRANKSHAFT ASSY
(Superseded to 10010004921)

$

$

Not available

30

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

31

Echo 10024204920

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

32

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

33

Echo 10061407930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

34

Echo 10062507930

Dust seal plate (B)
(Superseded to Discontinued)

$

$

Not available

38

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

39

Echo 10001304920

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

40

Echo 10001007330

PISTON
(Superseded to Discontinued)

$

$

Not available

41

Echo 10001105930

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

42

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

$

$

Not available

43

Echo 10101104920

CYLINDER
(Superseded to Discontinued)

$

$

Not available

44

Echo 90024206022

SCREW - 6X22
(Superseded to Discontinued)

$

$

Not available

45

Echo 10151404920

SHIELD, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

46

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

47

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

48

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 15

0

49

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

52

Echo 13001004921

GASKET, INTAKE
(Superseded to 13001004922)

$

$

Not available

53

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

54

Echo 13001707930

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

55

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

56

Echo 13030607930

CASE, CARBURETOR
(Superseded to Discontinued)

Note: Includes items 56, 57 and 60

$

$

Not available

57

Echo 12901007930

GROMMET
(Superseded to Discontinued)

$

$

Not available

58

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

59

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

60

Echo 17881007930

GROMMET
(Superseded to Discontinued)

$

$

Not available

61

Echo 17851007930

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

62

Echo 12300007930

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

63

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

64

Echo 17851507930

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

65

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

66

------------------

UNKNOWN

$

$

Not available

68

Echo 13031907930

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

69

Echo 13031007930

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

70

Echo 13031307930

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

71

Echo 13034107930

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

73

Echo 13201007930

PIPE - FUEL
(Superseded to 13200707930)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

74

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

75

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$5.49

$

In Stock, Qty 20+

0

77

Echo 10062607930

SPRING
(Superseded to Discontinued)

$

$

Not available

78

Echo 10062407930

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

79

Echo 10061607930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

80

Echo 10062307930

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

Echo 13100404930

CAP ASSY
(Superseded to 13160010530)

Note: Includes items 10 and 109 thru 110, 113 & 114

$

$

Not available

82

Echo 13131400330

VENT

$11.99

$

In Stock, only 1 left!

0

83

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

85

Echo 13101007930

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

86

Echo 13191807930

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

87

Echo 13101504931

HOLDER, VENT
(Superseded to Discontinued)

$

$

Not available

88

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

90

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

91

Echo 15012607930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

92

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

93

Echo 15020004920

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

94

Echo 17501906530

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

95

Echo 17501806530

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

96

Echo 17501704630

SHOE, CLUTCH
(Superseded to 17501704631)

$21.99

$

In Stock, only 2 left!

0

97

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0

98

Echo 17500507930

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

99

Echo 90030530006

PIN - 3X6

$1.49

$

Usually ships in 2-4 days

0

100

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

101

Echo 10151107930

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

102

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 3 left!

0

103

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

104

Echo 61033307930

ADAPTOR, BLADE - UPPER
(Superseded to 61033307931)

$

$

Not available

108

Echo 14551004920

GASKET, EXHAUST
(Superseded to 14551021930)

$2.49

$

Usually ships in 2-4 days

0

Echo 14590007930

MUFFLER ASSY
(Superseded to Discontinued)

Note: Includes items 10 and 109 thru 110, 113, 114

$

$

Not available

109

Echo 14580607930

MUFFLER
(Superseded to Discontinued)

$

$

Not available

110

Echo 14580707930

SILENCER
(Superseded to Discontinued)

$

$

Not available

111

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

112

Echo 90022005052

SCREW - 5X55
(Superseded to Discontinued)

$

$

Not available

113

Echo 14586607930

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

114

Echo 14586107930

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

115

Echo 14562107930

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

120

Echo 69601407931

BLADE

$

$

Not available

121

Echo 61031407931

ADAPTOR, BLADE - LOWER
(Superseded to 61031407930)

$

$

Not available

122

Echo 61032007931

NUT
(Superseded to Discontinued)

$

$

Not available
