GTK 180 AR - Roper GT Garden Tractor, Part 2 STEERING Parts Diagram

GT Garden Tractor, Part 2

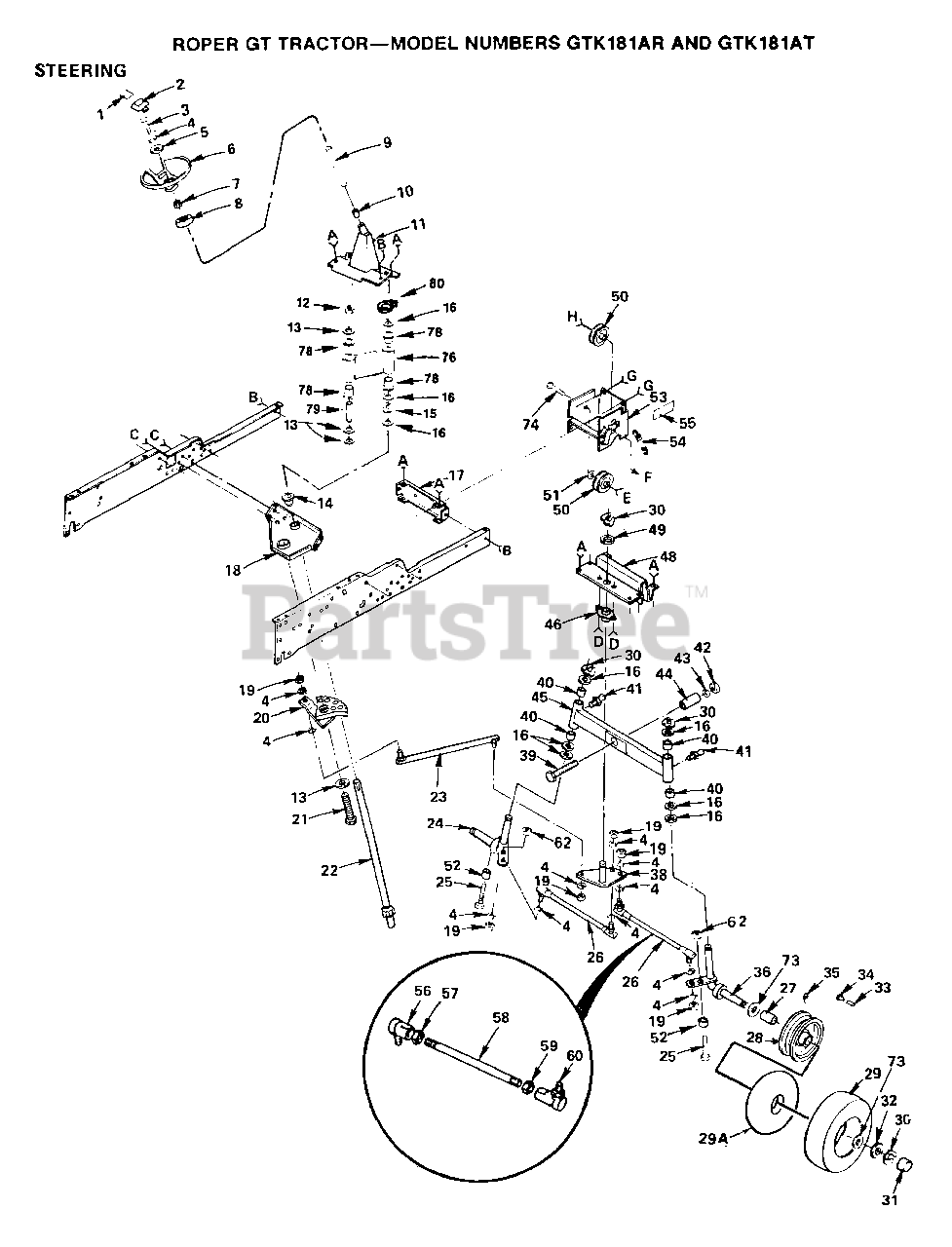

STEERING Parts Diagram

  • Title

1

Electrolux/AYP 104590X

DECAL - STEERING WHEEL

$

$

Not available

2

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

3

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

6

Electrolux/AYP 100713N

SUB= 150547

$

$

Not available

7

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

8

Electrolux/AYP 106943X

SPACER LT

$

$

Not available

9

Electrolux/AYP 108540X

TUBE
(Superseded to 582783401)

$3.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 9038R

"T, BEARING"
(Superseded to 532009038)

$

$

Not available

11

Electrolux/AYP 101274N

SUPPORT ASSY T
(Superseded to 532101274)

$

$

Not available

12

Electrolux/AYP 73680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

13

Electrolux/AYP 19172610

WASHER GT
(Superseded to 532126881)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 104239X

"FLANGE GT, BEAR."
(Superseded to 532104239)

$12.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 12000034

KLIP RING
(Superseded to 812000034)

$

$

Not available

16

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

17

Electrolux/AYP 5213J

FRAME BRACKET GT
(Superseded to 532005213)

$

$

Not available

18

Electrolux/AYP 102439X

SUB= 144668

$

$

Not available

19

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 120424X

SECTOR T
(Superseded to 532120424)

$

$

Not available

21

Electrolux/AYP 74780880

BOLT T
(Superseded to 874780880)

$2.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 104591X

SHAFT STEERING GT
(Superseded to 532104591)

$

$

Not available

23

Electrolux/AYP 110497X

LINK.DRAG.T
(Superseded to 532110497)

$

$

Not available

24

Electrolux/AYP 106046X

SPINDLE ASSY T
(Superseded to 532106046)

$

$

Not available

25

Electrolux/AYP 74520632

BOLT, HEX 3/8 - 16 X 2

$

$

Not available

26

Electrolux/AYP 109849X

TIE ROD T
(Superseded to 532109849)

$

$

Not available

27

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 106228X

SUB= 106228X417
(Superseded to 532148736)

$157.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 3938R

SUB= 122075X

$

$

Not available

29A

Electrolux/AYP 8134H

TUBE.16X6.5/7.5-8
(Superseded to 532008134)

$66.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

33

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

34

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 106045X

SPINDLE RH T
(Superseded to 532106045)

$

$

Not available

38

Electrolux/AYP 108137X

"T, BELLCRANK"
(Superseded to 532108137)

$

$

Not available

39

Electrolux/AYP 74781044

BOLT
(Superseded to 874781044)

$

$

Not available

40

Electrolux/AYP 1309H

BRNG. T
(Superseded to 583674001)

$51.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 73221000

NUT X
(Superseded to 873221000)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 10041000

WASHER
(Superseded to 810041000)

$2.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 5298J

SUB= 136518

$

$

Not available

45

Electrolux/AYP 674A243

AXLE ASSEMBLY

$

$

Not available

46

Electrolux/AYP 5292J

SUB= 140342
(Superseded to 532005292)

$

$

Not available

48

Electrolux/AYP 5284J

AXLE BRACKET T
(Superseded to 532005284)

$

$

Not available

49

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 677A451

IDLER-INSIDE T
(Superseded to 532124858)

$

$

Not available

51

Electrolux/AYP 19132007

WASHER T
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 110946X

STOP T

$

$

Not available

53

Electrolux/AYP 120542X

IDLER BRKT T
(Superseded to 532120542)

$

$

Not available

54

Electrolux/AYP 7190J

SPRING
(Superseded to 532007190)

$

$

Not available

55

Electrolux/AYP 108367X

DECAL T

$

$

Not available

56

Electrolux/AYP 8922R

SUB= 109851X

$

$

Not available

57

Electrolux/AYP 73700600

NUT
(Superseded to 873700600)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 7919J

SUB= 121159X

$

$

Not available

59

Electrolux/AYP 73360600

NUT
(Superseded to 873360600)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 8921R

SUB= 109850X

$

$

Not available

62

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 19252616

SUB= 121748X

$

$

Not available

74

Electrolux/AYP 74760632

SUB= 74930632

$

$

Not available

76

Electrolux/AYP 120195X

SUB= 121177X

$

$

Not available

78

Electrolux/AYP 120200X

NYLINER T
(Superseded to 583661601)

$9.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 120448X

CLAMP T

$

$

Not available
