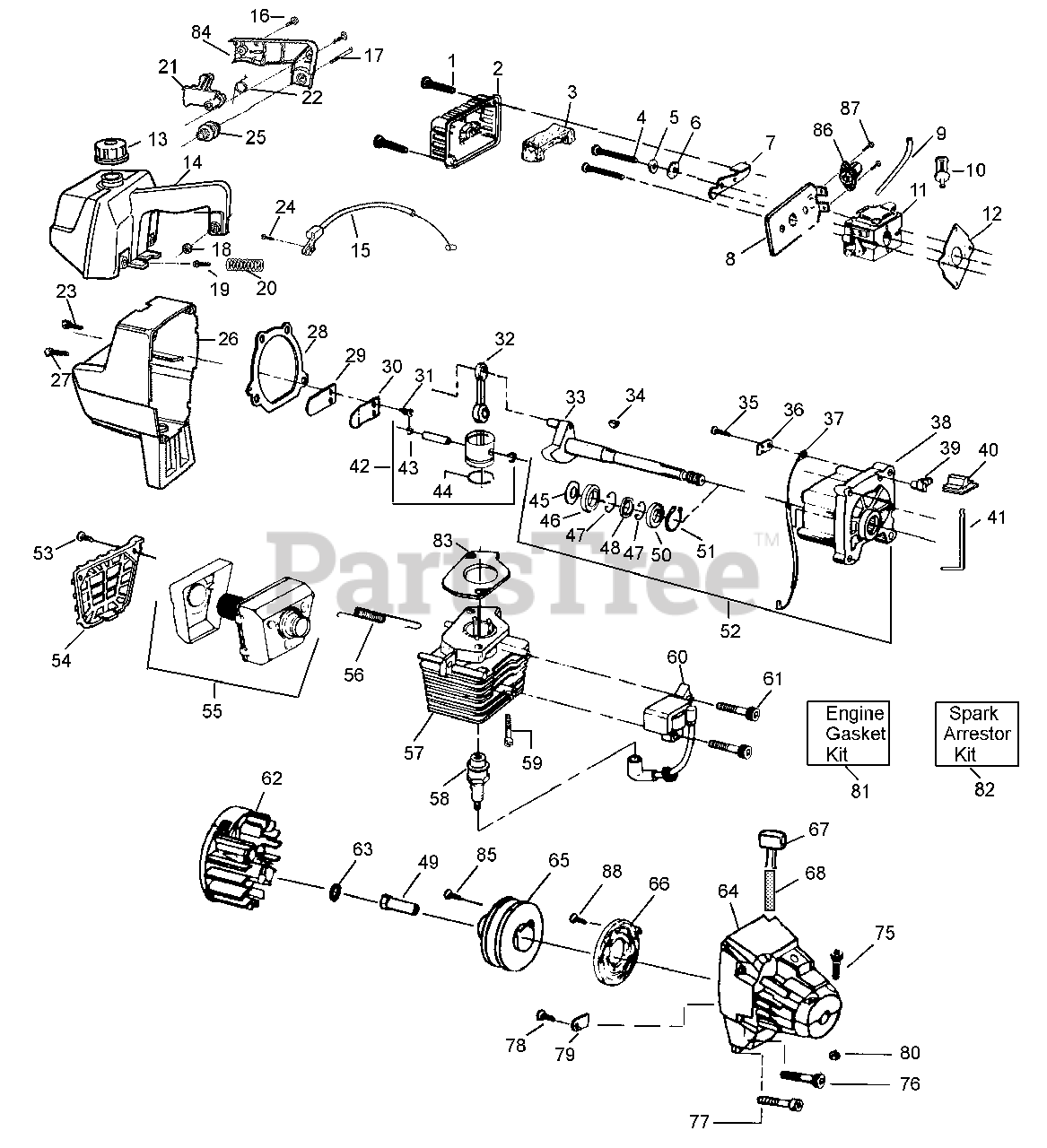

GTI 52 - Weed Eater String Trimmer Power Unit Parts Diagram

String Trimmer

Power Unit Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Choke Shutter

$

$

Not available

8

Poulan 530027527

Air Filter Plate Type 1

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 530037930

Air Filter Plate Type 2 & 3

$

$

Not available

9

Poulan 530069247

Fuel Line Kit - Fuel Line

$7.99

$

In Stock, Qty 20+

0

9

Poulan 530069238

Fuel Line Kit - Return Line Type 2 & 3

$

$

Not available

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

11

Poulan 530069637

Carburetor Type 1 (WA-217)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

11

Poulan 530069568

Carburetor Type 2 & 3 (WA-219B)

$

$

Not available

12

Poulan 530019156

Carburetor Gasket

Note: (Included in Engine Gasket Kit, P/N 530-069276)

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

14

Poulan 530029552

Handle & Tank Ass'y. Type 1

$

$

Not available

14

Poulan 530047102

Handle & Tank Ass'y. Type 2 & 3

$

$

Not available

15

Poulan 530027964

Throttle Cable Ass'y. Type 1
(Superseded to 530037499)

$

$

Not available

15

Poulan 530037499

Throttle Cable Ass'y. Type 2 & 3

$

$

Not available

16

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

17

Poulan 530015809

Screw

$

$

Not available

18

Poulan 530015807

Nut

$

$

Not available

19

Poulan 530015713

Screw

$

$

Not available

20

Poulan 530027926

Rear Isolator Spring

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530027924

Throttle Trigger

$

$

Not available

22

Poulan 530027925

Throttle Spring

$

$

Not available

23

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

24

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530024256

Isolator

$

$

Not available

26

Poulan 530027923

Shroud

$

$

Not available

27

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

28

Poulan 530019154

Gasket

Note: (Included in Engine Gasket Kit, P/N 530-069276)

$3.99

$

In Stock, only 1 left!

0

29

Poulan 530027593

Reed

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

31

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

32

Poulan 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

33

Poulan 530010945

Crankshaft Ass'y.

Note: (See Service Ref. 1)

$43.99

$

Usually ships in 3-10 days

0

34

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530027547

Lead Wire

$

$

Not available

38

Poulan 530014016

Crankcase Ass'y.

Note: (Incl. 46,47,48 & 50)

$

$

Not available

39

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530038309

Switch Button

$4.99

$

In Stock, Qty 8

0

41

Poulan 530027959

Switch Spring

$

$

Not available

42

Poulan 530069275

Piston Kit
(Superseded to 530069899)

Note: (Incl. 43,44 & pin)

$

$

Not available

43

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

44

Poulan 530025875

Piston Ring

$

$

Not available

45

Spacer

Note: (See Service Ref. 1)

$

$

Not available

46

Poulan 530032103

Inner Bearing

$

$

Not available

47

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 530027953

Drive Coupling

$

$

Not available

50

Poulan 530032102

Outer Bearing

$

$

Not available

51

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530014004

Crankcase & Crankshaft Ass'y.

Note: (Incl. 33,38 & 46-51)

$

$

Not available

53

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

56

Poulan 530036409

Muffler Spring

$

$

Not available

57

Poulan 530069626

Cylinder

$

$

Not available

58

Poulan 530030077

Spark Plug Type 1 & 2 (CJ-14)

$

$

Not available

58

Poulan 530030075

Spark Plug Type 3 (RCJ-8Y)

$

$

Not available

59

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530039134

Ignition Module Kit

$

$

Not available

61

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

62

Poulan 530047198

Flywheel Ass'y.

$

$

Not available

63

Poulan 530015828

Washer

$4.99

$

Usually ships in 3-10 days

0

64

Poulan 530014044

Fan Housing

$21.99

$

Usually ships in 3-10 days

0

65

Poulan 530069291

Starter Pulley
(Superseded to 530071387)

Note: (Incl. 85)

$

$

Not available

66

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

67

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

75

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

76

Poulan 530015770

Screw

$

$

Not available

77

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

78

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

79

Poulan 530027523

Pulley Retainer

$7.49

$

In Stock, only 2 left!

0

80

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

81

Poulan 530069276

Engine Gasket Kit

Note: (Includes items 12,28,83)

$

$

Not available

82

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

83

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

Note: (Included in Engine Gasket Kit, P/N 530-069276)

$4.99

$

In Stock, only 4 left!

0

84

Poulan 530027917

Handle Cover

$

$

Not available

85

Poulan 530016080

Screw - Pulley

$6.49

$

Usually ships in 3-10 days

0

86

Poulan 530038874

Primer Bulb Ass'y. Type 2 & 3

$

$

Not available

87

Poulan 530016091

Screw - Primer Type 2 & 3

$4.99

$

In Stock, only 1 left!

0

88

Poulan 530015882

Screw - Starter Spring - Type 3

$

$

Not available

Poulan 530027970

Instruction Decal Type 1

$2.49

$

Usually ships in 3-10 days

0

Poulan 530037742

Instruction Decal Type 2 (Not a serviceable part)

$

$

Not available

Poulan 530038843

Instruction Decal Type 3 (Not a serviceable part)

$2.49

$

Usually ships in 3-10 days

0
