GTI 16 SUPER - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

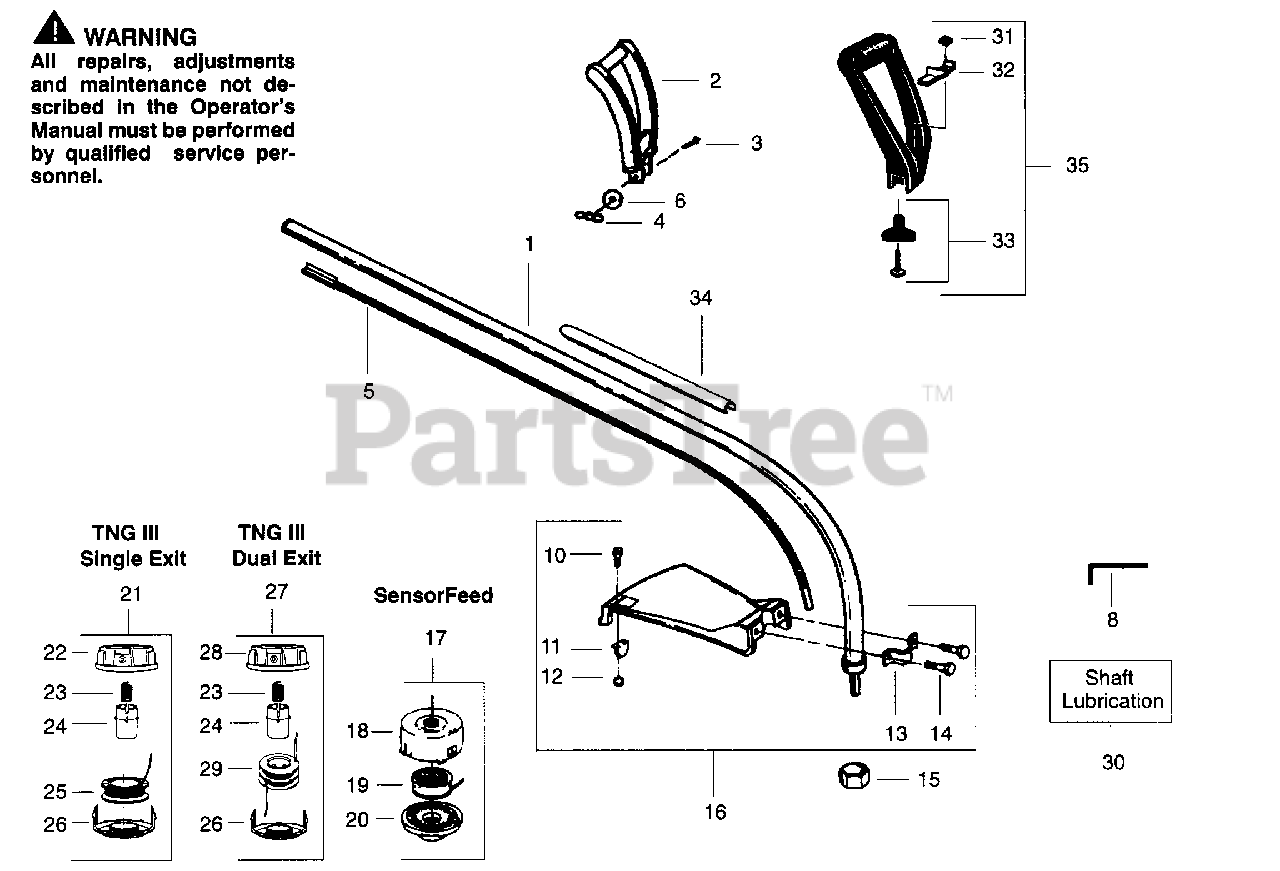

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530094680

Drive Shaft Housing, Models GTI 16 & GTI 16 SUPER

$

$

Not available

1

Poulan 530095133

Drive Shaft Housing, Model GTI 17LE

$

$

Not available

1

Poulan 530095342

Drive Shaft Housing Model GTI 16D

$

$

Not available

2

Poulan 530010957

Handle Ass'y.Model GTI 16 Type 1 & 2

$

$

Not available

3

Poulan 530340228

Bolt

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530091373

Wing Nut

$2.49

$

In Stock, Qty 20+

0

5

Poulan 530094676

Drive Shaft, Models GTI 16, GTI 16 SUPER & GTI 16D

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 530094679

Drive Shaft, Model GTI 17LE

$

$

Not available

6

Poulan 530092062

Washer

$

$

Not available

8

Poulan 530031111

Hex Wrench (5/32")
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

12

Poulan 534235901

Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530093653

Bracket

$3.99

$

In Stock, only 1 left!

0

14

Poulan 530016107

Screw

$3.99

$

In Stock, Qty 11

0

15

Poulan 530094543

Dust Cup

$

$

Not available

16

Poulan 530069249

Shield Kit Ass'y. (Incl. 10-12 & 14) Models GTI 16, GTI 16 SUPER & GTI 16D

$

$

Not available

16

Poulan 530069299

Shield Kit Ass'y. (Incl. 10-12 & 14) Model GTI 17LE

$

$

Not available

17

Poulan 952701605

Cutting Head Ass'y, (incl. 18-20) Model GTI 16 SUPER

$25.99

$

Usually ships in 3-10 days

0

18

Poulan 530094592

Hub Ass'y, Model GTI 16 SUPER

$

$

Not available

19

Poulan 952701607

Spool w/Line, Model GTI 16 SUPER

$7.99

$

Usually ships in 3-10 days

0

20

Poulan 530094494

Cover, Model GTI 16 SUPER

$

$

Not available

21

Poulan 952701628

Cutting Head Ass'y, (Incl. 22-26) Models GTI 16 & GTI 17LE
(Superseded to 695000824)

$

$

Not available

22

Poulan 530094878

Hub Ass'y, Models GTI 16 & GTI 17LE

$

$

Not available

23

Poulan 530094830

Spring, Models GTI 16,GTI 16D & GTI 17LE

$3.99

$

In Stock, Qty 20+

0

24

Poulan 530094827

Release Button, Models GTI 16,GTI 16D, GTI 17LE

$

$

Not available

25

Poulan 952701619

Spool w/Line, Models GTI 16 & GTI 17LE

$

$

Not available

26

Poulan 530094828

Cover, Models GTI 16,GTI 16D & GTI 17LE

$

$

Not available

27

Poulan 952701664

Dual Line Cutting Head, Model GTI 16D (Incl. 23,24,26,28,&29)

$

$

Not available

28

Poulan 530069694

Hub Ass'y, Model GTI 16D

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 952701665

Dual Spool w/Line, Model GTI 16D
(Superseded to 530095255)

$

$

Not available

30

Poulan 952030139

Shaft Lubrication
(Superseded to 952701570)

$

$

Not available

31

Poulan 530015610

Nut

$0.99

$

Usually ships in 3-10 days

0

32

Poulan 530094742

Clamp

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

34

Poulan 530029159

Decal- Drive Shaft, Models GTI 16, GTI 17LE & GTI 16 SUPER

$

$

Not available

34

Poulan 530047899

Decal- Drive Shaft, Model GTI 16D

$

$

Not available

35

Poulan 530069496

Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3

$

$

Not available
