GTH 52 XLS (960450057-00) - Husqvarna Garden Tractor (2015-08) ENGINE Parts Diagram

Garden Tractor

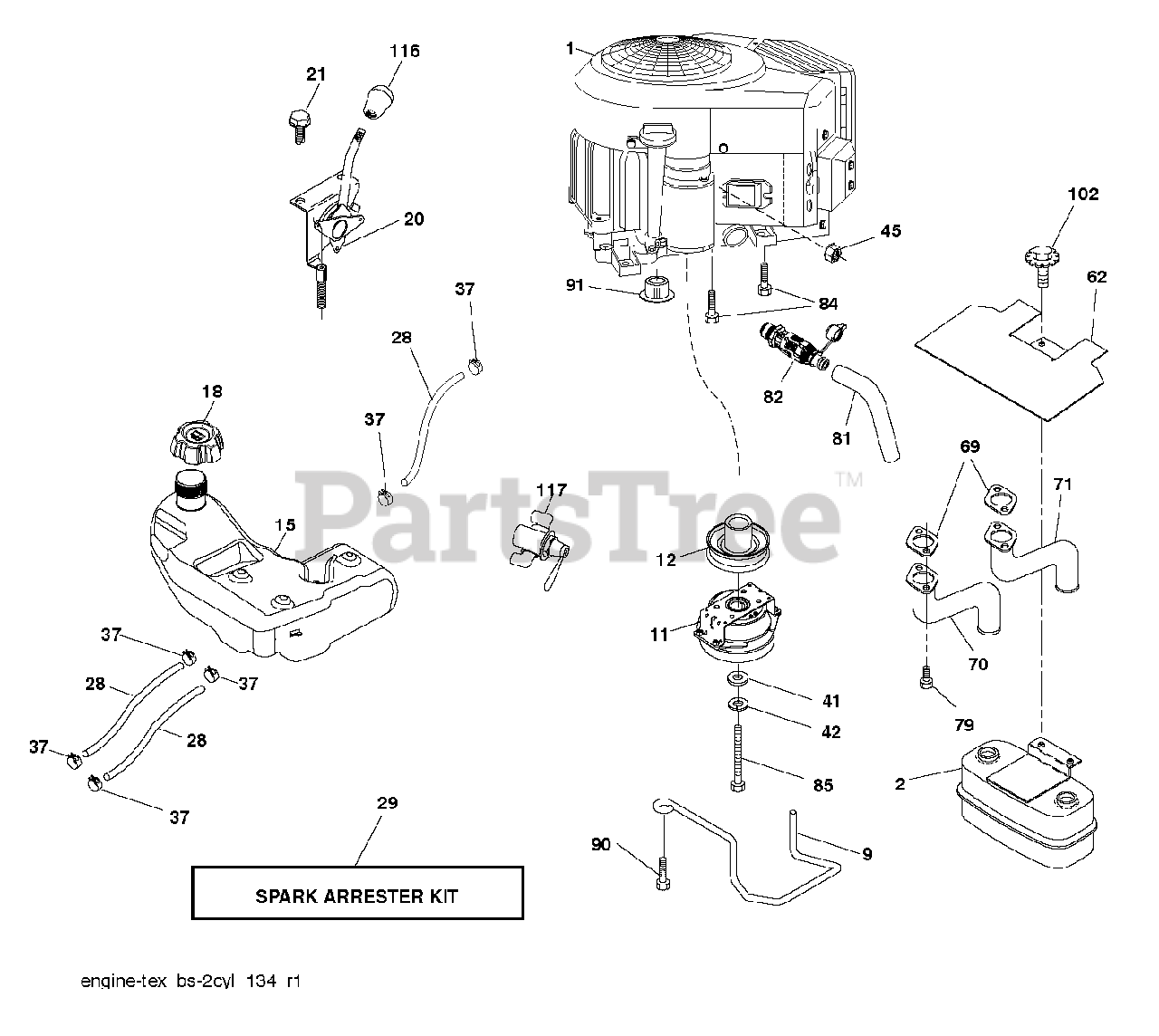

ENGINE Parts Diagram

  • Title
1

000000000

Note: ENGINE B S MODEL NO 44N877-0005-G1 (501260101)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 584908001

KEEPER BELT ENGINE
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$278.99

$

In Stock, only 1 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532438082

TANK.ASSY.4.GAL.2.PORT.EPA
(Superseded to 529999002)

$284.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$20.99

$

In Stock, only 1 left!

0

20

Husqvarna 587242701

THROTTLE.PRO.RSTART. 38

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 581636201

BOLT.HEX.7/16-20X3.0XGR5

$5.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 2 left!

0
