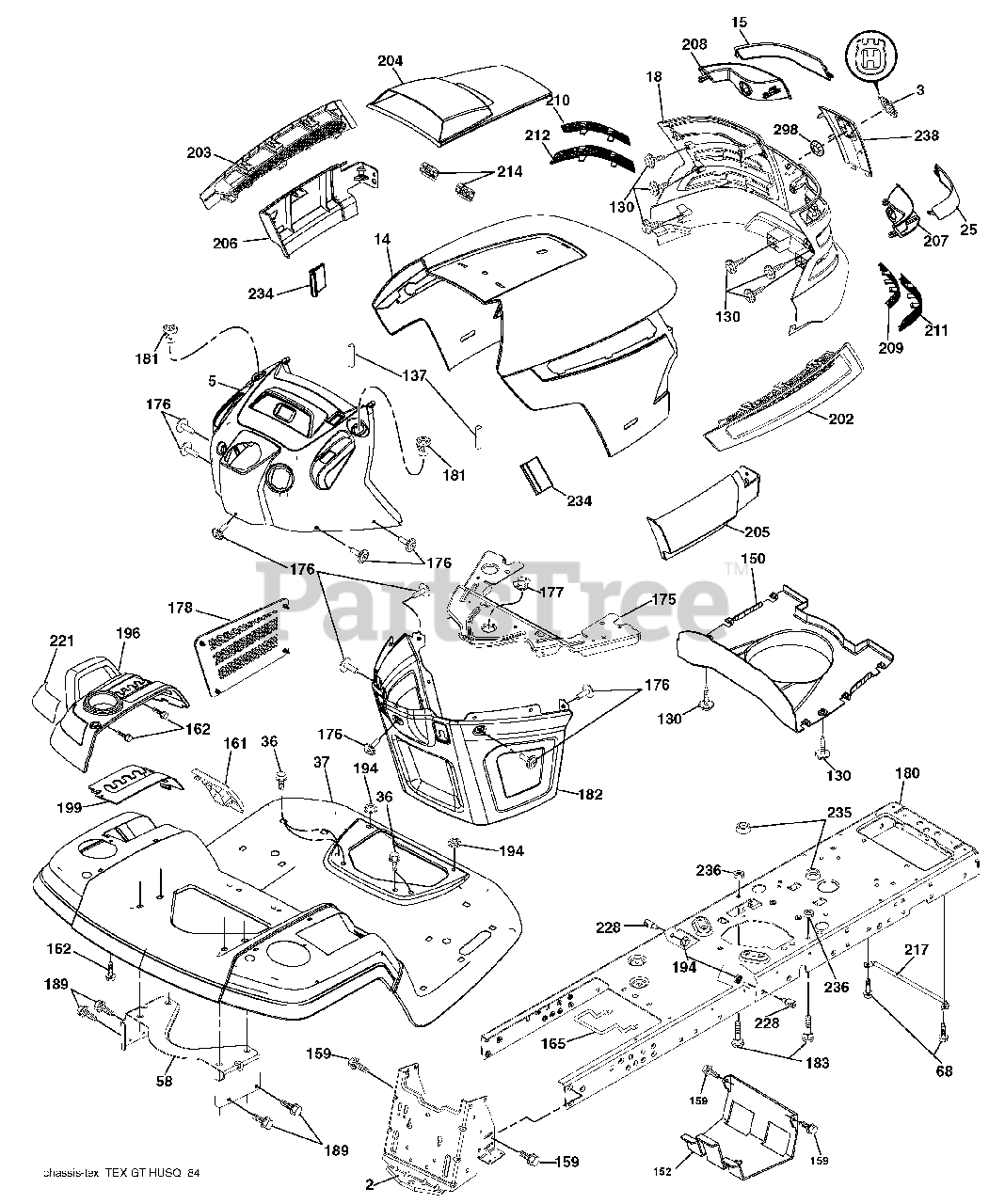

GTH 27 V52 LS (960430091-00) - Husqvarna Garden Tractor (2010-04) Chassis Parts Diagram

Garden Tractor

Chassis Parts Diagram

  • Title
2

Husqvarna 532194261

Drawbar
(Superseded to 580434401)

$120.99

$

In Stock, only 1 left!

0

3

Husqvarna 532405012

Logo Husq.
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

$72.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532411046

Hood
(Superseded to 532442396)

$

$

Not available

15

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532408607

Grille Asm

$

$

Not available

25

$44.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

Fender
(Superseded to 532441208)

$250.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

Bracket Fender

$27.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$6.49

$

In Stock, Qty 6

0

150

Husqvarna 532198512

Duct Heat Hood

$40.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532194329

Shield Browning/Debris

$20.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

161

Husqvarna 532401826

Console Fuel Window

$7.99

$

In Stock, Qty 5

0

162

Husqvarna 532142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532194330

Bracket Support Tank

$20.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8 Wshd Qdrx

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

Bushing Steering

$6.99

$

In Stock, Qty 15

0

178

Husqvarna 532199782

Cargo Asm. Net

$34.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532194260

Chassis
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo.

$

$

Not available

182

Husqvarna 532406859

Dash Lower

$96.99

$

In Stock, only 2 left!

0

183

Husqvarna 874520520

Bolt 5/16-18 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Husqvarna 532417778

Console Asm. Deck Lift
(Superseded to 532439674)

$96.99

$

In Stock, only 1 left!

0

199

Husqvarna 532198259

Plate Deck Lift

$26.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532416613

Vent Asm Hood Top
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$7.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

$26.99

$

Usually ships in 3-10 days

0

208

$20.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199130

Insert Hex Top RH

$5.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$3.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

Clip Retainer

$6.49

$

In Stock, only 4 left!

0

217

$13.99

$

In Stock, only 2 left!

0

221

Husqvarna 532198909

Reflector LH

$17.99

$

In Stock, only 1 left!

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available

234

Husqvarna 532404742

Bumper Hood

$6.99

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Center Lock 5/16-18 unc

$7.49

$

In Stock, only 1 left!

0

238

Husqvarna 532408606

Trim Husq.

$20.99

$

Usually ships in 3-10 days

0

298

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532431882

Kit Gaurd Brush
(Superseded to 505568813)

$153.99

$

Usually ships in 3-10 days

0
