GTH 2654 (960250001-01) - Husqvarna 54" Garden Tractor (2005-06) Steering Assembly Parts Diagram

54" Garden Tractor

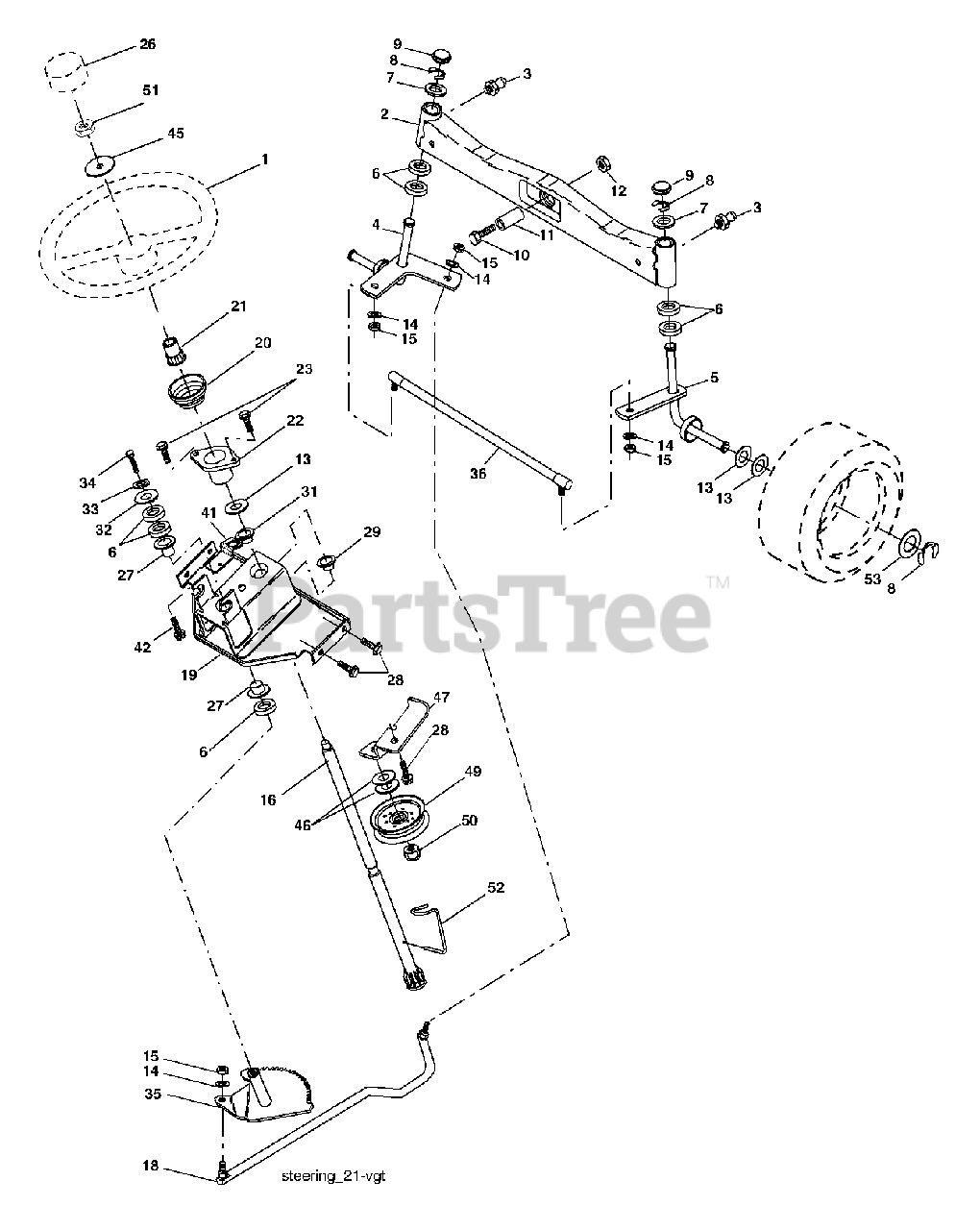

Steering Assembly Parts Diagram

  • Title

1

Husqvarna 532193651

Wheel, Steering
(Superseded to 532186094)

$

$

Not available

2

Husqvarna 532178557

Axle Asm., Front

$

$

Not available

3

Husqvarna 532183226

Fitting, Grease

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532161849

Spindle Asm, LH

$

$

Not available

5

Husqvarna 532161848

Spindle Asm., RH

$

$

Not available

6

Husqvarna 532124931

Bearing, Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

Ring, Klip #T5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 874781044

Bolt, Fin Hex 5/8-11 x 2-3/4

$

$

Not available

11

Husqvarna 532136518

Spacer Brg Axle Front 1.570

$9.99

$

In Stock, only 1 left!

0

12

Husqvarna 873901000

Nut, Lock Flange 5/8-11 unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040600

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532186814

Shaft Asm., Steering

$100.99

$

In Stock, Qty 5

0

18

Husqvarna 532187799

Draglink, Vgt

$93.99

$

In Stock, only 1 left!

0

19

Husqvarna 532156011

Support Asm., Steering Vgt

$

$

Not available

20

Husqvarna 532177592

Boot Steering
(Superseded to 532163887)

$

$

Not available

21

Husqvarna 532186737

Adapter, Wheel Steering
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Husqvarna 532155105

Bushing, Strg.
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

23

Husqvarna 532152927

Screw

$7.49

$

In Stock, only 2 left!

0

26

Husqvarna 532193652

Cap, Wheel Steering

$13.99

$

In Stock, Qty 5

0

27

Husqvarna 532124937

Bearing, Col. Strg.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 532104239

Bearing, Flange

$12.99

$

In Stock, only 1 left!

0

31

Husqvarna 532138136

Bushing, Nyliner Snap

$10.99

$

In Stock, only 1 left!

0

32

Husqvarna 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 810040500

Washer, Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 874780512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532187039

Gear, Sector Steering

$

$

Not available

36

Husqvarna 532186799

Tie Rod

$87.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532155246

Bracket Switch Inerlock VGT97

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 819183812

Washer 9/16 ID x 2-3/8 OD 12 G Zin

$9.49

$

Usually ships in 3-10 days

0

46

Husqvarna 819131610

Washer 13/32 x 1 x 10 Ga.

$6.49

$

In Stock, Qty 7

0

47

Husqvarna 532179471

Bracket Asm. Idler

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532175820

Pulley Idler Flat

$

$

Not available

50

Husqvarna 873900600

Nut Lock Flg 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 unf

$7.49

$

In Stock, only 4 left!

0

52

Husqvarna 532175553

Clip Steering .750

$13.99

$

In Stock, only 1 left!

0

53

Husqvarna 532188967

Washer Harden .793 x 1.63 x 060

$4.99

$

In Stock, Qty 20+

0
