GTH 2648 - Husqvarna 48" Garden Tractor (2008-02) CHASSIS / FRAME Parts Diagram

48" Garden Tractor

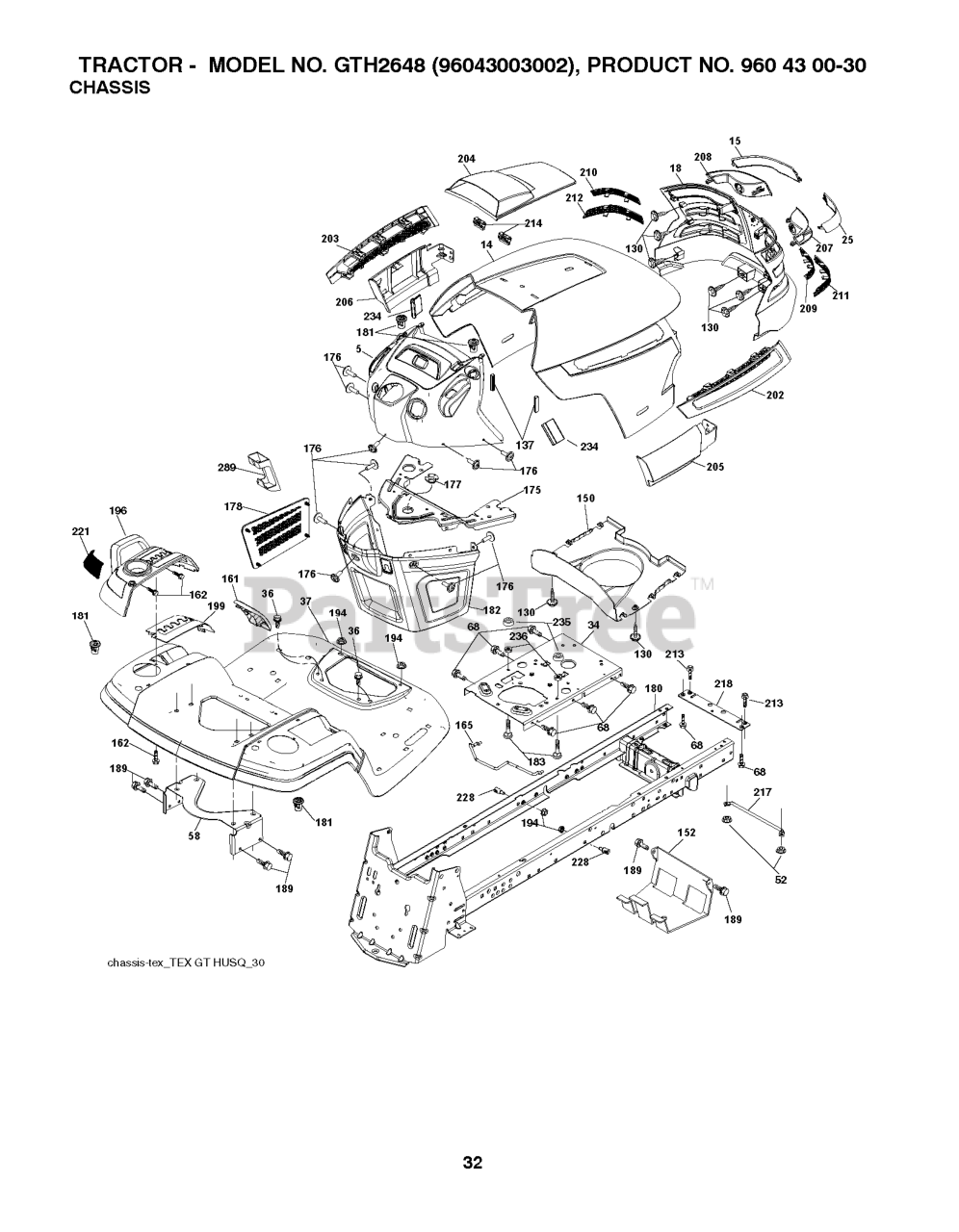

CHASSIS / FRAME Parts Diagram

  • Title
202

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

Note: RH

$

$

Not available

183

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

Note: LH

$3.49

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532408607

GRILL.ASM.HUSQ.TG/CRD.W/TRIM

$

$

Not available

209

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

Note: RH

$5.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

206

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

Note: LH

$

$

Not available

25

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

Note: RH

$44.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532416615

VENT.ASM.TORPHD.HUSQGT.LOGO.CL

$19.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532198512

AIR.DUCT.HOOD.TEX.GT.HUSQ

$40.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

FENDER.PNT.TX.GT.CH/FW.ORANGE
(Superseded to 532441208)

$250.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

Note: RH

$7.99

$

Usually ships in 3-10 days

0

196

Husqvarna 532400299

RP CONSOLE.ASM.DECKLFT.W/
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$34.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

Note: LH

$17.99

$

In Stock, only 1 left!

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

Note: LH

$20.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

161

Husqvarna 532401826

CONSOLE.FUEL.WINDOW.HU

$7.99

$

In Stock, Qty 5

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

210

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

Note: LH

$

$

Not available

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

180

Husqvarna 532195477

CHASSIS.GT.SLOPED.DRAWBAR.
(Superseded to 582033001)

$284.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532408701

DASH.ASM.HUSQ.GT.E.RECT.W/CK

$

$

Not available

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

177

Husqvarna 532195227

BUSHING, STEERING

$6.99

$

In Stock, Qty 15

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

Note: LH

$44.99

$

In Stock, Qty 5

0

207

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

Note: RH

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532411046

HOOD
(Superseded to 532442396)

$

$

Not available

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

Note: RH

$2.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.

$

$

Not available

289

Husqvarna 532403571

PLUG.N/CRUISE.COMMON.YT/GT.BLK

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

203

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

Note: LH

$

$

Not available
