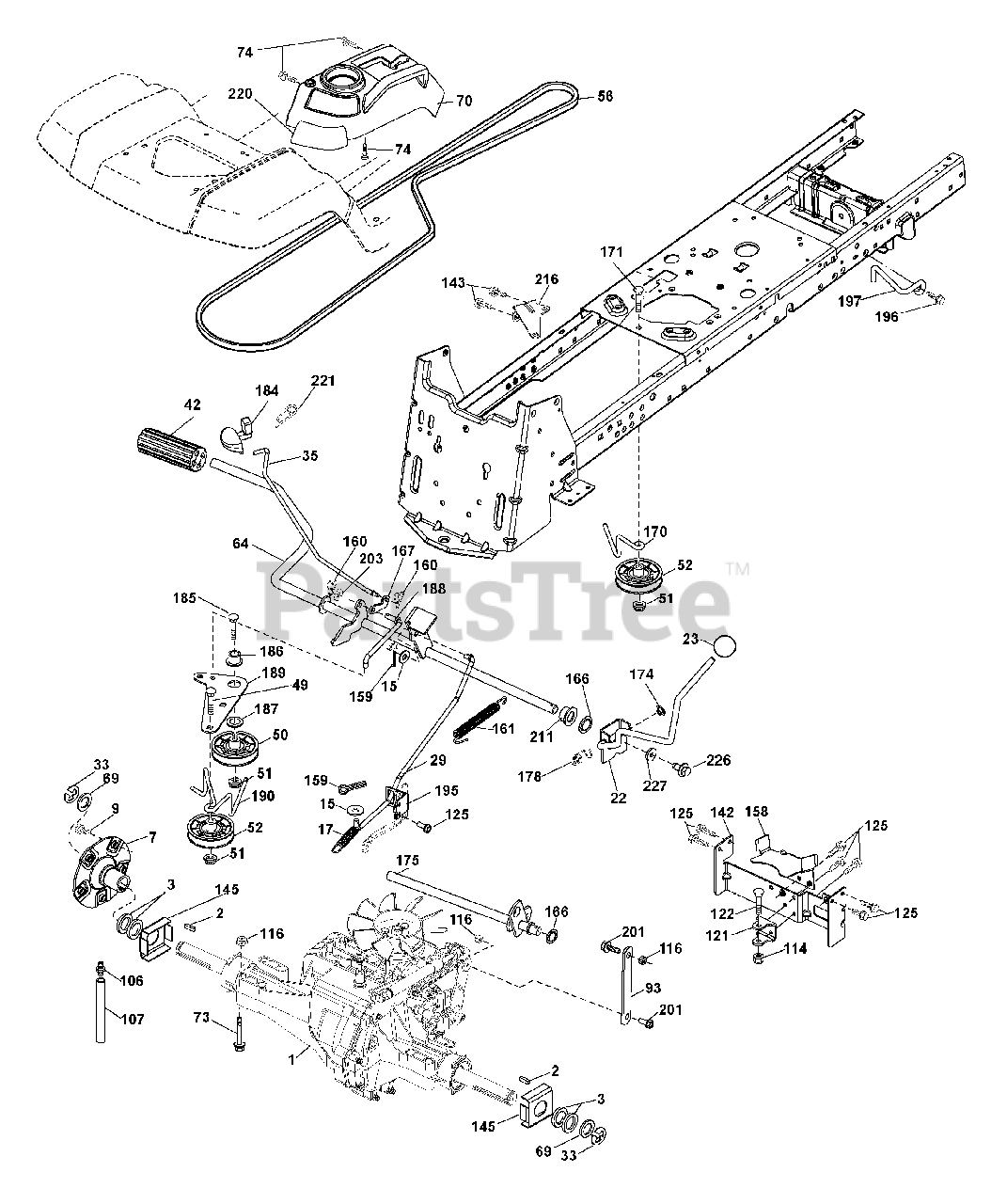

GTH 2648 (960430030-00) - Husqvarna 48" Garden Tractor (2006-12) Drive Parts Diagram

48" Garden Tractor

Drive Parts Diagram

  • Title
1

Transaxle

Note: Hydro 344-3000 (Order Parts from Transaxle Manufacturer)

$

$

Not available

2

Husqvarna 532007070

Key 1/4 x 2.5

$6.49

$

Usually ships in 3-10 days

0

$8.99

$

In Stock, only 1 left!

0

7

Husqvarna 532199837

Hub Asm. Wheel

$78.99

$

In Stock, Qty 6

0

9

Husqvarna 532140080

Bolt Hub Wheel

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

Spring, Brake

$6.99

$

In Stock, only 1 left!

0

22

Husqvarna 532400504

Shifter Rod

$31.99

$

Usually ships in 3-10 days

0

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532197269

Rod, Brake

$27.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532199591

Rod, Brake, Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$20.99

$

In Stock, Qty 16

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910 Offset

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532165813

V-Belt, Drive

$84.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532196200

Shaft Asm. Pedal Brake Control

$56.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532123800

Washer 11/32 x 1-5/8 x 16 Ga.

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532400298

Control Asm.
(Superseded to 532439660)

$91.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490548

Bolt Hex Flghd 5/16-18 x 3.00

$6.49

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532196213

Link Shift

$

$

Not available

106

Husqvarna 532142917

Cap Asm. Vent
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

107

$

$

Not available

114

Husqvarna 873800500

Nut Lock Hex w/Insert 5/16-18 unc

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 532175611

Bracket Strap Torque

$7.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

Bolt 5/16 - 18 x 2.50

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

142

Husqvarna 532404483

Strap Torque

$

$

Not available

143

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532163168

Washer Axle flange

$15.99

$

In Stock, only 3 left!

0

158

Husqvarna 532194351

Keeper Belt

$

$

Not available

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532195403

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532197290

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532194322

Keeper Belt Centerspan

$7.49

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

174

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532196204

Shaft Asm Shift

$

$

Not available

178

Husqvarna 532197456

Spring Shift

$6.49

$

Usually ships in 3-10 days

0

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110620

Bolt Rdhd Sqnk 3/8-16 x 2-1/2

$4.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

Spacer Retainer

$9.49

$

In Stock, Qty 9

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Dr.

$8.99

$

In Stock, only 2 left!

0

195

Husqvarna 532405113

Bracket Rod Brake

$

$

Not available

196

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 532199769

Bracket Clutch Anti-Rotation

$8.99

$

In Stock, only 4 left!

0

201

Husqvarna 532169612

Bolt Shoulder 5/16-18 unc
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

203

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

211

$6.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.99

$

In Stock, only 1 left!

0

220

Husqvarna 532198908

Reflector RH

$17.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, only 2 left!

0

226

Husqvarna 874780716

Bolt Fin Hex 7/16 - 14 x 1 GR5

$4.99

$

Usually ships in 3-10 days

0

227

Husqvarna 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532403571

Phone Holder

$4.99

$

Usually ships in 3-10 days

0
