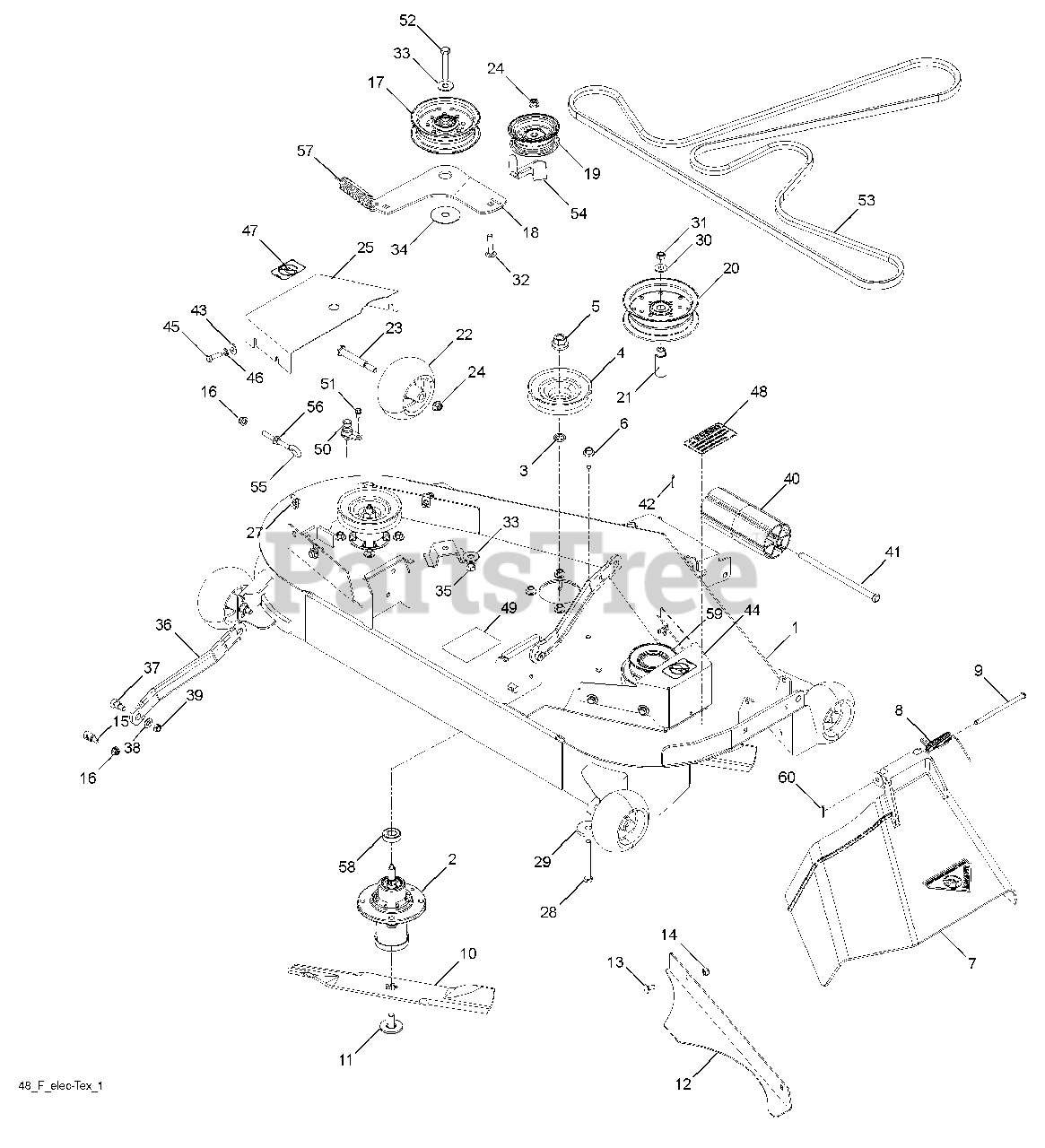

GTH 26 V48 LS (960430090-00) - Husqvarna Garden Tractor (2009-12) Mower Deck Parts Diagram

Garden Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 575438002

Deck w/ Decals 48"
(Superseded to 588826101)

$

$

Not available

2

Husqvarna 539112170

Housing Assembly

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

Washer-Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 9

0

4

Husqvarna 532174375

Pulley, Mandrel

$39.99

$

In Stock, Qty 10

0

5

Husqvarna 539107590

Nut, 9/16 Top Center Lock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 539107630

Screw, Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532110732

Discharge Chute, 48"
(Superseded to 539110732)

$53.99

$

In Stock, only 4 left!

0

8

Husqvarna 532110735

Spring - Torsion
(Superseded to 539110735)

$

$

Not available

9

Husqvarna 532110736

Pin, Clevis 5/16 x 5.19
(Superseded to 539110736)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539113425

Blade, 16-1/4"

$22.99

$

In Stock, Qty 13

0

11

Husqvarna 539107522

Bolt, 7/16, Assy Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113427

Confinement Plate

$

$

Not available

13

Husqvarna 539990799

Rhsnb 5/16-18 x 5/8 Gr 5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532195161

Stud, Fasten w/ Anti- Rotate

$

$

Not available

16

Husqvarna 539112899

Nut 5/16-18 Hex Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

Pulley, Idler Spec. Hub

$43.99

$

In Stock, Qty 20+

0

18

Husqvarna 574827102

Arm, Idler, Blk

$

$

Not available

19

Husqvarna 532177968

Pulley, Idler

$31.99

$

In Stock, Qty 5

0

20

Husqvarna 539132728

Pulley, Idler
(Superseded to 589766102)

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 575224501

Idler Bushing

$31.99

$

In Stock, Qty 5

0

22

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 539107608

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

25

Husqvarna 575224702

Shield, Belt LH

$48.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104763

Retainer 5/16c U Type

$6.49

$

In Stock, Qty 12

0

28

Husqvarna 539108271

Hcs 3/8-16 x 3-1/2 Gr 5

$5.99

$

In Stock, Qty 8

0

29

Husqvarna 539106504

Heavy Washer

$

$

Not available

30

Husqvarna 539990517

Washer, 3/8 Flat Std

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990923

Rhsnb 3/8-16 x 1-3/4 Gr 5

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539104864

Washer, 7/16 Flat
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532178515

Washer, Flat Hardened

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539119124

Nut, 7/16-14 Hex Nyloc

$

$

Not available

36

Husqvarna 532195185

Arm, Susp., Rear
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

37

Husqvarna 539113621

Sb 3/8-16 x 3/8 Skt Hd
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990122

Washer, 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539200282

Nut, 3/8-16 Hex Jam Nyloc
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

40

Husqvarna 532176066

Roller, Nose, 48"

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 532179127

Rod, Roller, Nose, Narrow
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990692

Washer, 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 575503902

Shield, Belt Rh
(Superseded to 575967202)

$48.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990209

Hcs 5/16-18 x 1 Gr 5

$1.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990187

Wash 5/16 Slw
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

47

Husqvarna 539105743

Decal, No Step
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 539113224

Decal, Warning

$9.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532198785

Decal, Deck Sch
(Superseded to 531229002)

$2.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532415598

Washout Port

$8.99

$

In Stock, Qty 13

0

51

Husqvarna 539108461

Bolt, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 6

0

52

Husqvarna 539104870

Hcs 7/16-14 x 2-1/2 Gr 5
(Superseded to 874780740)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 574845602

Belt, Deck

$91.99

$

Usually ships in 3-10 days

0

54

Husqvarna 575224301

Guard, Belt
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

55

Husqvarna 539115574

Eyebolt 5/16 x 3-1/2

$

$

Not available

56

Husqvarna 539990585

Nut 5/16-18 Hex Whizlk

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539106850

Spring

$

$

Not available

58

Husqvarna 539112050

Ball Bearing

$7.49

$

In Stock, only 4 left!

0

59

Husqvarna 575352901

Pulley
(Superseded to 588586401)

$66.99

$

In Stock, Qty 15

0

60

Husqvarna 532169484

Clip Retainer

$

$

Not available

Husqvarna 575015802

Mower Deck Complete
(Superseded to 532445359)

$1821.99

$

Usually ships in 3-10 days

0
