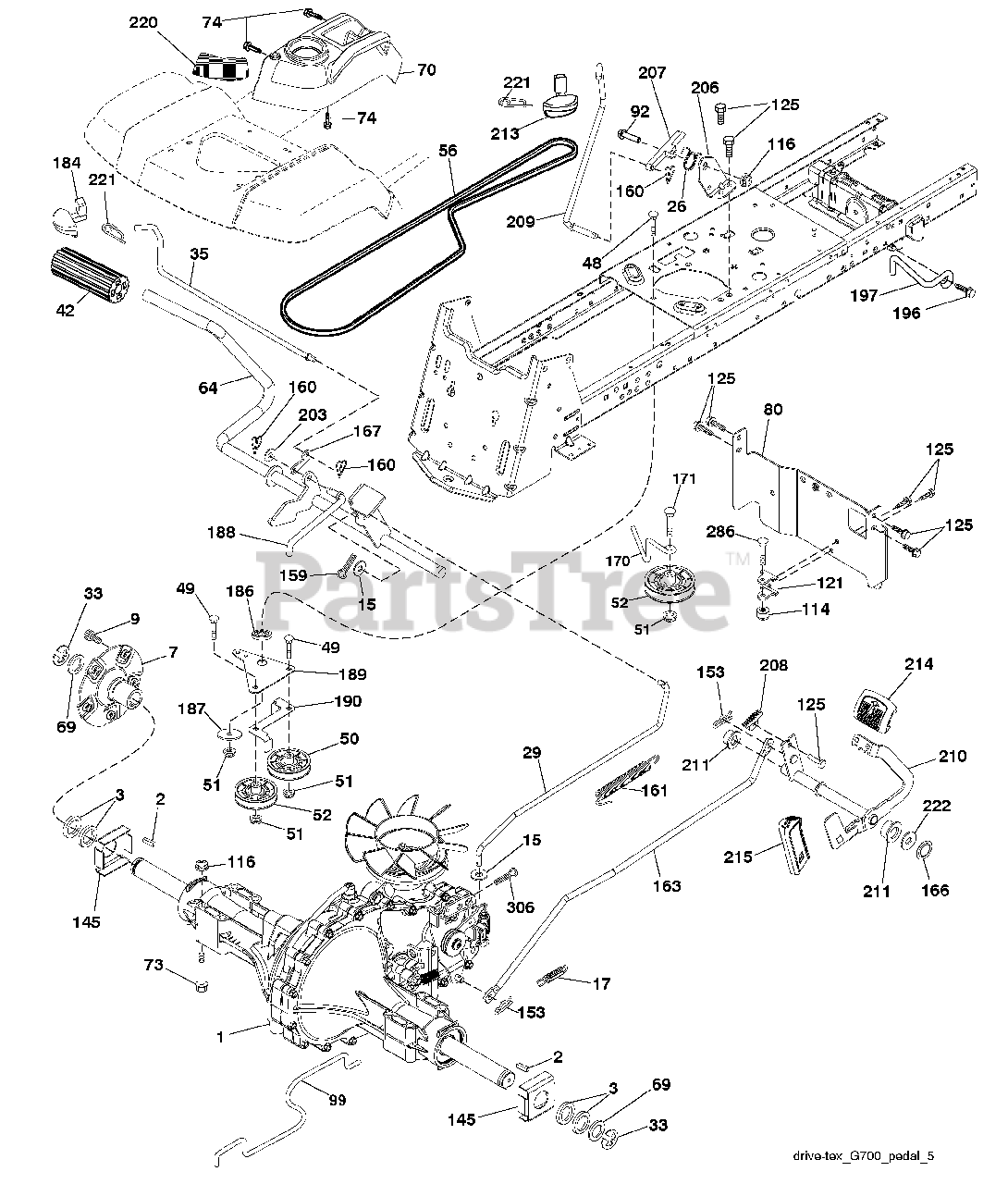

GTH 26 V48 LS (960430090-00) - Husqvarna Garden Tractor (2009-12) Drive Parts Diagram

Garden Tractor

Drive Parts Diagram

  • Title

1

Transaxle, Hydro G7-BCBB-1XDC-1FCA

$

$

Not available

2

Husqvarna 532007070

Key 1/4 x 2.5

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532007563

Washer Thrust Axle Hardened

$8.99

$

In Stock, only 1 left!

0

7

Husqvarna 532199837

Hub Asm. Wheel

$78.99

$

In Stock, Qty 6

0

9

Husqvarna 532140080

Bolt Hub Wheel

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

Spring, Brake

$6.99

$

In Stock, only 1 left!

0

26

Husqvarna 532199679

Spring Return Cruise

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532418186

Rod, Brake

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000053

Ring E

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532199591

Rod, Brake, Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

48

Husqvarna 872110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 872110614

Bolt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$20.99

$

In Stock, Qty 11

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910" Offset

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532420807

V-Belt, Drive

$54.99

$

In Stock, only 1 left!

0

64

Husqvarna 532197865

Shaft Asm. Pedal Brake Control

$53.99

$

In Stock, only 1 left!

0

69

Husqvarna 532123800

Washer 1-1/32 x 1-5/8 x 16 Ga.

$7.49

$

In Stock, only 1 left!

0

70

Husqvarna 532400530

Console Asm
(Superseded to 532439661)

$91.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490548

Bolt Hex 5/16-18 x 3 Gr. 5

$6.49

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

Screw 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532418184

Strap Torque

$34.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

Bolt 5/16-18 x 1/2
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532418188

Spring Bypass

$14.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

Nut Lock Hex W/Ins. 5/16-18 unc

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

121

Husqvarna 532175611

Bracket Strap Torque

$7.99

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

145

Husqvarna 532163168

Washer Axle Flange

$15.99

$

In Stock, only 3 left!

0

153

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 2 left!

0

163

Husqvarna 532418185

Rod Pedal Control

$34.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

Nut Push .625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532194322

Keeper V-Idler Center Span

$7.49

$

In Stock, only 1 left!

0

171

Husqvarna 872110616

Bolt RD HD SQNK 3/8-16 x 2

$6.49

$

Usually ships in 3-10 days

0

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

186

Husqvarna 532194321

Spacer Retainer

$9.49

$

In Stock, Qty 11

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532407504

Bellcrank Ground Drive

$15.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532407505

Keeper Bellcrank Ground Drive

$10.99

$

In Stock, only 1 left!

0

196

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 532199769

Bracket Clutch Anti-Rotation

$8.99

$

In Stock, only 4 left!

0

203

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

206

Husqvarna 532197867

Bracket Mount Latch Cruise
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532197868

Latch Control Cruise
(Superseded to 587031401)

$

$

Not available

208

Husqvarna 532197869

Gear Sector Control Cruise

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

Rod Control Cruise

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532197860

Rocker Asm. Pedal Control

$51.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

Bearing Nylon

$6.99

$

In Stock, only 4 left!

0

213

Husqvarna 532403119

Knob Control Cruise

$12.99

$

In Stock, only 1 left!

0

214

Husqvarna 532416863

Pedal Forward

$37.99

$

In Stock, only 1 left!

0

215

Husqvarna 532401723

Pedal Reverse

$14.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532198908

Reflector RH

$17.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, only 3 left!

0

222

Husqvarna 879212010

Washer 21/32 x 1-1/4 x 10 Ga.

$6.49

$

In Stock, only 1 left!

0

286

Husqvarna 872010520

Bolt 5/16-18 x 2.50

$6.49

$

Usually ships in 3-10 days

0

306

Husqvarna 876020416

Pin Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days
