GTH 2550 XP (954567116) - Husqvarna 50" Garden Tractor (2001-02) MOWER DECK / CUTTING DECK Parts Diagram

50" Garden Tractor

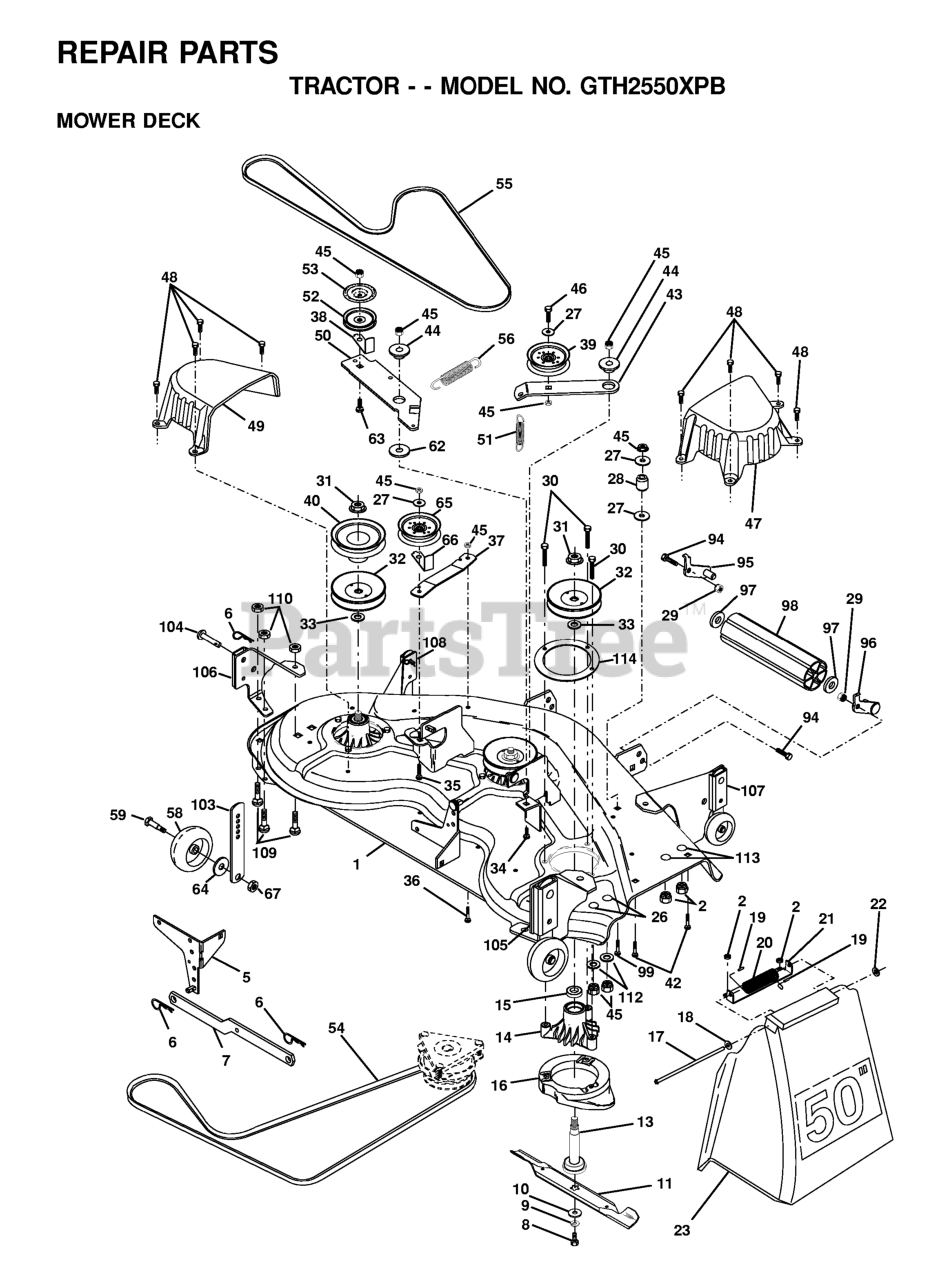

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

59

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

55

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

18

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532139245

PULLEY IDLER

$37.99

$

In Stock, only 2 left!

0

7

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

64

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 532106735

ROD-HINGE T

$10.99

$

In Stock, only 1 left!

0

94

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

113

Husqvarna 872110504

BOLT.CARR.5/16-18X1/2
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

96

Husqvarna 532175747

BRACKET ASM, ROLLER

$10.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532137200

COVER MANDRELL

$

$

Not available

26

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532132264

NOSE ROLLER

$44.99

$

In Stock, Qty 20+

0

53

Husqvarna 532137789

SHIELD IDLER

$

$

Not available

37

Husqvarna 532137166

STIFFENER ARM

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137553

SHAFT.ASM.W/BEARING

$37.99

$

In Stock, only 1 left!

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532173968

KEEPER.BELT.IDLER.PLATED

$

$

Not available

11

Husqvarna 532137380

BLADE.50".HI-LIFT

$22.99

$

In Stock, only 3 left!

0

36

Husqvarna 872110608

BOLT D
(Superseded to 596728201)

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

46

Husqvarna 874760628

BOLT
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

97

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

42

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532132823

IDLER SPRING SPACER

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532138687

SPRING

$

$

Not available

44

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

54

Husqvarna 532139573

V-BELT.PRMRY 46/50 VENT.BLK BK

$51.99

$

In Stock, only 1 left!

0

31

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

14

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 1 left!

0

34

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

103

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$20.99

$

In Stock, Qty 10

0

2

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 2 left!

0

112

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532138457

BRACKET SWAY BAR

$11.99

$

Usually ships in 3-10 days

0

99

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

66

Husqvarna 532173979

KEEPER BELT IDLER PLATED

$

$

Not available

43

Husqvarna 532136460

ARM.IDLER.SEC.44"

$

$

Not available

104

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$

$

Not available

22

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

29

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532137273

SPRING.SEC.44"VEN

$7.99

$

In Stock, Qty 5

0

95

Husqvarna 532175746

BRACKET ASM, ROLLER (L)

$9.49

$

In Stock, Qty 6

0

- -

Husqvarna 532143651

KIT.MANDREL.ASM.44"/46/50"SRVC

$102.99

$

In Stock, only 4 left!

0

50

Husqvarna 532137272

ARM.IDLER.PRIMARY

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

49

Husqvarna 532136574

COVER.MANDREL.LH.44"

$

$

Not available

20

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0
