GTH 2550 XP (954567116) - Husqvarna 50" Garden Tractor (2001-02) CHASSIS & ENCLOSURES Parts Diagram

50" Garden Tractor

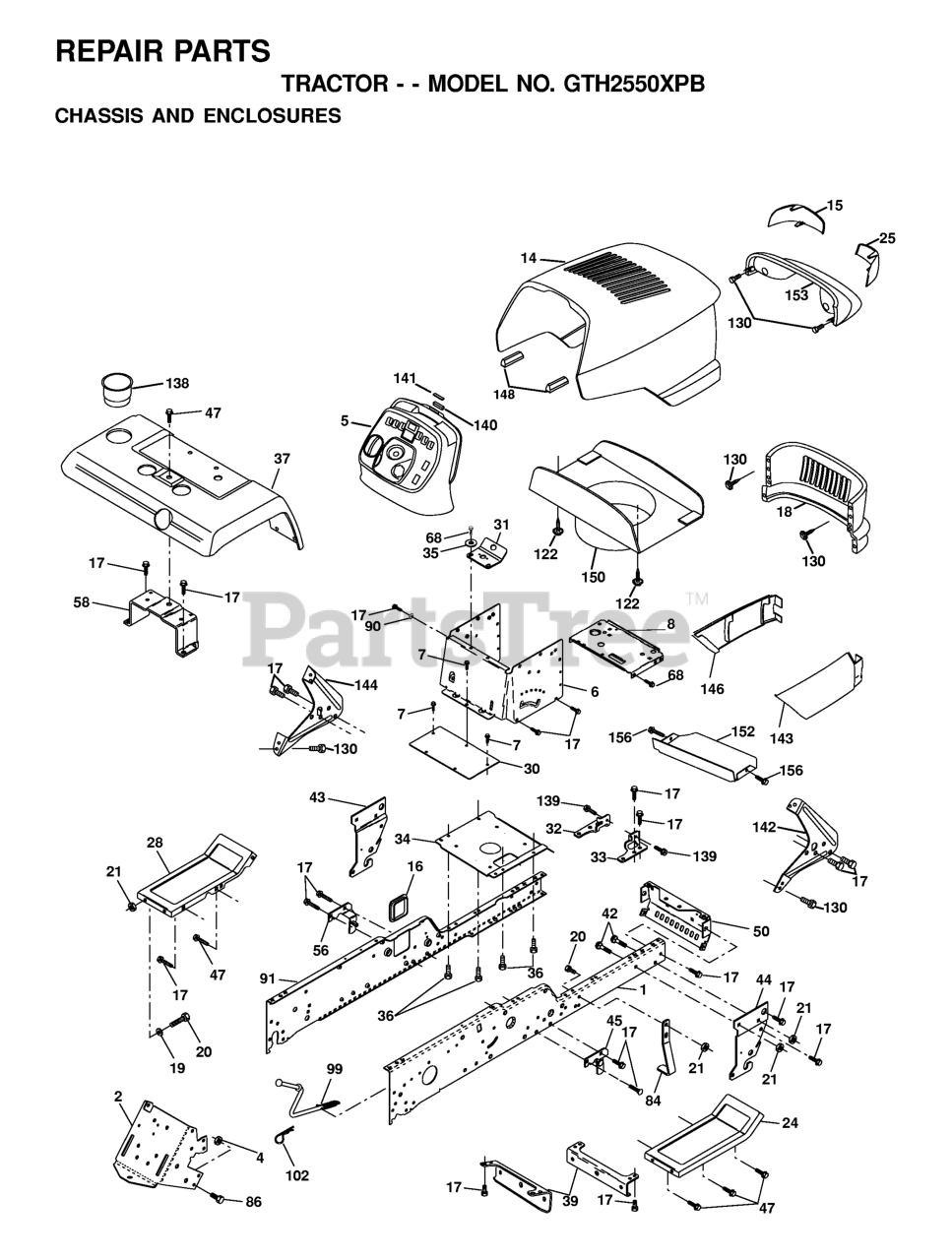

CHASSIS & ENCLOSURES Parts Diagram

  • Title
148

Husqvarna 532164655

EXTRUSION BUMPER (3 2) (2 2)

$8.99

$

Usually ships in 3-10 days

0

86

Husqvarna 874760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532177956

BROWNING SHIELD

$

$

Not available

20

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532161419

BRACKET SUPT 1-PC VGT STEERING

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532154913

BRACKET SUSP RH

$

$

Not available

90

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

143

Husqvarna 532177586

SKIRT GRILLE RH

$43.99

$

In Stock, only 2 left!

0

34

Husqvarna 532177018

PLATE ASM ENG CHASSIS

$37.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532175278

BRACKET AXLE, FRONT

$

$

Not available

32

$7.49

$

In Stock, only 4 left!

0

7

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

47

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532177583

HOOD ASM.
(Superseded to 532194976)

$121.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532161237

DUCT HEAT HOOD
(Superseded to 532190309)

$45.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532164863

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532142992

MOWER STOP

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532147202

FOOTREST RH
(Superseded to 532145243)

$

$

Not available

5

Husqvarna 532177582

DASH.STEALTH.YTGT.2CYL.BLK
(Superseded to 583716201)

$

$

Not available

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 532154914

BRACKET ASM, SUSP CHASSIS

$

$

Not available

33

$6.49

$

In Stock, only 1 left!

0

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

50

Husqvarna 532175476

BRACKET, CHASSIS FRONT

$

$

Not available

30

Husqvarna 532145052

SADDLE.HYDRO.95

$

$

Not available

141

Husqvarna 532163805

STRIKER PLATE

$

$

Not available

146

Husqvarna 532177587

SKIRT GRILLE LH

$

$

Not available

21

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532161464

SCREW.HEX.WS.HD.8-18 X 7/8

$

$

Not available

25

Husqvarna 532161841

LENS LH
(Superseded to 583125201)

$

$

Not available

42

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 532145166

SUPPORT, BATTERY

$

$

Not available

140

Husqvarna 532163806

MAGNET STEALTH

$

$

Not available

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

58

Husqvarna 532175315

BRACKET ASM, FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

28

Husqvarna 532147203

FOOT REST LH

$

$

Not available

6

Husqvarna 532157882

DASH VGT, LOWER

$

$

Not available

15

Husqvarna 532161842

LENS RH
(Superseded to 583125201)

$

$

Not available

99

Husqvarna 532177143

ROD ASM, BYPASS

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

156

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532177584

GRILLE
(Superseded to 532182873)

$193.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532161897

BRACKET DASH STEALTH(R)

$7.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532161900

BRACKET DASH STEALTH LH

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

2

Husqvarna 532175282

DRAWBAR, GT

$

$

Not available
