GTH 2550 (954567109) - Husqvarna 50" Garden Tractor (2001-05) SEAT Parts Diagram

50" Garden Tractor

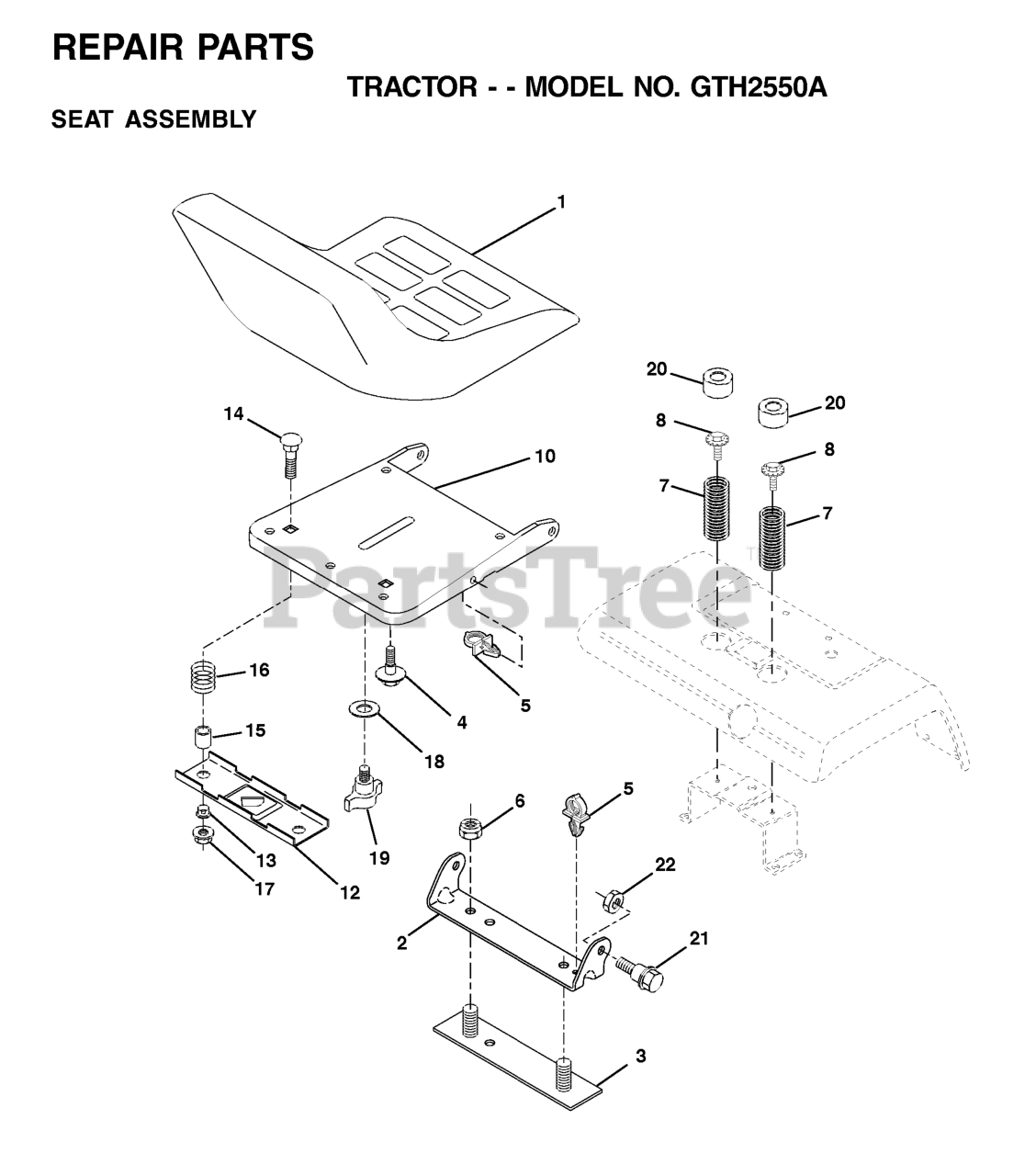

SEAT Parts Diagram

  • Title

20

Husqvarna 532124238

CAP SPRING

$

$

Not available

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

16

Husqvarna 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532127018

BOLT,SHOULD

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 532141525

SEAT
(Superseded to 532401043)

$

$

Not available

5

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

2

Husqvarna 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

STRAP

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532174894

PAN, SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 15

0
