GTH 2550 (954567109) - Husqvarna 50" Garden Tractor (2001-05) MOWER LIFT / DECK LIFT Parts Diagram

50" Garden Tractor

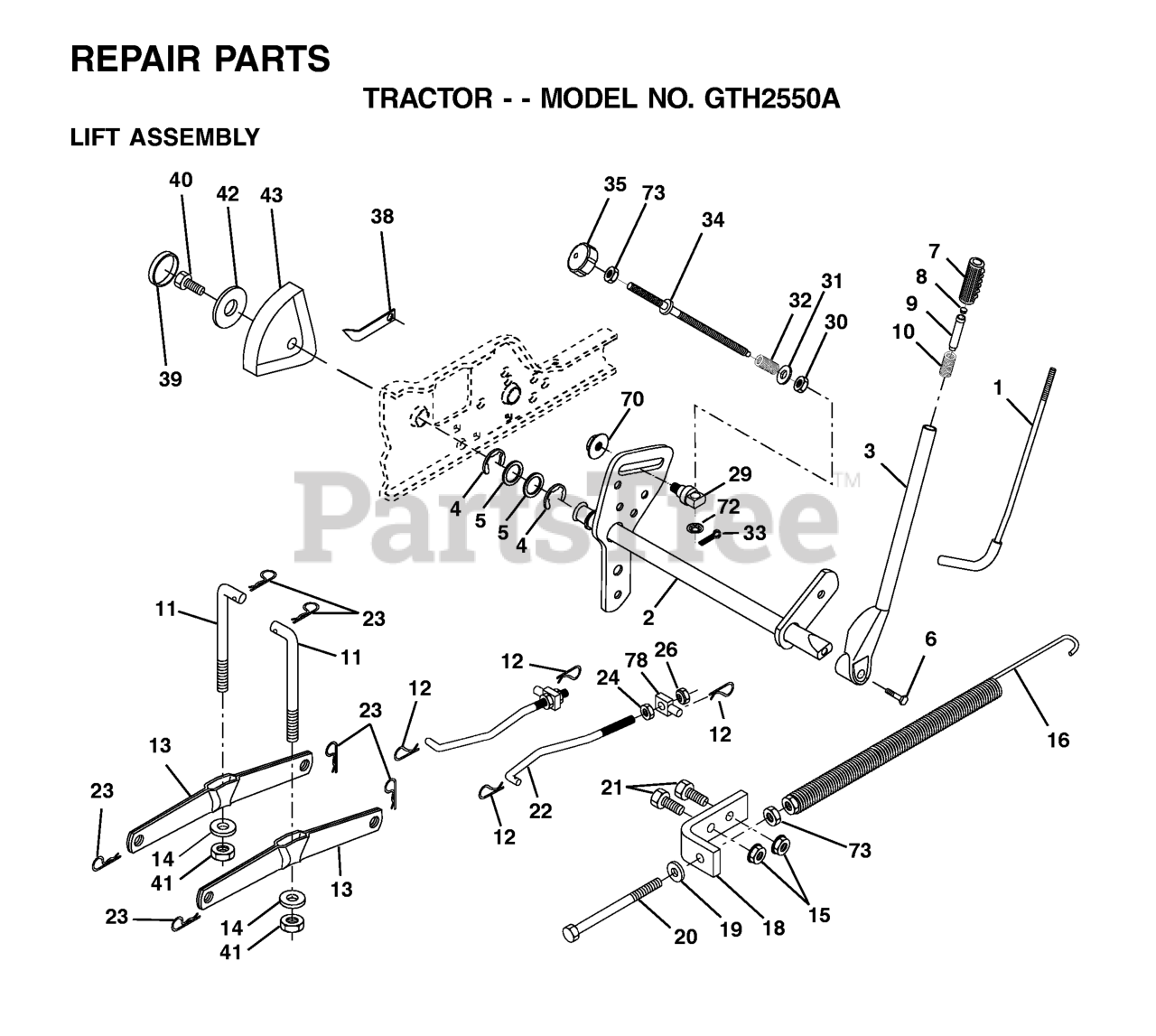

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
41

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 5

0

$

$

Not available

14

Husqvarna 532169865

BEARING.PIVOT.LIFT

$

$

Not available

1

Husqvarna 532121006

LEVER ROD LT

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

12

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532125631

GRIP HANDLE

$7.99

$

In Stock, only 1 left!

0

29

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532124687

LIFT SPRING
(Superseded to 532674247)

$

$

Not available

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

43

Husqvarna 532123934

HEIGHT INDICATOR

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532130171

TRUNION
(Superseded to 532175689)

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

$

$

Not available

72

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532138057

KNOB INF 3/8-16

$8.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532137167

ROD.LIFT.ADJUSTABLE

$7.49

$

In Stock, only 2 left!

0

70

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available

23

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

73

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 874760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532159189

LEVER ASSY-LIFT RH

$

$

Not available

32

Husqvarna 532137150

SPRING.COMP.INF.H

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 871110624

Bolt, Fin Hex 3/8-16 x 1-1/12

$

$

Not available

10

Husqvarna 532124874

SPRING**
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

15

$3.99

$

Usually ships in 3-10 days

0

18

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532146704

LINK LIFT
(Superseded to 532145543)

$

$

Not available

38

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

$

$

Not available

39

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532127218

FRONT LINK

$17.99

$

In Stock, only 4 left!

0

13

Husqvarna 532139868

ARM.REAR.SUSPENSION

$15.99

$

Usually ships in 3-10 days

0
