GTH 2550 (954567109-A) - Husqvarna 50" Garden Tractor (2001-01) Engine Parts Diagram

50" Garden Tractor

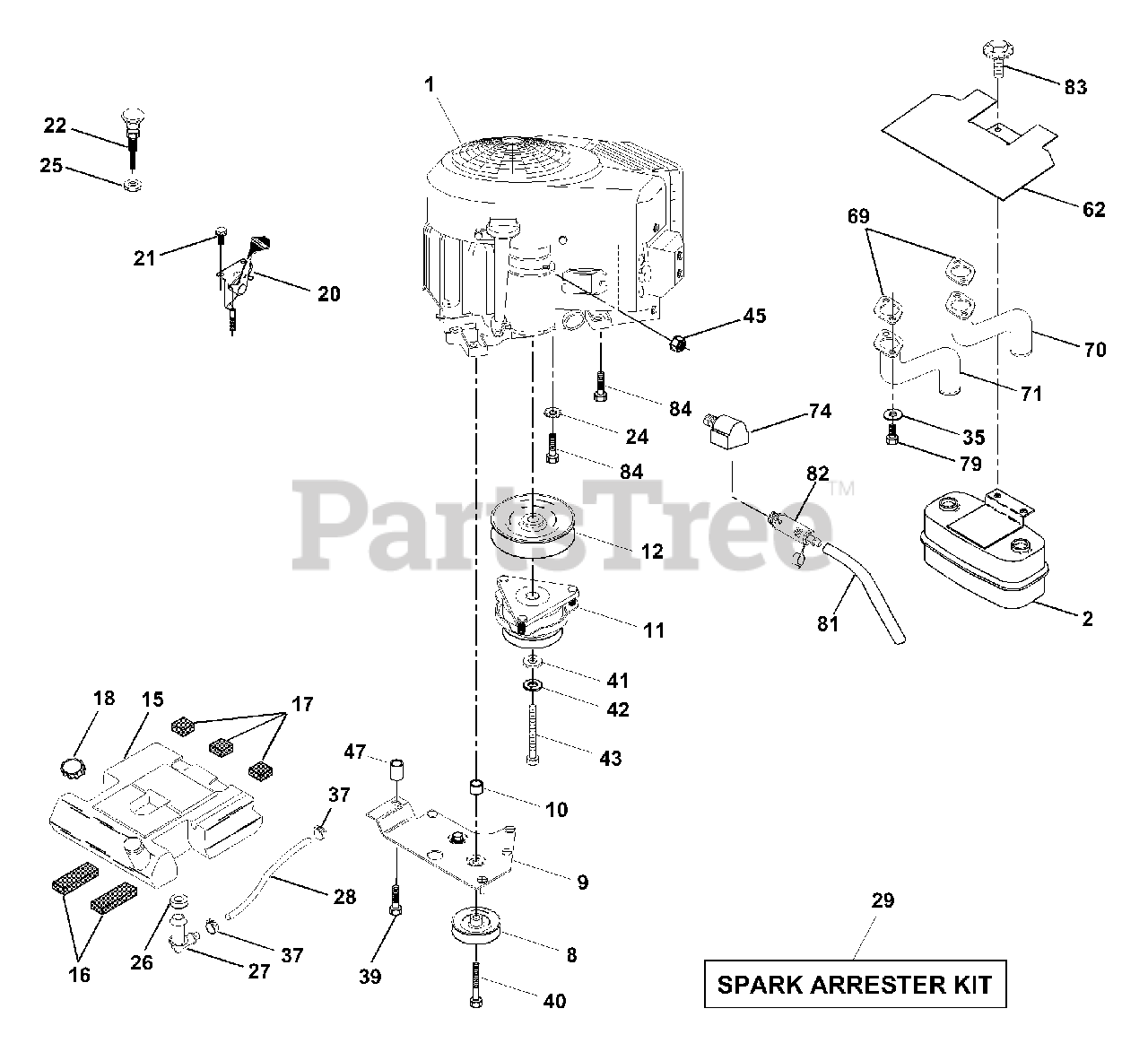

Engine Parts Diagram

  • Title

1

Engine Briggs

Note: Model No. 445777; (Order parts from engine manuf.)

$

$

Not available

2

Husqvarna 532149723

Muffler Side

$74.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532121361

Pulley V-Idler
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Husqvarna 532177748

Keeper Asm. Belt Engine VGT

$

$

Not available

10

Husqvarna 532175287

Bushing

$

$

Not available

11

Husqvarna 532170056

Clutch Electric
(Superseded to 532174509)

$546.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532143996

Pulley Engine VGT Elect Clutch

$53.99

$

In Stock, only 1 left!

0

15

Husqvarna 532151346

Tank Fuel Rear 3.50

$96.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532109227

Pad Spacer

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532106082

Pad Spacer

$

$

Not available

18

Husqvarna 532161493

Cap Fuel Gauge

$

$

Not available

20

Husqvarna 532164067

Control Throttle
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Husqvarna 532164863

Screw Hex Thd Cut 1/4 - 20 X 5/8
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532164068

Control Choke

$

$

Not available

24

Husqvarna 811050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

25

Husqvarna 873920600

Nut Keps 3/8-24 Unf

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532003645

Bushing

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 8

0

28

Husqvarna 532007834

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

34

UNKNOWN

$

$

Not available

35

Husqvarna 810040500

Washer
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 817490636

Screw TT 3/8-16 x 2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 UNC

$

$

Not available

41

Husqvarna 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

43

Husqvarna 532173937

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

47

Husqvarna 532175288

Bushing

$

$

Not available

62

Husqvarna 532146629

Shield Heat Muffler CV-Intek
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532176069

Tube Exhaust LH

$51.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532176070

Tube Exhaust RH

$78.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532162295

Elbow Street Brass

$34.99

$

In Stock, only 1 left!

0

79

Husqvarna 871070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532148315

Plug Oil Drain Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

83

Husqvarna 532171877

Bolt 5/16-18unc X 1-3/4 W/Sems

$7.49

$

In Stock, Qty 5

0

84

Husqvarna 817060624

Screw Thdrol 3/8-16 x 1-1/2

$7.49

$

In Stock, only 1 left!

0
