GTH 2548 XP (954567895-B) - Husqvarna 48" Garden Tractor (2002-10) Seat Assembly Parts Diagram

48" Garden Tractor

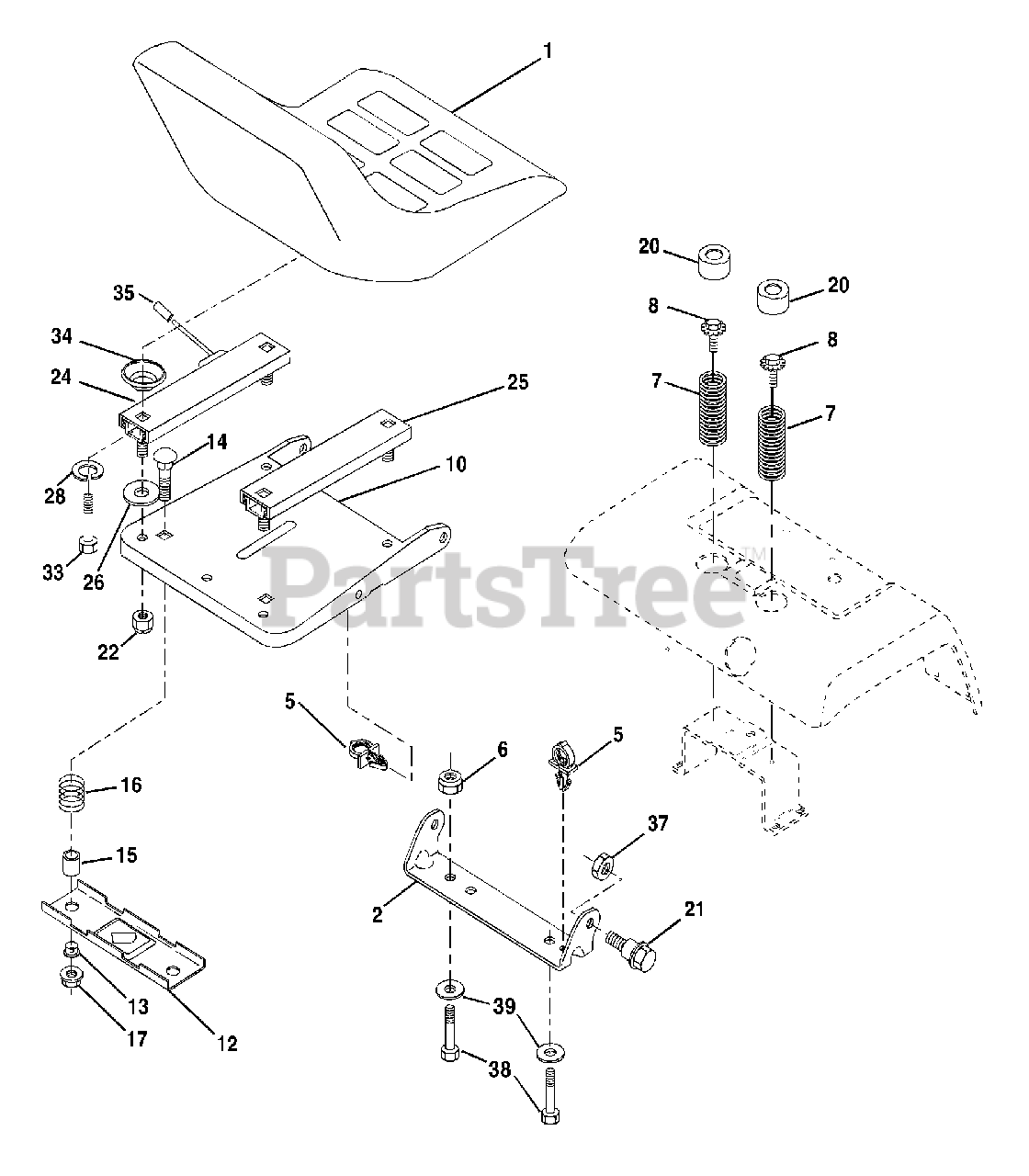

Seat Assembly Parts Diagram

  • Title
1

Husqvarna 532184995

Seat
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 Unc x 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532182493

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

Bracket, Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt, Carriage 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 532123740

Spring, Cprsn

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut, Lock 1/4 Lge Flg Gr. 5
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

20

Husqvarna 532124238

Cap, Spring Seat

$

$

Not available

21

Husqvarna 532171852

Bolt, Shoulder 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873800500

Nut, Crownlock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532177946

Track Slide Seat LH Locking

$68.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532177947

Track Slide Seat RH Free

$136.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 810010500

Washer Split

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 874780512

Bolt Fin Hex 5/16-18 x 1
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532178426

Cap Vinyl
(Superseded to 583670601)

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 871110616

Bolt Fin Hex 3/8-16 Unc x 1

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 819131610

Washer Flat 13/32 x 1 x 10 Ga

$6.49

$

In Stock, Qty 7

0
