GTH 2548 (954572134-B) - Husqvarna 48" Garden Tractor (2004-02) Chassis And Enclosures Parts Diagram

48" Garden Tractor

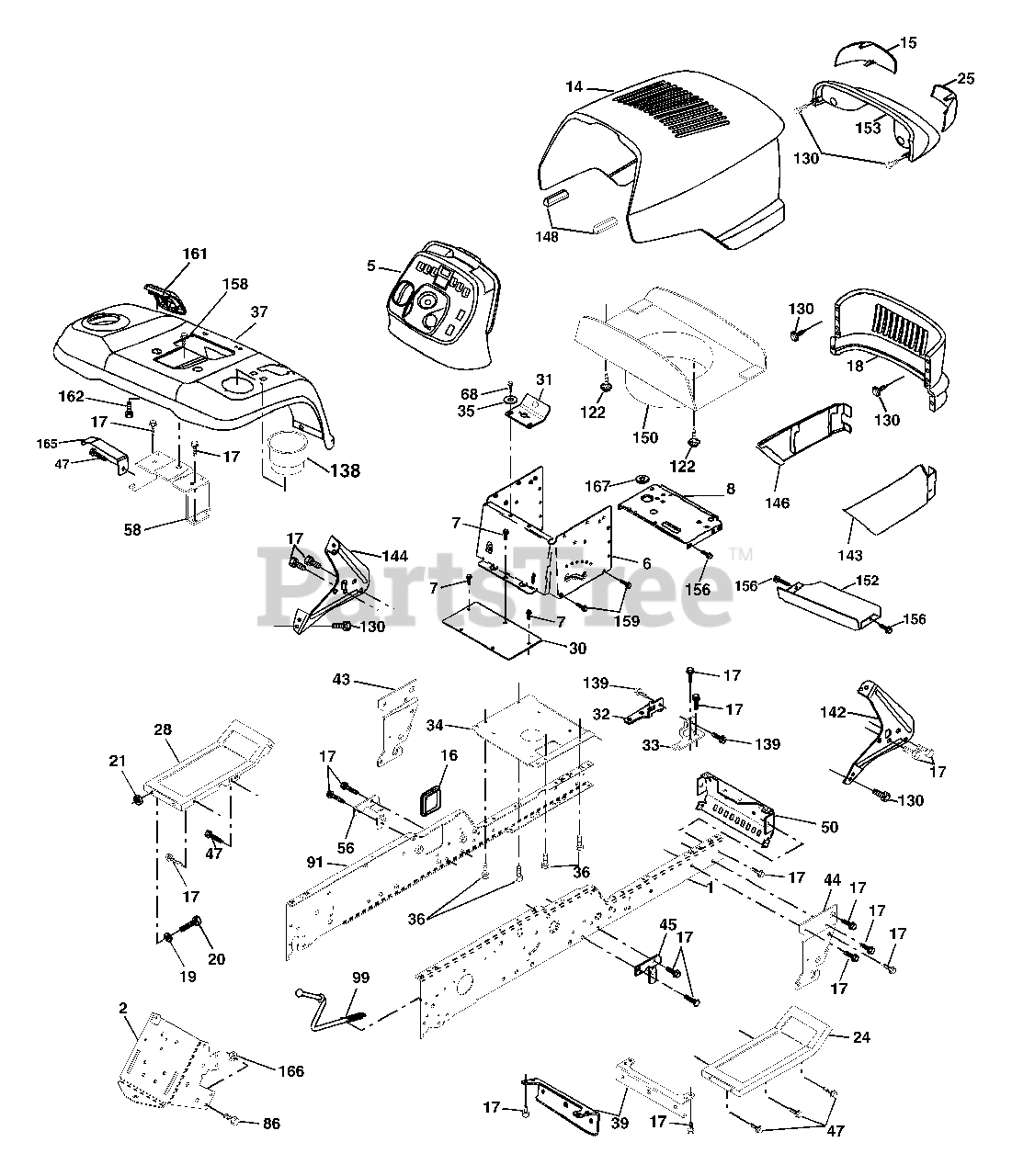

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532180375

Rail, Kit RH

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532175282

Drawbar, Gt

$

$

Not available

5

Husqvarna 532190054

Dash
(Superseded to 532189690)

$61.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532157882

Dash, 1PCS, Lower

$

$

Not available

7

Husqvarna 817720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532184668

Support, Battery
(Superseded to 532185518)

$

$

Not available

14

Husqvarna 532190055

Hood Asm., Pnt
(Superseded to 532188208)

$

$

Not available

15

Husqvarna 532161841

Lens LH
(Superseded to 583125201)

$

$

Not available

16

Husqvarna 532121794

Cover, Access

$

$

Not available

17

Husqvarna 817000612

Screw, 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532182873

Grille

$193.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 x 1

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873800600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532181058

Footrest, RH
(Superseded to 532442579)

$

$

Not available

25

Husqvarna 532161842

Lens RH
(Superseded to 583125201)

$

$

Not available

28

Husqvarna 532181057

Footrest, LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532145052

Saddle

$

$

Not available

31

Husqvarna 532161419

Bracket Supt 1-pc Vgt Steering

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532161327

Bracket, Frame Pivot Lh

$7.49

$

In Stock, only 4 left!

0

33

Husqvarna 532161326

Bracket, Frame Pivot Rh

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 532177018

Plate Asm Engine Chassis

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532181720

Fender, Pnt.
(Superseded to 532196023)

$

$

Not available

39

Husqvarna 532175278

Bracket, Axle Front

$

$

Not available

43

Husqvarna 532136939

Bracket, Spnsn Front Lh

$

$

Not available

44

Husqvarna 532136940

Bracket, Spnsn Front Rh

$

$

Not available

45

Husqvarna 532176018

Bracket Asm., Susp Chassis Rh

$

$

Not available

47

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532175476

Bracket, Chassis Front

$

$

Not available

56

Husqvarna 532176016

Bracket Asm., Susp Chassis Lh

$

$

Not available

58

Husqvarna 532183569

Bracket Asm., Fender

$14.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw, 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

86

Husqvarna 874780716

Bolt, Fin Hex 7/16-14 unc

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532180374

Rail, Kit Lh

$56.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532177143

Rod Asm. Bypass

$24.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532161464

Screw Hex WSHD 8-18 x 7/8

$

$

Not available

130

Husqvarna 532171875

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532181798

Cupholder
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532171873

Bolt Shoulder 5/16-18

$5.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532161897

Bracket Dash Stealth RH

$7.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532177586

Skirt Grille RH

$43.99

$

In Stock, only 2 left!

0

144

Husqvarna 532161900

Bracket Dash Stealth LH

$7.49

$

Usually ships in 3-10 days

0

146

Husqvarna 532177587

Skirt Grille LH

$

$

Not available

148

Husqvarna 532164655

Extrusion Bumper

$8.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532190309

Duct Heat Hood

$45.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532177956

Shield, Browning

$

$

Not available

153

Husqvarna 532188212

Lightbox Asm.

$109.99

$

Usually ships in 3-10 days

0

156

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

158

Husqvarna 817670608

Screw 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

Screw Hexwsh Thdr. 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532181787

Cosole Fuel Window

$34.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

Screw 1/4-1/2 Unc

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532183554

Bracket Support Tank

$85.99

$

Usually ships in 3-10 days

0

166

Husqvarna 873680700

Nut, Lock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532184672

Bushing Snap Nylon 1.250

$2.99

$

Usually ships in 3-10 days

0
