GTH 2548 (954572134-B) - Husqvarna 48" Garden Tractor (2004-01) STEERING Parts Diagram

48" Garden Tractor

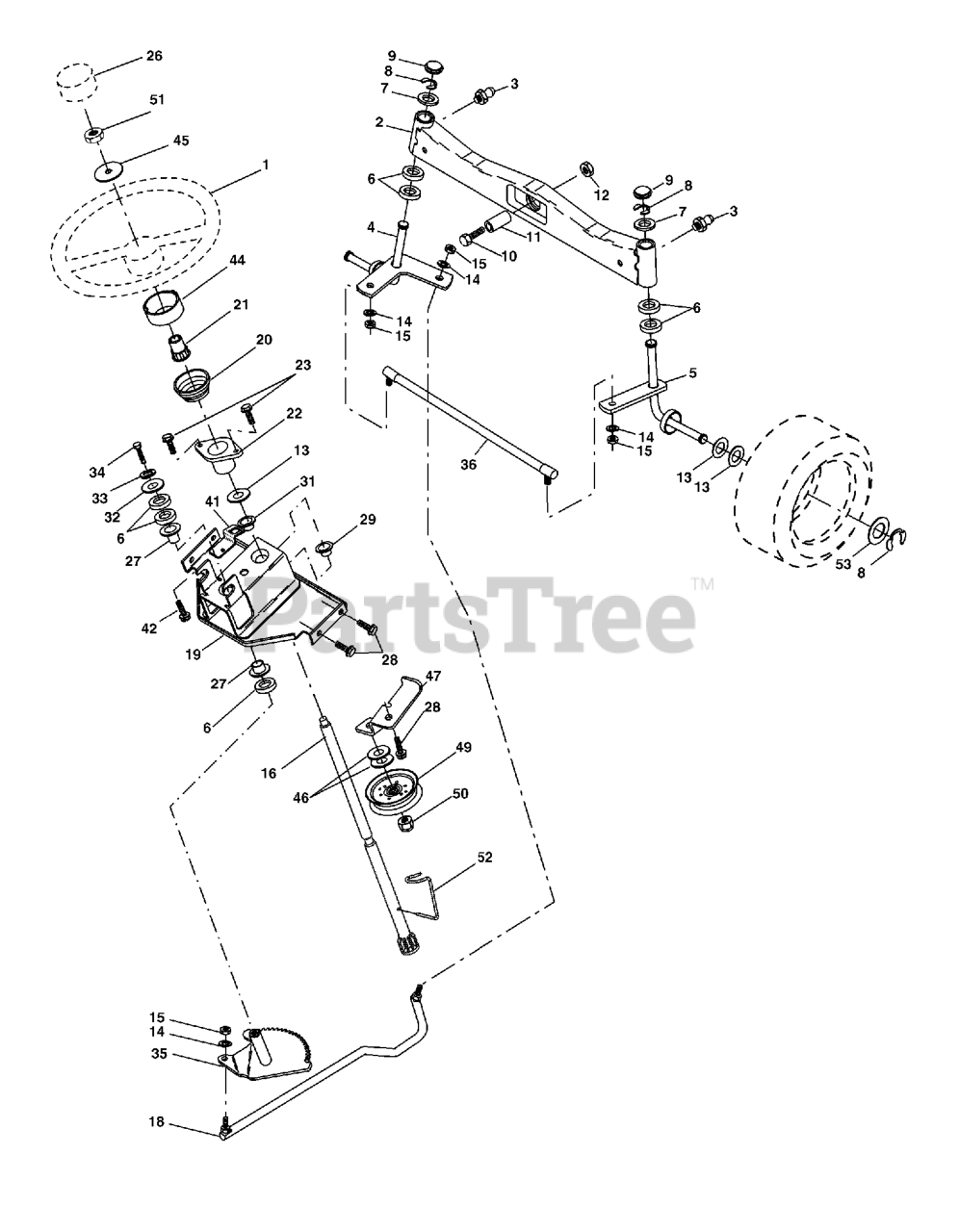

STEERING Parts Diagram

  • Title
47

Husqvarna 532179471

BRKT.ASM.IDLER.STATIONERY

Note: 532179471

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

Note: 873900600

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

Note: 532124931

$7.49

$

In Stock, Qty 11

0

19

Husqvarna 532156011

SUPPORT ASM., STEERING VGT

Note: 532156011

$

$

Not available

34

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: 874780512

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532177592

BOOT, STEERING
(Superseded to 532163887)

Note: 532177592

$

$

Not available

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

Note: 810040500

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

Note: 532155105

$7.99

$

In Stock, only 1 left!

0

45

Husqvarna 819182411

Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin

Note: 819182411

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532159945

STEERING WHEEL ADAPTOR

Note: 532159945

$

$

Not available

13

Husqvarna 532121749

WASHER

Note: 532121749

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

Note: 873540600

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532175553

CLIP.STEERING

Note: 532175553

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 532161848

SPINDLE ASM RH

Note: 532161848

$

$

Not available

4

Husqvarna 532161849

SPINDLE ASSY LH

Note: 532161849

$

$

Not available

51

Husqvarna 873940800

NUT.HEX.1/2-20

Note: 873940800

$7.49

$

In Stock, only 4 left!

0

35

Husqvarna 532187039

GEAR.ASM.SECTOR.PITMAN

Note: 532187039

$

$

Not available

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

Note: 532121232

$4.99

$

In Stock, Qty 9

0

26

Husqvarna 532166626

CAP.WHEEL.STEERING.GREY
(Superseded to 532172092)

Note: 532166626

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532121748

WASHER

Note: 532121748

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

Note: 532124937

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532183226

FITTING.GREASE.TAPERED

Note: 532183226

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532136518

TUBE, PIVOT AXLE

Note: 532136518

$9.99

$

In Stock, only 1 left!

0

2

Husqvarna 532178557

AXLE.FRONT.CAST.MACHINE.W/ZERK

Note: 532178557

$

$

Not available

8

Husqvarna 812000029

RING CLIP

Note: 812000029

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

Note: 874781044

$

$

Not available

44

Husqvarna 532177593

EXTENSION STEERING PREMIUM
(Superseded to 532160135)

Note: 532177593

$

$

Not available

42

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

Note: 817490508

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532186799

ROD.TIE.NON-ADJUSTABLE

Note: 532186799

$87.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532138136

BUSHING.NYLINER.

Note: 532138136

$10.99

$

In Stock, only 1 left!

0

46

Husqvarna 819131610

WASHER PM

Note: 819131610

$6.49

$

In Stock, Qty 7

0

23

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

Note: 532152927

$7.49

$

In Stock, only 2 left!

0

41

Husqvarna 532155246

BRACKET INTERLOCK

Note: 532155246

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

Note: 810040600

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

Note: 532175820

$

$

Not available

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

Note: 532166627

$

$

Not available

16

Husqvarna 532186814

SHAFT ASM, STEERING

Note: 532186814

$100.99

$

In Stock, Qty 5

0

12

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

Note: 873901000

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 819111610

WASHER

Note: 819111610

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532188967

WASHER.HARDENED

Note: 532188967

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532175572

DRAGLINK, BALL JOINT (3SPG1401

Note: 532175572

$74.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532104239

BEARING-FLANGE GT

Note: 532104239

$12.99

$

In Stock, only 1 left!

0
