GTH 2548 (954572134-B) - Husqvarna 48" Garden Tractor (2004-01) SEAT Parts Diagram

48" Garden Tractor

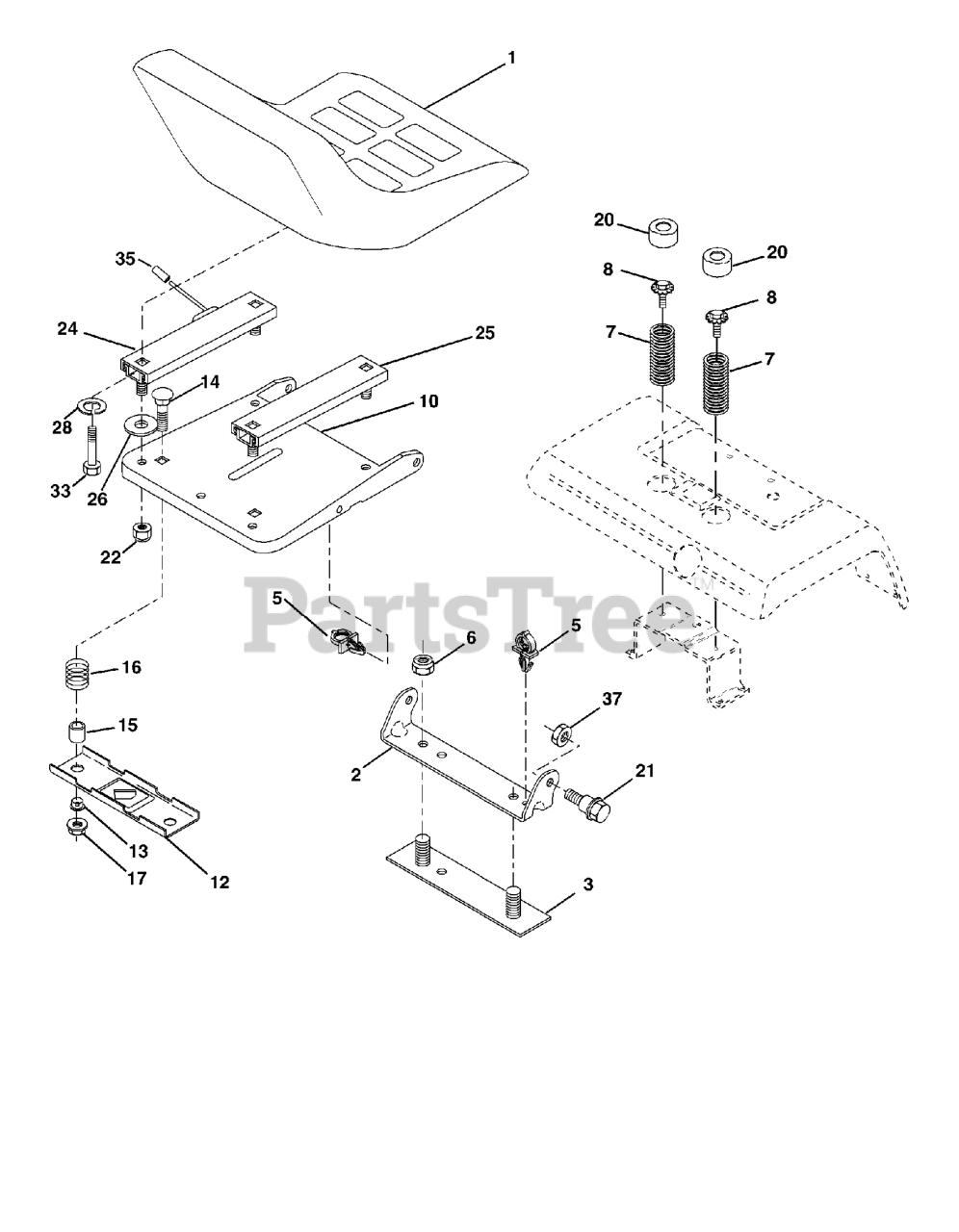

SEAT Parts Diagram

  • Title
13

Husqvarna 532121248

BUSHING

Note: 532121248

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

Note: 532121246

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532182493

PAN SEAT
(Superseded to 532195530)

Note: 532182493

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: 873800500

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

Note: 532124181

$6.99

$

In Stock, only 4 left!

0

22

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

Note: 873680500

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810010500

WASHER

Note: 810010500

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: 873800600

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

Note: 872050412

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532140551

SEAT PIVOT BRKT

Note: 532140551

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532188715

SEAT.XH150.GRY
(Superseded to 532439700)

Note: 532188715

$

$

Not available

21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

Note: 532171852

$4.99

$

In Stock, Qty 8

0

16

Husqvarna 532123740

SPRING COMPRESSED

Note: 532123740

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532177946

TRACK SLIDE, SEAT(L)

Note: 532177946

$68.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532178426

CAP
(Superseded to 583670601)

Note: 532178426

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532177947

TRACK SLIDE, SEAT(R)

Note: 532177947

$136.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

SPACER SPLIT

Note: 532121249

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: 532171877

$7.49

$

In Stock, Qty 6

0

20

Husqvarna 532124238

CAP SPRING

Note: 532124238

$

$

Not available

3

Husqvarna 532140675

STRAP

Note: 532140675

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 819111012

WASHER T

Note: 819111012

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

PUSH CLIP

Note: 532145006

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

Note: 874780512

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

Note: 532123976

$4.99

$

In Stock, Qty 15

0
