GTH 2548 (954572134-B) - Husqvarna 48" Garden Tractor (2004-01) ENGINE Parts Diagram

48" Garden Tractor

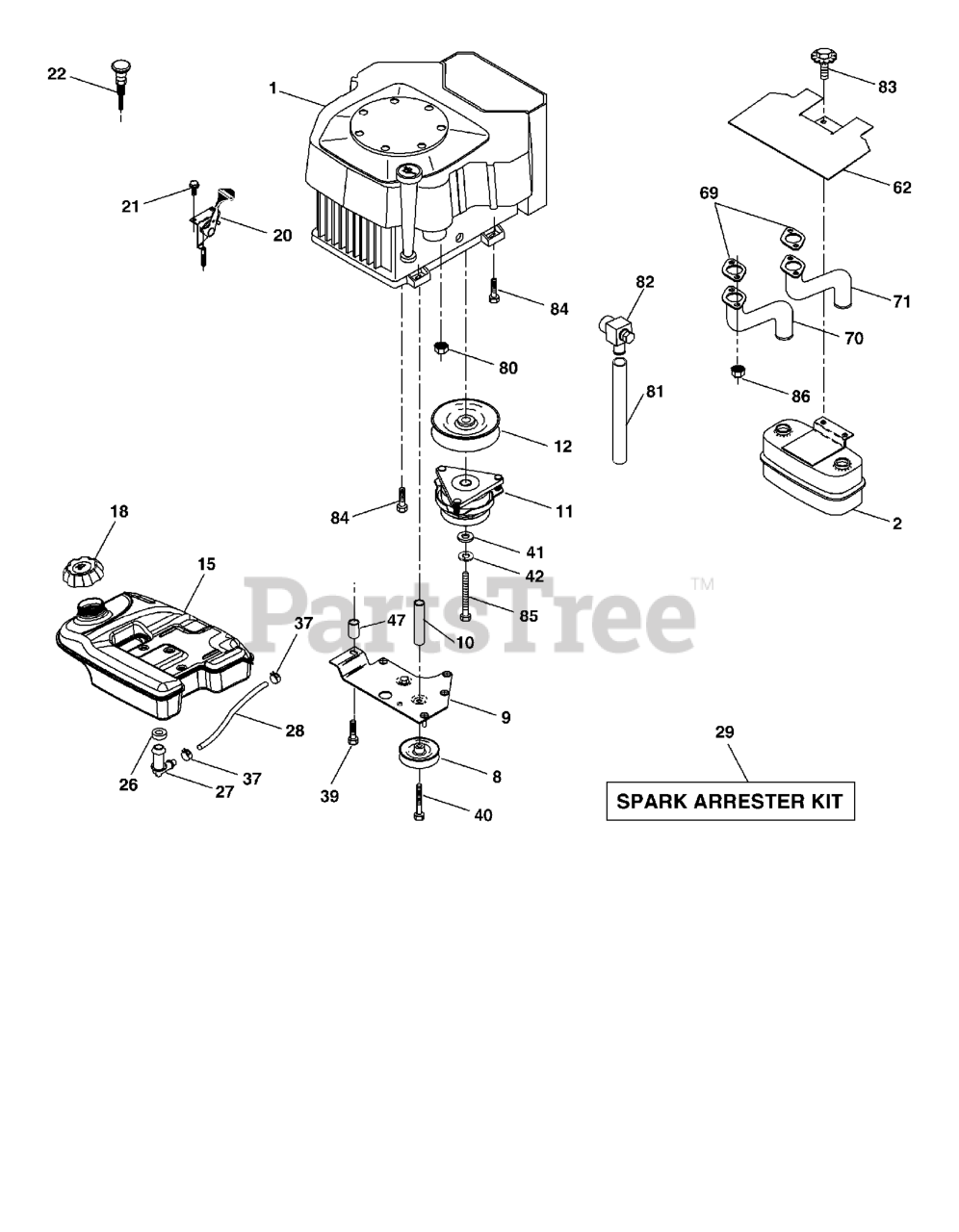

ENGINE Parts Diagram

  • Title

15

Husqvarna 532179115

TANK.FUEL.5.0 LEFT.FILL.YTGT

Note: 532179115

$

$

Not available

25

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

Note: 873920600

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532175545

TUBE EXHAUST LH

Note: 532175545

$78.99

$

Usually ships in 3-10 days

0

39

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

Note: 817490636

$2.49

$

In Stock, Qty 5

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 unc

Note: 817490664

$

$

Not available

81

Husqvarna 532188800

TUBE, DRAIN, OIL

Note: 532188800

$2.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

Note: 532179953

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

PUSH CLIP

Note: 532145006

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532177748

KEEPER ASM BELT ENGINE

Note: 532177748

$

$

Not available

80

Husqvarna 532163305

FLANGE NUT
(Superseded to 873030800)

Note: 532163305

$

$

Not available

18

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

Note: 532181803

$37.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

Note: 817060624

$7.49

$

In Stock, only 1 left!

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

Note: 532146629

$15.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532175546

TUBE.EXHAUST.LV675.COMMAND.RH

Note: 532175546

$72.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

Note: 532123487

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

Note: 810040700

$

$

Not available

74

Husqvarna 532162295

ELBOW STREET BRASS

Note: 532162295

$34.99

$

In Stock, only 1 left!

0

1

NEEDS DESCRIPTION

Note: (Order parts from engine manufacturer)

$

$

Not available

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

Note: 532182937

$47.99

$

In Stock, only 3 left!

0

22

Husqvarna 532178148

CHOKE CONTROL
(Superseded to 532175441)

$

$

Not available

82

Husqvarna 532188799

VALVE.OIL.DRAIN.GT

Note: 532188799

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

Note: 532149723

$74.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121851

SPARK ARREST

$

$

Not available

12

Husqvarna 532143996

PULLEY ENG VGT ELECT CLUTCH

Note: 532143996

$53.99

$

In Stock, only 1 left!

0

47

Husqvarna 532175288

BUSHING

Note: 532175288

$

$

Not available

26

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

Note: 532124952

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 532175287

BUSHING

Note: 532175287

$

$

Not available

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: 532184362

$6.49

$

In Stock, only 3 left!

0

28

Husqvarna 532124703

HOSE
(Superseded to 532008542)

Note: 532124703

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

Note: 532179335

$341.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

Note: 532126197

$8.99

$

In Stock, only 3 left!

0

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

Note: 532121361

$37.99

$

In Stock, only 1 left!

0

21

Husqvarna 532171875

SCREW
(Superseded to 532189747)

Note: 532171875

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532139277

STEM FUEL TANK

Note: 532139277

$8.99

$

In Stock, only 1 left!

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

Note: 532186054

$

$

Not available

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: 532171877

$7.49

$

In Stock, Qty 6

0
