GTH 2548 (954572134-A) - Husqvarna 48" Garden Tractor (2004-01) ELECTRICAL Parts Diagram

48" Garden Tractor

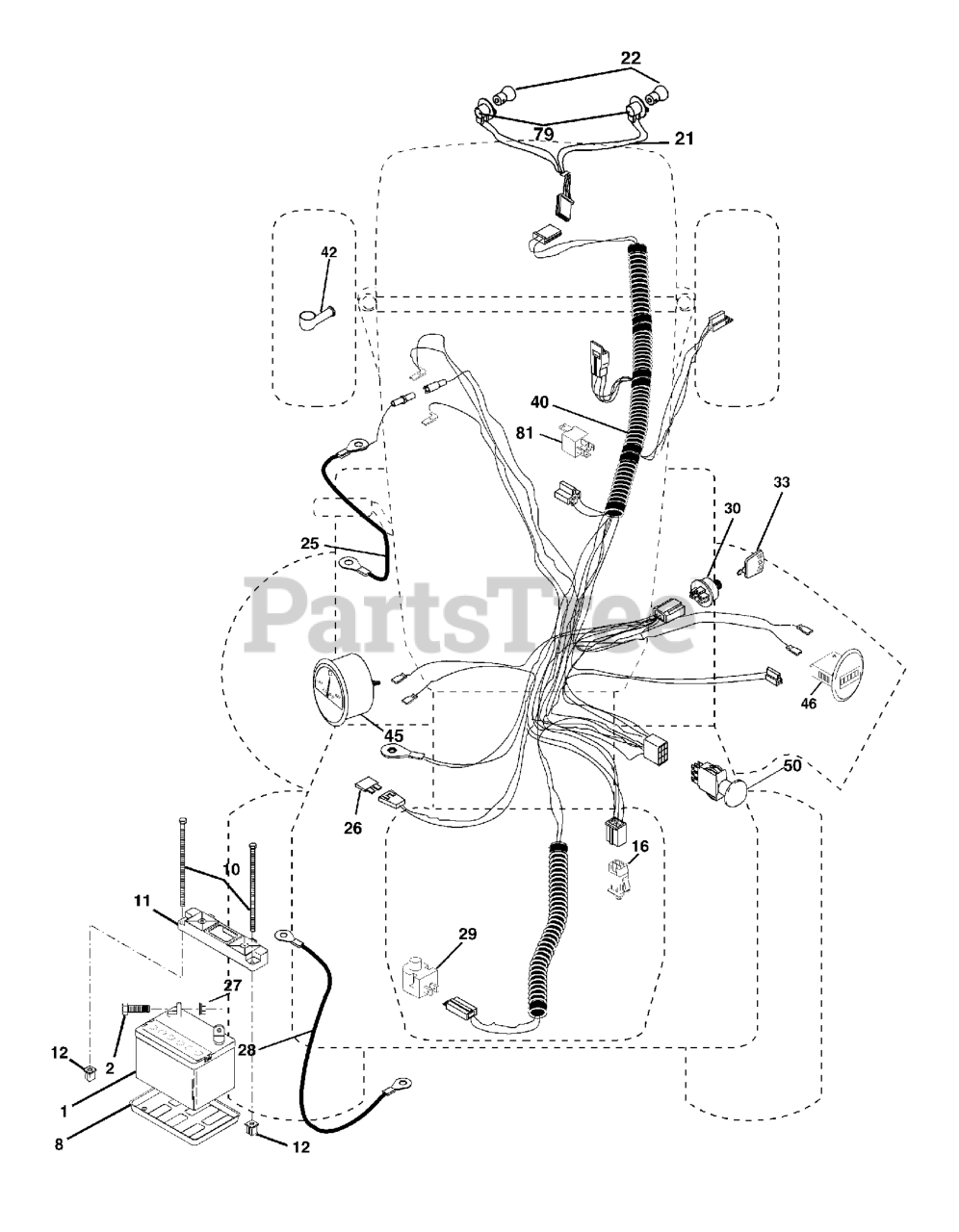

ELECTRICAL Parts Diagram

  • Title
26

Husqvarna 532108824

FUSE HYT

Note: 532108824

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532170697

CABLE, GROUND

Note: 532170697

$24.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

Note: 532121305

$14.99

$

In Stock, only 1 left!

0

42

Husqvarna 532154336

COVER.TERMINAL.RED

Note: 532154336

$8.99

$

In Stock, only 2 left!

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

Note: 532145769

$

$

Not available

46

Husqvarna 532177501

RP HOURMETER SNAP-IN

Note: 532177501

$122.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

Note: 873510400

$4.99

$

In Stock, Qty 15

0

22

Husqvarna 532004152

LIGHTBULB

Note: 532004152

$4.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

Note: 532175242

$18.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

Note: 532144927

$194.99

$

In Stock, only 2 left!

0

25

Husqvarna 532185456

CABLE.4GA.RED.W/16GA.RED.WIRE

Note: 532185456

$36.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

Note: 532150109

$

$

Not available

45

Husqvarna 532177500

RP AMMETER.ROUND.SILVER.DELTA

Note: 532177500

$78.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

Note: 532174651

$28.99

$

In Stock, Qty 8

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

Note: 532140401

$6.99

$

In Stock, Qty 7

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

Note: 532145211

$

$

Not available

30

Husqvarna 532189687

IGNITION SWITCH
(Superseded to 532175566)

Note: 532189687

$26.99

$

In Stock, only 4 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

Note: 532176138

$22.99

$

In Stock, Qty 5

0

81

Husqvarna 532109748

RELAY.ASSY.T

Note: 532109748

$30.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

Note: 532124886

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

Note: 532175688

$44.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532188034

HARNESS.IGNITION.VGT.NO.RELAY

Note: 532188034

$157.99

$

Usually ships in 3-10 days

0
