GTH 2548 (954572134-A) - Husqvarna 48" Garden Tractor (2003-12) Lift Assembly Parts Diagram

48" Garden Tractor

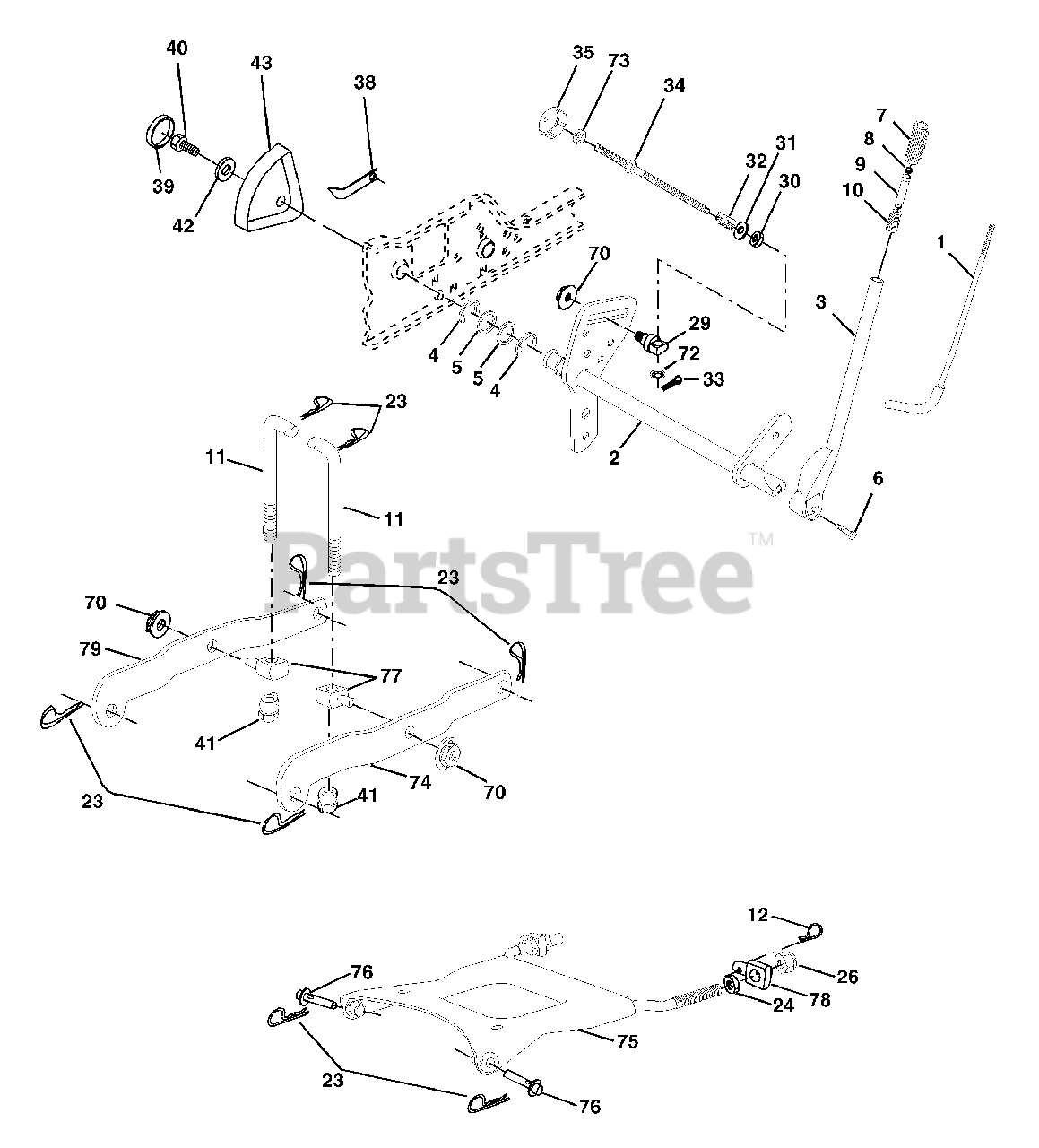

Lift Assembly Parts Diagram

  • Title

1

Husqvarna 532121006

Rod Asm., Lever

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180045

Shaft Asm., Lift Vgt

$

$

Not available

3

Husqvarna 532159189

Lever Asm., Lift Rh

$

$

Not available

4

Husqvarna 812000022

E-Ring Truarc #5133-87

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819292016

Washer 29/32 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 871110624

Bolt, Fin Hex 3/8-16 x 1-1/2

$

$

Not available

7

Husqvarna 532125631

Grip, Handle

$7.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

Plunger, Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532183894

Spring 0.62 OD x 2.125

$

$

Not available

11

Husqvarna 532175375

Link Lift
(Superseded to 532181576)

$

$

Not available

12

Husqvarna 532163552

Retainer, Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532124670

Retainer, Spring

$

$

Not available

24

Husqvarna 873350800

Nut, Jam Hex 1/2-13 unc

$

$

Not available

26

Husqvarna 873800800

Nut, Lock W/Wsh 1/2-13 unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532150233

Trunnion Infin Height

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532110807

Nut, Special

$

$

Not available

31

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, Qty 5

0

32

Husqvarna 532137150

Spring, Compression Inf Hgt

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Husqvarna 532137167

Rod, Adj Lift

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532138057

Knob, Inf 3/8-16 unc

$8.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532155097

Pointer Height Indicator

$

$

Not available

39

Husqvarna 532123935

Plug, Hole Blk. 1.485/1.515 Dia.

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 817060516

Screw 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532175994

Nut, Crownlock 3/8-24
(Superseded to 589464902)

$4.99

$

In Stock, Qty 12

0

42

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532123934

Scale, Indicator Height

$

$

Not available

70

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

73

Husqvarna 873350600

Nut, Hex Jam 3/8-16 unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

74

Husqvarna 532175802

Arm Suspension Rear RH

$103.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532175805

Plate, Asm, Susp, Front

$

$

Not available

76

Husqvarna 532175560

Pin Flange

$13.99

$

In Stock, only 2 left!

0

77

Husqvarna 532176205

Trunnion

$7.99

$

In Stock, Qty 5

0

78

Husqvarna 532175689

Trunnion, Front, Susp

$

$

Not available

79

Husqvarna 532175378

Arm, Suspension Rear LH

$

$

Not available
