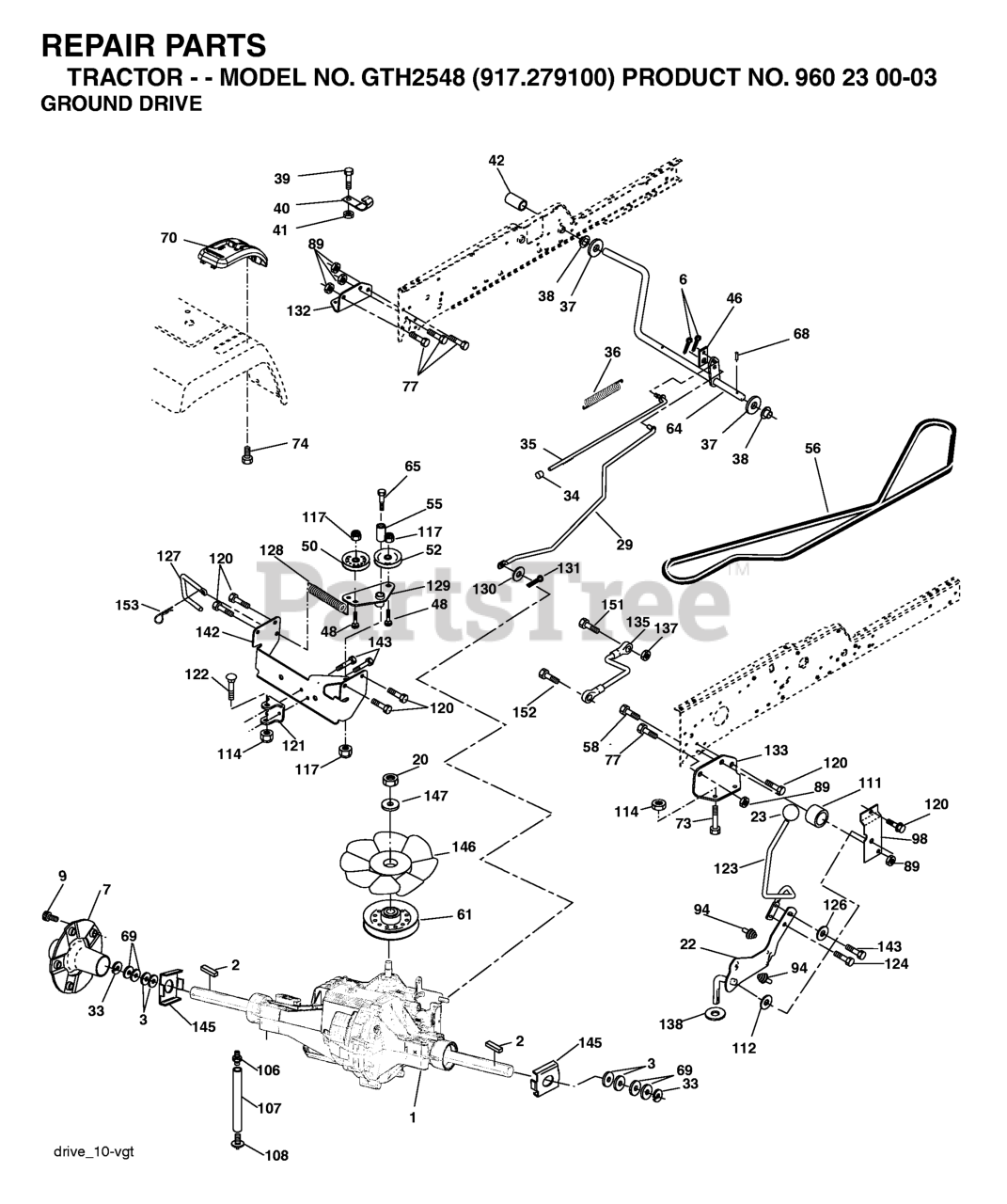

GTH 2548 (917279100) - Husqvarna 48" Garden Tractor (2004-12) DRIVE Parts Diagram

48" Garden Tractor

DRIVE Parts Diagram

  • Title

130

Husqvarna 819131016

WASHER

$6.49

$

In Stock, Qty 5

0

129

Husqvarna 532179473

BRACKET ARM IDLER TENSIONING

$

$

Not available

73

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

52

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

121

Husqvarna 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532178705

BOLT HEX 5/16X1 W/PATCH

$

$

Not available

107

Husqvarna 532154739

LINE.VENT.HYDRO-GEAR

$6.49

$

Usually ships in 3-10 days

0

126

Husqvarna 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 874760724

BOLT.HEX.7/16-14.FINISHED

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532194877

CONSOLE.SHIFT
(Superseded to 532192390)

$8.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532142917

CAP, VENT ASSY
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0

98

Husqvarna 532141004

SHIFT BRACKET

$

$

Not available

147

Husqvarna 532141322

WASHER

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532007070

KEY 1/4 X 2.5

$6.49

$

Usually ships in 3-10 days

0

127

Husqvarna 532177362

LINK CONTROL CLUTCH

$

$

Not available

123

Husqvarna 532192438

ROD.SHIFT

$39.99

$

Usually ships in 3-10 days

0

6

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

112

Husqvarna 532178558

WASHER NYLON HIGH TEMP

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532005142

ROLL PIN STD

$

$

Not available

7

Husqvarna 532140507

HUB ASMBLY

$182.99

$

Usually ships in 3-10 days

0

77

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

56

Husqvarna 532161597

BELT, V GROUND DRIVE

$48.99

$

In Stock, only 2 left!

0

145

Husqvarna 532163168

WASHER.AXLE.FLANGE.HG-3000

$15.99

$

In Stock, only 3 left!

0

35

Husqvarna 532137648

PARKING BRAKE ROD

$11.99

$

In Stock, only 1 left!

0

106

Husqvarna 532142918

O-RING KIT 70110

$

$

Not available

133

Husqvarna 532175468

BRACKET MTG HYDRO 3500 RH VGT

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 873931000

Nut Centerlock 10-24 unc

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532143995

PULLEY, TRANSAXLE

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

143

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

124

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

137

Husqvarna 532124949

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532179613

BOLT.SHLDR.3/8-16

$6.49

$

In Stock, only 2 left!

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

94

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

135

Husqvarna 532177364

LINK ASM CONTROL HYDRO 3500

$

$

Not available

120

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 532176600

BRAKE, ROD

$27.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532176601

SHAFT.ASM.PEDAL.BRAKE

$60.99

$

Usually ships in 3-10 days

0

48

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 812000053

E RING HYT

$7.49

$

In Stock, only 2 left!

0

34

Husqvarna 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532156240

SPACER SHIFT LEVER VGTH

$2.99

$

Usually ships in 3-10 days

0

132

Husqvarna 532175467

BRACKET MTG HYDRO 3500 LH VGT

$3.99

$

Usually ships in 3-10 days

0

151

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

40

Husqvarna 532178575

ACTUATOR INTERLOCK SWITCH

$

$

Not available

114

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

146

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532149412

SPRING DRIVE GROUND

$

$

Not available

38

Husqvarna 532150035

NYLINER

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

138

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

128

Husqvarna 532176624

SPRING DRIVE GRND

$6.49

$

In Stock, only 1 left!

0

55

Husqvarna 532105706

BEARING LT (2 2)

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

89

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

131

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

46

Husqvarna 532145170

RETAINER SPRING

$4.99

$

Usually ships in 3-10 days

0

117

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 874321016

Screw, Fin. #10-24 x 1

$

$

Not available

37

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532007563

WASHER T

$8.99

$

In Stock, only 1 left!

0

142

Husqvarna 532175469

STRAP TORQUE HT-3500

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532180235

LOWER SHIFT LEVER ASM

$

$

Not available
