GTH 250 XP (960210001-00) - Husqvarna Garden Tractor (2005-01) MOWER DECK / CUTTING DECK Parts Diagram

Garden Tractor

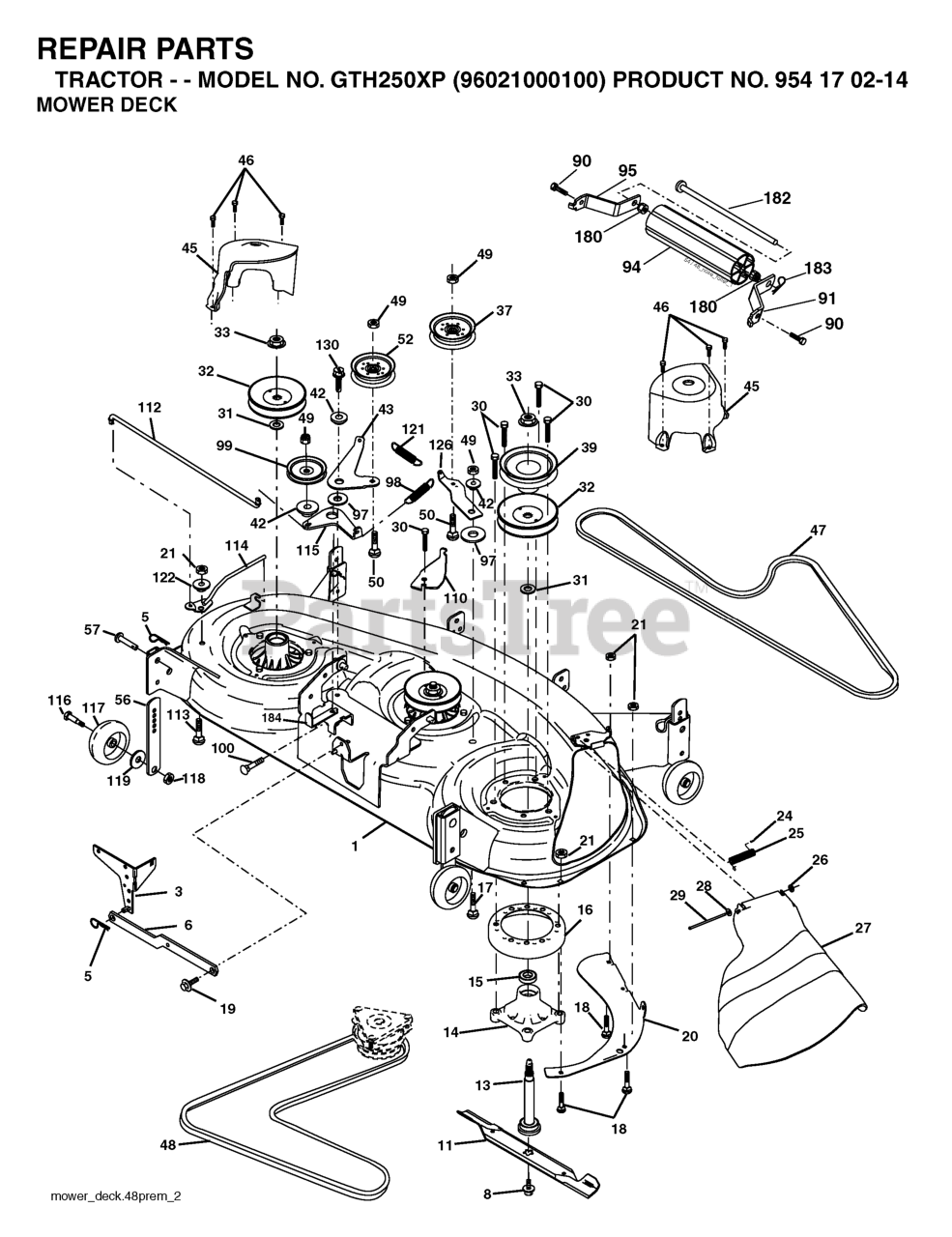

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

3

Husqvarna 532178915

BRACKET ASM.

$

$

Not available

94

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

52

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

27

Husqvarna 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

100

Husqvarna 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

126

Husqvarna 532174372

ARM, IDLER PRIMARY DECK

$

$

Not available

182

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532174387

LEVER, TENSION RELIEF LINK

$

$

Not available

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

122

Husqvarna 532174606

BUSHING, PIVOT TENSION RELIEF

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

110

Husqvarna 532175016

ARM, SPRING SECONDARY

$

$

Not available

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

114

Husqvarna 532174384

LEVER ASM, TENSION RELIEF

$

$

Not available

91

Husqvarna 532180535

BRKT.NOSEROLLER.RH.48"

$

$

Not available

47

Husqvarna 532180808

V-BELT, 48"SECONDARY

$56.99

$

In Stock, Qty 6

0

- -

Husqvarna 532174356

MANDREL ASM
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

98

Husqvarna 532179479

SPRING PRIMARY DRIVE

$

$

Not available

13

Husqvarna 532174360

SHAFT ASM W/LOWER BEARING

$66.99

$

In Stock, only 1 left!

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

130

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

121

Husqvarna 532174371

SPRING.DRIVE.SECONDARY.48".DEC

$

$

Not available

48

Husqvarna 532174368

V-BELT PRIMARY 48"

$56.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

45

Husqvarna 532180806

COVER.MANDREL.DECK.48"

$

$

Not available

14

Husqvarna 532174358

HOUSING, MANDREL 48"

$56.99

$

In Stock, only 3 left!

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

56

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$20.99

$

In Stock, Qty 10

0

32

Husqvarna 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$

$

Not available

99

Husqvarna 532184058

IDLER PULLEY
(Superseded to 532189993)

$66.99

$

In Stock, Qty 10

0

184

Husqvarna 532173979

KEEPER BELT IDLER PLATED

$

$

Not available

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532180534

BRKT.NOSEROLLER.LH.48"

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

115

Husqvarna 532174609

ARM, SPRING TENSION RELIEF

$5.99

$

In Stock, only 1 left!

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

17

Husqvarna 872110610

BOLT
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

180

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$39.99

$

In Stock, Qty 6

0

90

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532174373

ARM, IDLER SECONDARY

$

$

Not available

- -

Husqvarna 532181579

DECK ASM SVC 48" ELE.HD/HP ADJ

$

$

Not available

1

Husqvarna 532180358

DECK WELDMENT
(Superseded to 532184233)

$

$

Not available

97

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

113

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0
